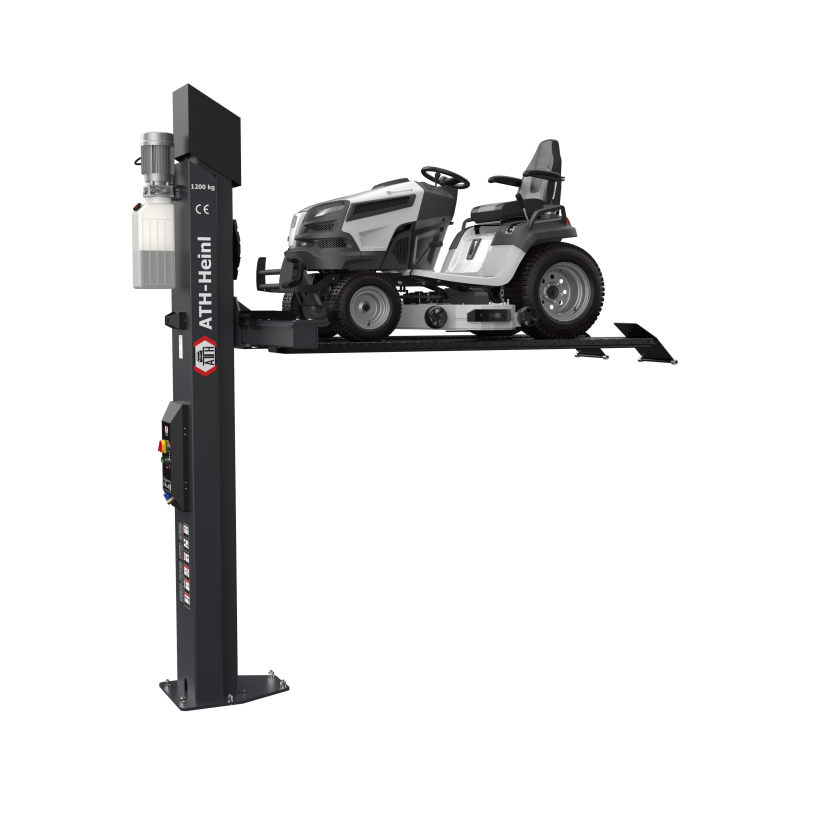

ATH Single Lift® 12PL
Experience every detail – rotate, zoom and place the model in your real environment with AR.
The ATH Single Lift® 12PL is an electrohydraulic single-post lift with a 1,200 kg capacity, a quick-lift power unit and a load-dependent lowering function. Designed for stationary use, it features a reinforced column and a robust platforms design. Extra-long, adjustable platforms enable multifunctional vehicle pick-up. Optional wheel forks expand the range of applications and provide flexible solutions for everyday workshop use
Product highlights
Electro-hydraulic 1-post lift with quick lift unit and load-dependent lowering function
Central control unit with energy set (230V / compressed air / 12V)
Stationary use, with reinforced column and rail construction
Safety Control: Electromagnetic release of the safety locks automatically with lifting and lowering
Safety Lock: ability to lock the load on to the safety mechanism
Multifunctional mounting via sliding, extra long rails and wheel forks (optional)
Ideally suited for repairing quads, lawn mowers and small tractors
Product details
| Rated load capacity | 1200 kg |
|---|---|
| Lifting height max. | 1930 mm |
| Overall width | 1900 mm |
| Overall height | 3140 mm |
| Support arms parts | 1 St. |
| Driving power | 3 kW |
| Lifting/Lowering time | 20 | 20 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | C 25/30 2500 x 2000 x 200 |
| Color | RAL 7016 / RAL 9005 |
