ATH Single Lift® 25M
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.

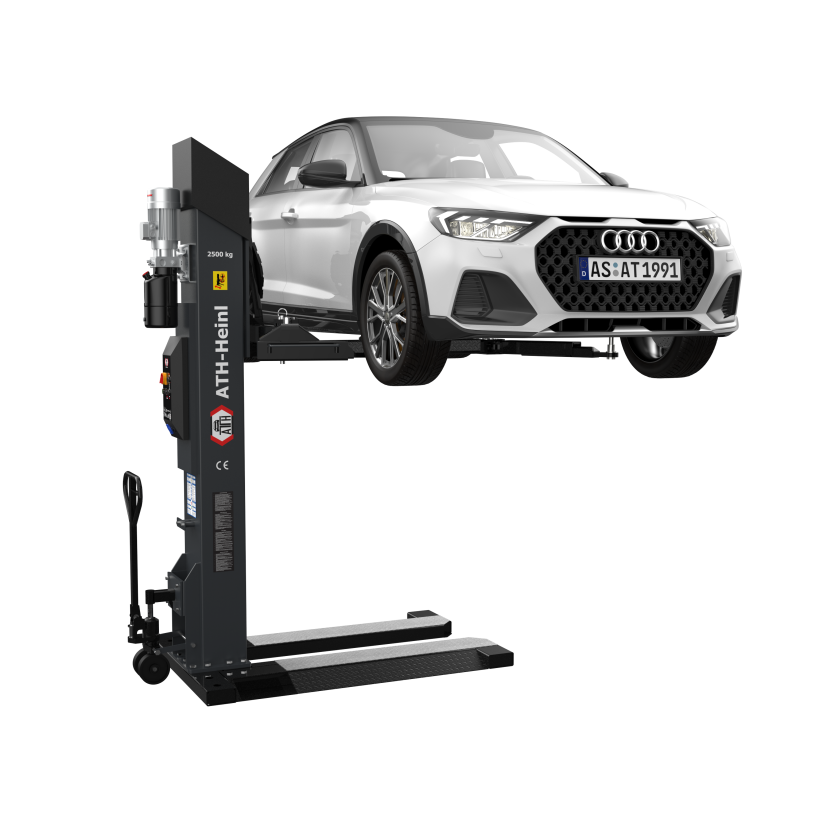

The ATH Single Lift® 25M is an electrohydraulic single-post lift with a 2,500 kg capacity, a quick-lift power unit and a load-dependent lowering function. It can be used mobile or stationary—either with a high-quality drive set or fixed floor anchoring. Telescopic lifting arms provide flexible and safe vehicle pick-up, making the ATH Single Lift® 25M the ideal solution for space-saving, efficient work in modern workshops
Product highlights
Electro-hydraulic 1-post lift with quick lift unit and load-dependent lowering function
Central control unit with energy set (230V / 12V)
Mobile & stationary use with the help of the high-quality wheels or attachment to the floor
Safety Control: Electromagnetic safety catches that automatically unlock when lifting and lowering
Safety Lock: ability to lock the load on to the safety mechanism
Multifunctional mounting via double telescopic support arms and support plates
Product details
| Rated load capacity | 2500 kg |
|---|---|
| Lifting height max. | 1870 mm |
| Overall width | 2175 mm |
| Overall height | 2912 mm |
| Support arms parts | 2 St. |
| Driving power | 3 kW |
| Lifting/Lowering time | 60 | 60 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | C20/25 200 mm |
| Color | RAL 7016 / RAL 9005 |
