ATH Single Lift® 35M
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.

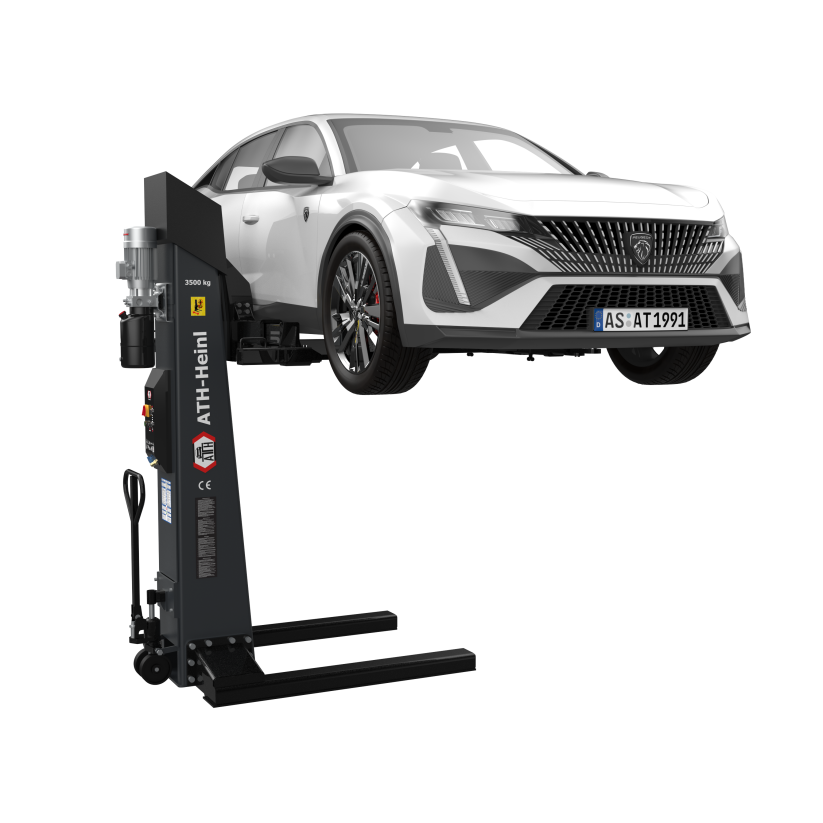

The ATH Single Lift® 35M is an electrohydraulic single-post lift with a 3,500 kg capacity, a quick-lift power unit and a load-dependent lowering function. Thanks to the high-quality drive set, it is mobile and requires no floor anchoring. The multifunctional pick-up system with pull-out crossbeam, double-telescopic lifting arms and lifting pads including 4 X 80 mm extensions enables flexible vehicle lifting and maximum efficiency in everyday workshop use.
Product highlights
Electro-hydraulic 1-post lift with quick lift unit and load-dependent lowering function
Central control unit with energy set (230V / 12V)
Mobile use with the help of the high-quality wheel set, no attachment to the floor
Safety Control: Electromagnetic safety locks that automatically unlock with lifting and lowering
Safety Lock: ability to lock the load on to the safety mechanism
Multifunctional mounting via the pull-out crossbeam, double telescopic support arms and support plates including support plate extension 4 x 80mm
Product details
| Rated load capacity | 3500 kg |
|---|---|
| Lifting height max. | 1853 mm |
| Overall width | 2215 mm |
| Overall height | 2725 mm |
| Support arms parts | 3 St. |
| Driving power | 3 kW |
| Lifting/Lowering time | 45 | 45 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | C20/25 200 mm |
| Color | RAL 7016 / RAL 9005 |
