ATH Bike Lift® 7F
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.

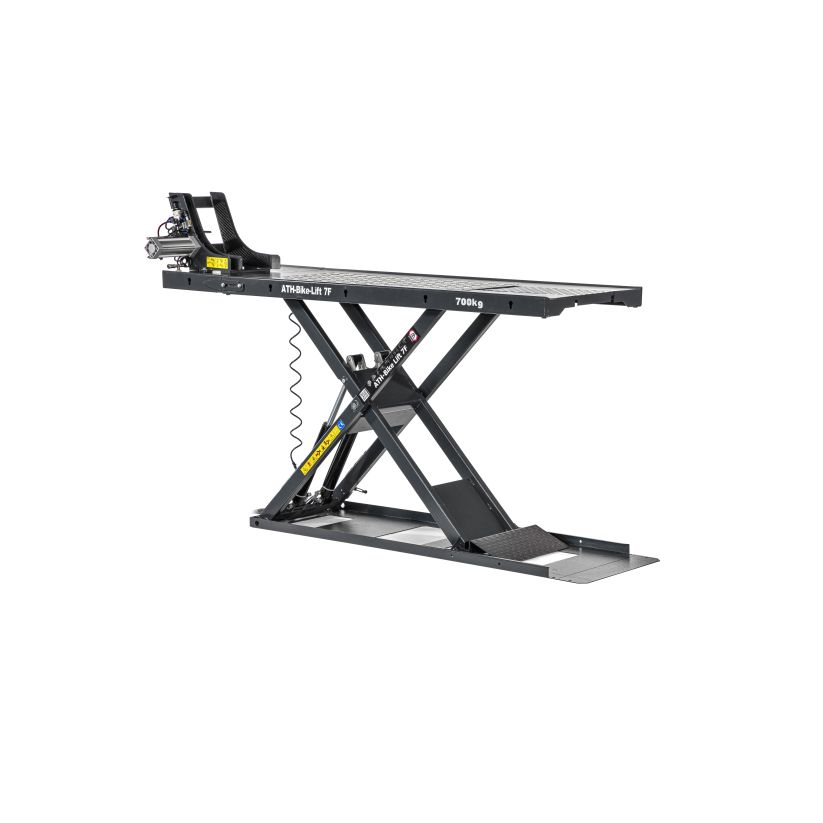

The ATH Bike Lift® 7F is a high-quality motorcycle lift with a 700 kg capacity and hydraulic drive, designed to require minimal maintenance. The powerful 230 V (C16A) hydraulic power unit delivers reliable lifting performance for daily workshop use. A removable center plate allows unobstructed access to the front and rear wheels. The pneumatic wheel clamp with a practical folding function ensures secure fixation and comfortable working on motorcycles.
Product highlights
High-quality and robust motorcycle lift with hydraulic drive, almost maintenance-free
Powerful hydraulic unit (230V / C16A)
Removable plate for free work on the rear and front tires
Protective hose over the hydraulic lines
With the automatic ramp retraction function during lifting, tripping hazards are avoided
Fixed aluminium plate specially designed to hold mini motorcycle stands
Emergency lowering system for lowering in the event of a power failure
Pneumatic wheel holder included for ATH-Bike Lift 7F and 7QF
Optional mini motorcycle stand: Item no.: 670025
Product details
| Rated load capacity | 700 kg |
|---|---|
| Lifting height max. | 1200 mm |
| Overall width | 870 mm |
| Overall height | 455 mm |
| Driving power | 1 kW |
| Lifting/Lowering time | 15 | 15 s |
| Power supply voltage | 230V / C16A |
| Color | RAL 7016 / RAL 9005 |
| Drive-on-height | 80 mm |
