ATH Comfort Lift 2.50
Availability:
In stock
SKU
622216.10
- Electro-hydraulic 2-post lift with quick lift unit and load-dependent lowering function

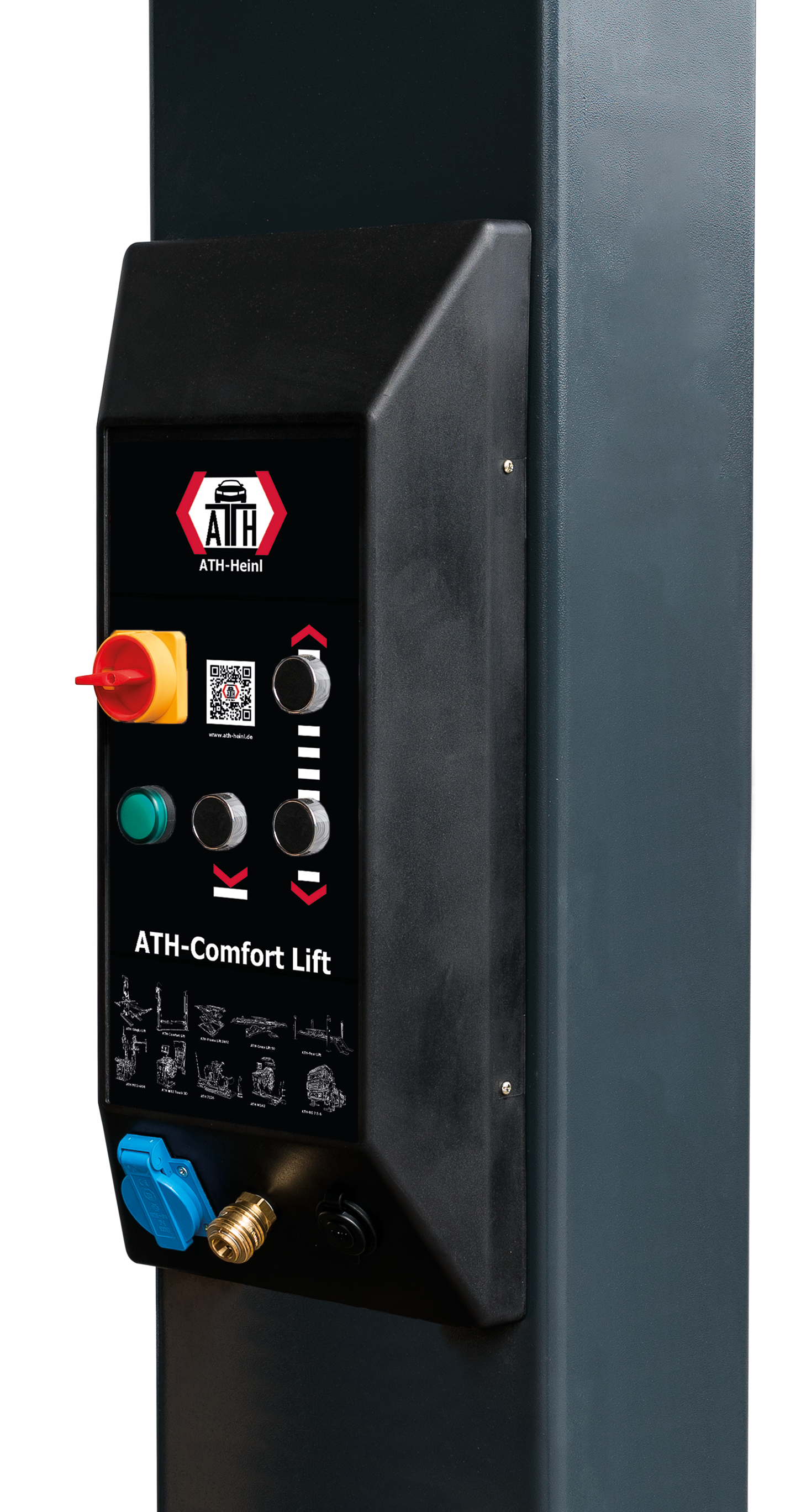

- Two control units for flexible use on both columns
- Energy set (230V / compressed air / 12V) on the main page
- Safety Control: Electromagnetic safety locks that automatically unlock with lifting and lowering
- Safety Lock: ability to lock the load on to the safety mechanism

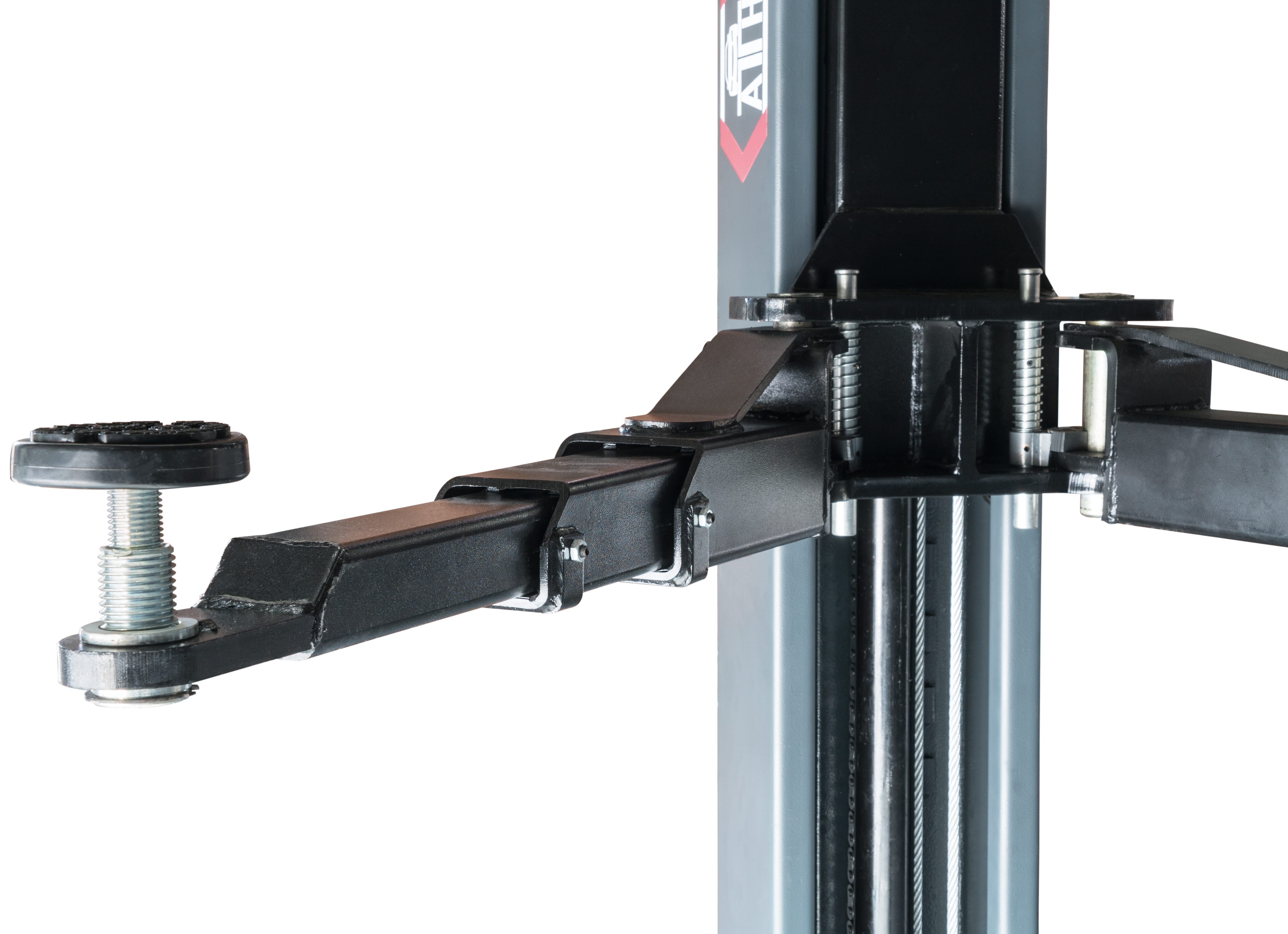

- Multifunctional mounting via 3-part support arms and double telescopic support plates

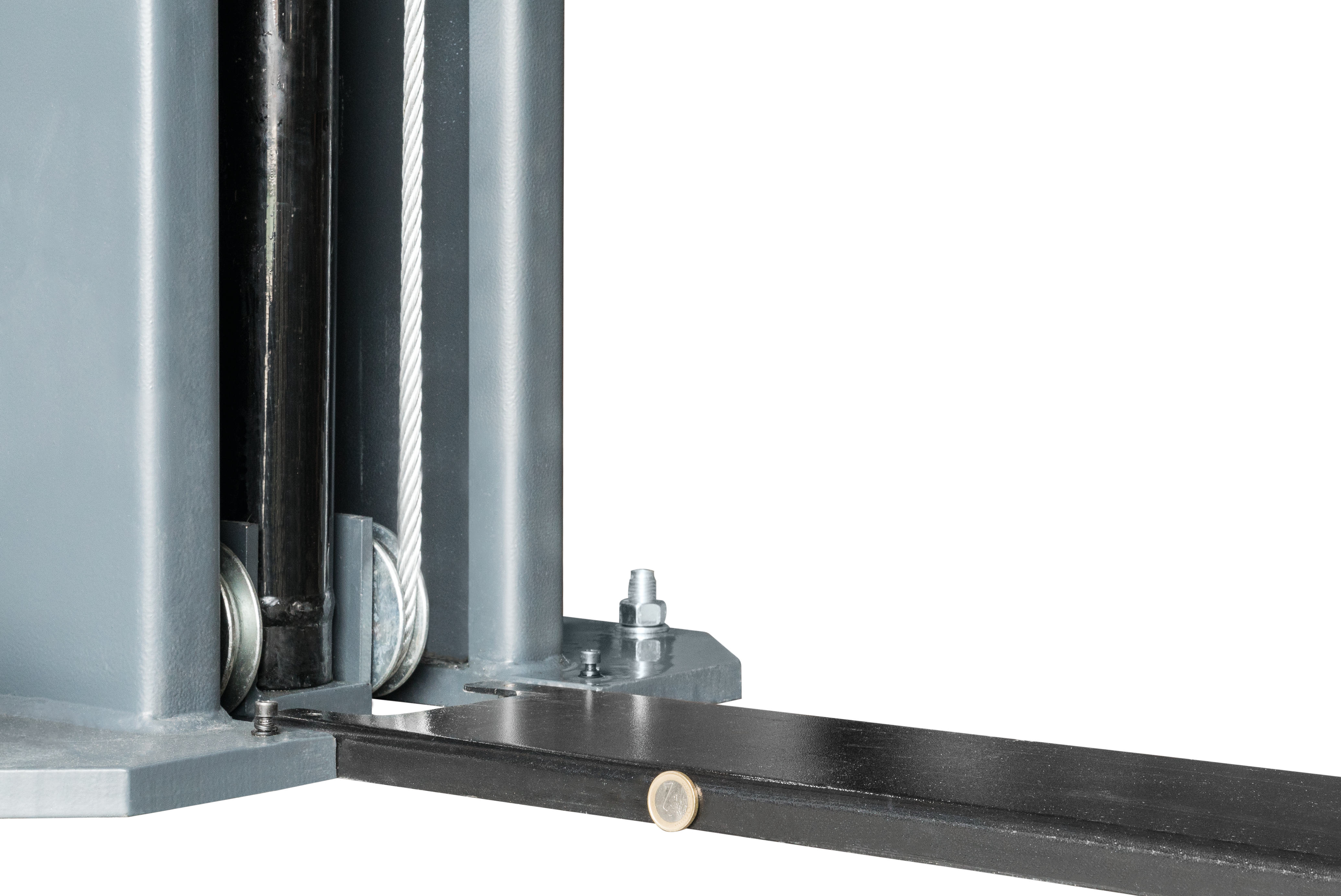

- Very low drive-over plate (height = 20mm) to protect the hydraulic hose and synchronization ropes
| Rated load capacity | 5 t |
|---|---|
| Lifting height max. | 2.000 mm |
| Drive-through width | 3.030 mm |
| Overall width | 4.050 mm |
| Overall height | 3.165 mm |
| Support arms parts | 3 |
| Driving power | 3 kW |
| Lifting/Lowering time | ca. 40 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C25/30 4.500 x 2.000 x 220 mm |
