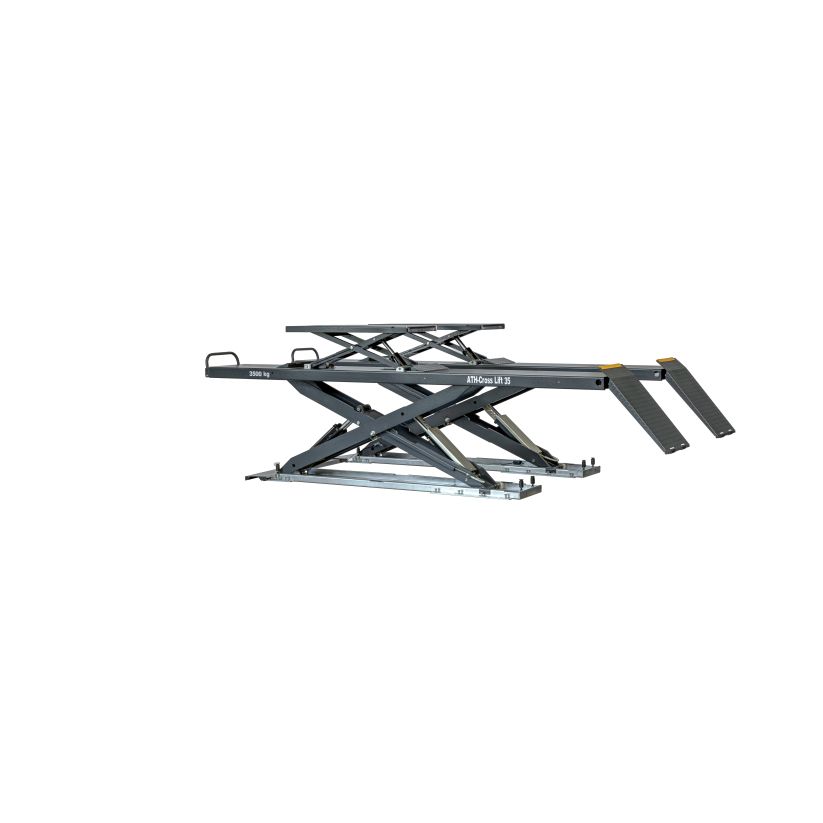

ATH Cross Lift® 35 OG
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.
The ATH Cross Lift® 35 OG is a high-quality Drive one platform lift requiring minimal maintenance, with a 3,500 kg capacity and hydraulic drive. The integrated free-wheel lift with a 3.5 t capacity and 430 mm lifting height enables efficient service and repair work. Pneumatic release of the safety locks, CE stop and an acoustic lowering signal ensure maximum safety. Ideal for reception, repair and testing stations for driver assistance systems, and optionally for wheel alignment.
Product highlights
High-quality and robust hydraulic drive platform scissor lift with minimal maintenance requirements
Powerful hydraulic unit with load-dependent lowering speed controller
With free-wheel lift (loading capacity: 3.5 t, lifting height: 430 mm), optional wheel alignment kit with recesses for turning plates in the front and mechanically lockable sliding plates in the back
Pneumatic unlocking of the safety locks, CE-Stop and lowering acoustic signal
Emergency lowering system for lowering in the event of a power failure, safety synchronization monitoring via light barrier
Ideally suited for inspection, repair and test stations for driver assistance systems, optionally for wheel alignment

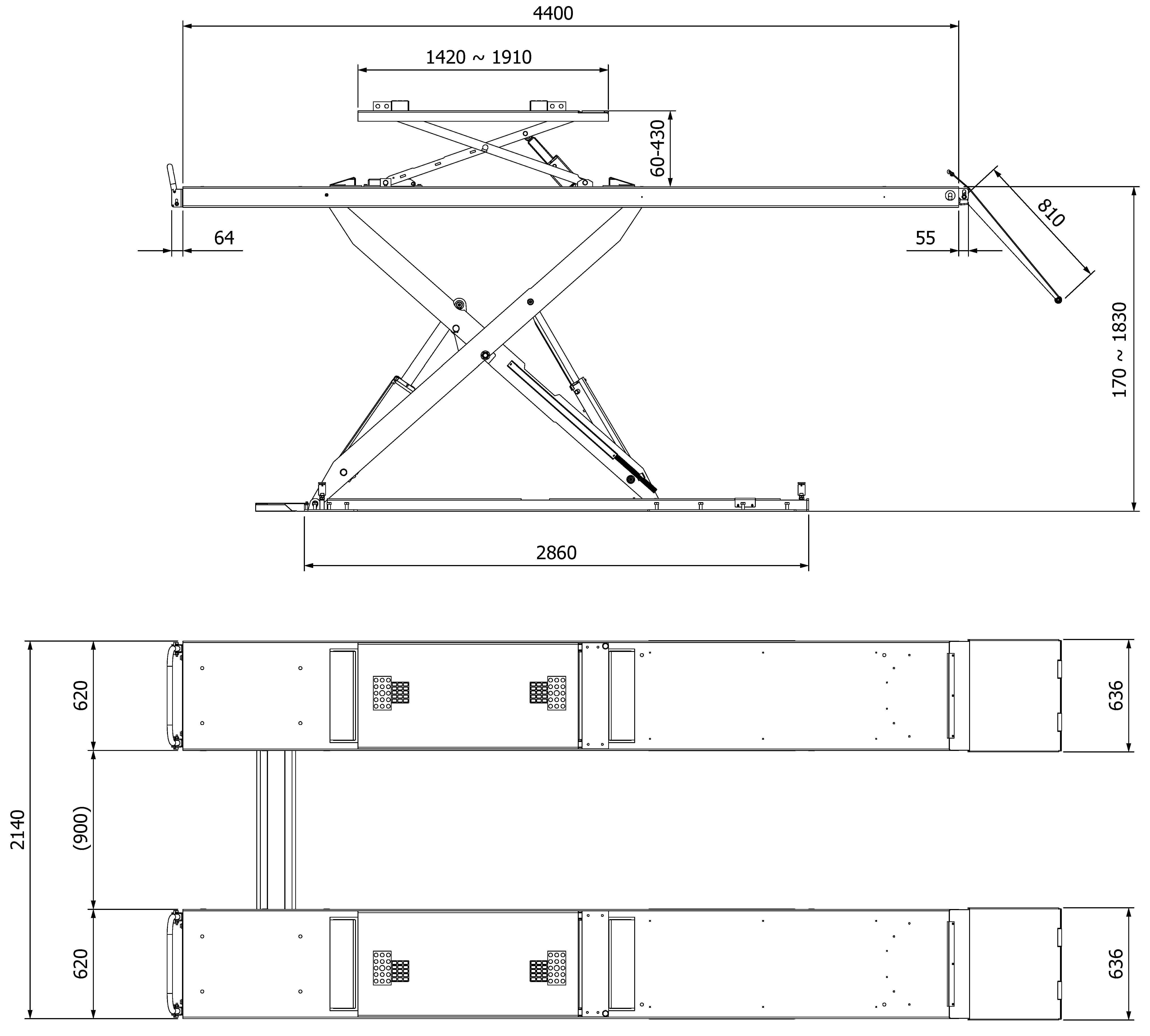

Product details
| Rated load capacity | 3500 kg |
|---|---|
| Lifting height max. | 1830 mm |
| Overall width | 2140 mm |
| Overall height | 2260 mm |
| Driving power | 2,6 kW |
| Lifting/Lowering time | 60 | 60 s |
| Power supply voltage | 3x 400V / C16A |
| Color | RAL 7016 / RAL 9005 |
| Drive-on-height | 170 mm |
| Total platform length | 4400 mm |
