ATH Cross Lift® 35 UGA
Experience every detail – rotate, zoom and place the model in your real environment with AR.

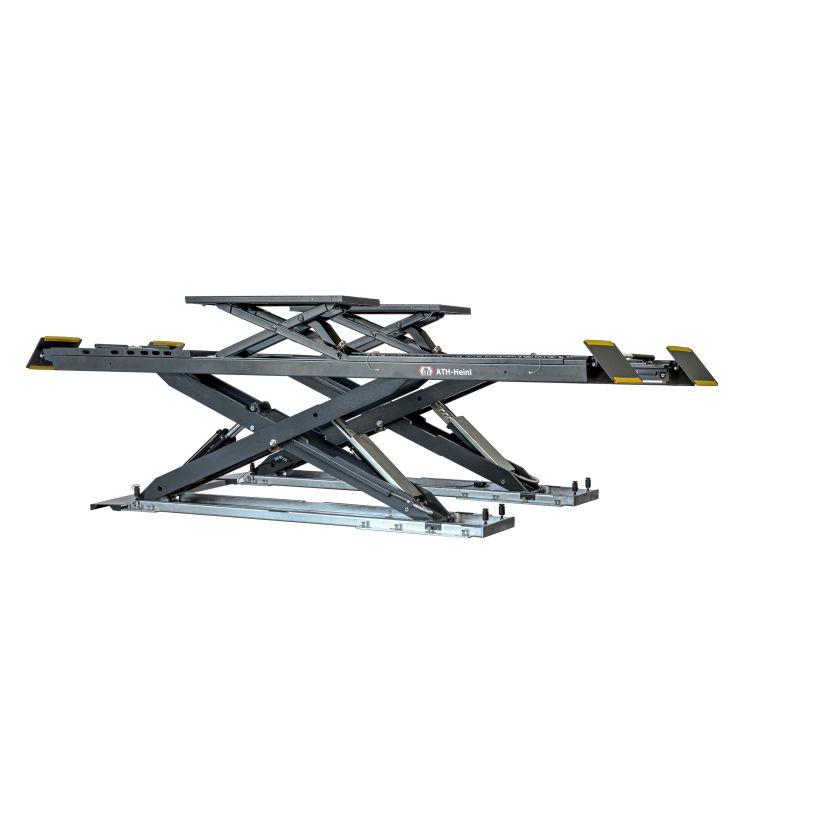

The ATH Cross Lift® 35 UGA is a high-quality, robust Drive one platform lift with hydraulic drive and low-maintenance operation, designed for in-ground installation. The integrated free-wheel lift offers a 3.5 t capacity and a 430 mm lifting height. The included wheel alignment kit features recesses for front turntables and mechanically lockable rear slip plates. Pneumatic safety lock release, CE stop, acoustic lowering signal, emergency lowering in case of power failure and photoelectric synchronization monitoring ensure a high level of safety.
Product highlights
High-quality and robust hydraulic drive platform scissor lift with minimal maintenance requirements
Powerful hydraulic unit with load-dependent lowering speed controller
With free-wheel lift (loading capacity: 3.5 t, lifting height: 430 mm), including wheel alignment kit with recesses for turning plates in the front and mechanically lockable sliding plates in the back
Pneumatic unlocking of the safety locks, CE-Stop and lowering acoustic signal
Emergency lowering system for lowering in the event of a power failure, safety synchronization monitoring via light barrier
Ideally suited for inspection, repair and test stations for driver assistance systems and wheel alignment
Product details
| Rated load capacity | 3500 kg |
|---|---|
| Lifting height max. | 1830 mm |
| Overall width | 2140 mm |
| Overall height | 2260 mm |
| Driving power | 2,6 kW |
| Lifting/Lowering time | 60 | 60 s |
| Power supply voltage | 3x 400V / C16A |
| Color | RAL 7016 / RAL 9005 |
| Total platform length | 4400 mm |
| Installation depth | 245 mm |
