ATH Cross Lift® 40 OGA
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.
The ATH Cross Lift® 40 OGA is a Drive one platform lift requiring minimal maintenance, with a 4,000 kg capacity, hydraulic drive and included on-ground installation kit. Recesses for turntables, mechanically lockable slip plates and a free-wheel lift (4 t / 450 mm) support service and wheel alignment. Rails for an optional Rolling Jack, plug-in cross connections and metal protection bars with switch for optional 24 V LED lighting complete the equipment. Pneumatic safety locks, CE stop and an acoustic lowering signal.
Product highlights
HHigh-quality and robust hydraulic drive platform scissor lift with minimal maintenance requirements
Powerful hydraulic unit with load-dependent lowering valve
Suitable for mounting on the ground with the above-ground kit

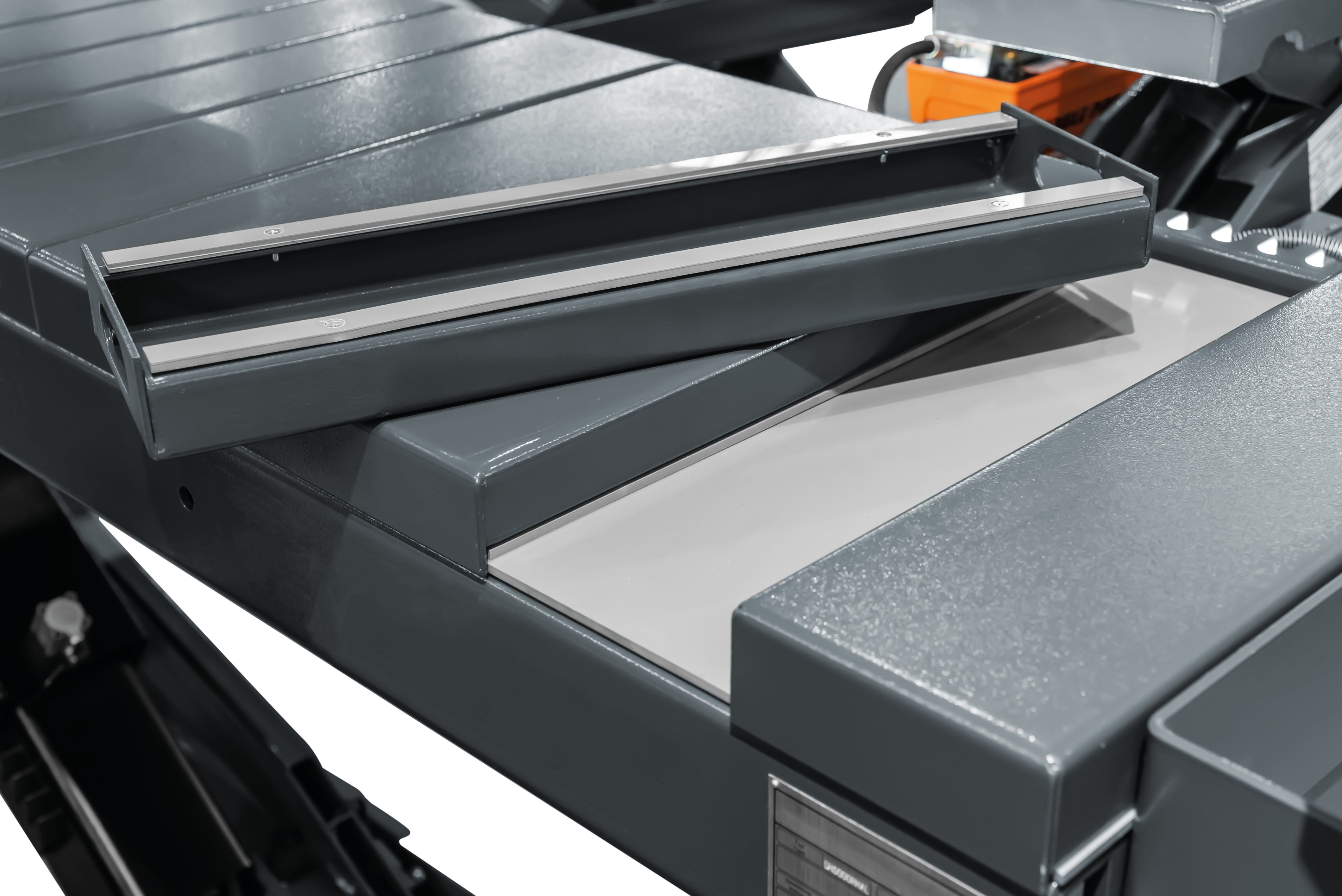

With recesses for turntables at the front, mechanically lockable swing plates at the rear, wheel-free jack (load capacity: 4 t, lifting height: 450 mm), running rails for the optional axle-free jack, plug-in cross connections, incl. metal guard and switch for the optional 24V LED lighting
Pneumatic unlocking of the safety catches, CE stop and signal tone when lowering
Emergency lowering system for lowering in the event of a power failure, synchronisation monitoring via light barrier
Ideally suited for reception, wheel alignment, repair and test station for headlight and driver assistance systems
Product details
| Rated load capacity | 4000 kg |
|---|---|
| Lifting height max. | 2160 mm |
| Overall width | 2200 mm |
| Overall height | 290 mm |
| Driving power | 3,5 kW |
| Lifting/Lowering time | 70 | 70 s |
| Power supply voltage | 3x 400V / C16A |
| Color | RAL 7016 / RAL 9005 |
| Drive-on-height | 295 mm |
| Total platform length | 4230 mm |
