ATH Cross Lift® 50 Plus OGA
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.

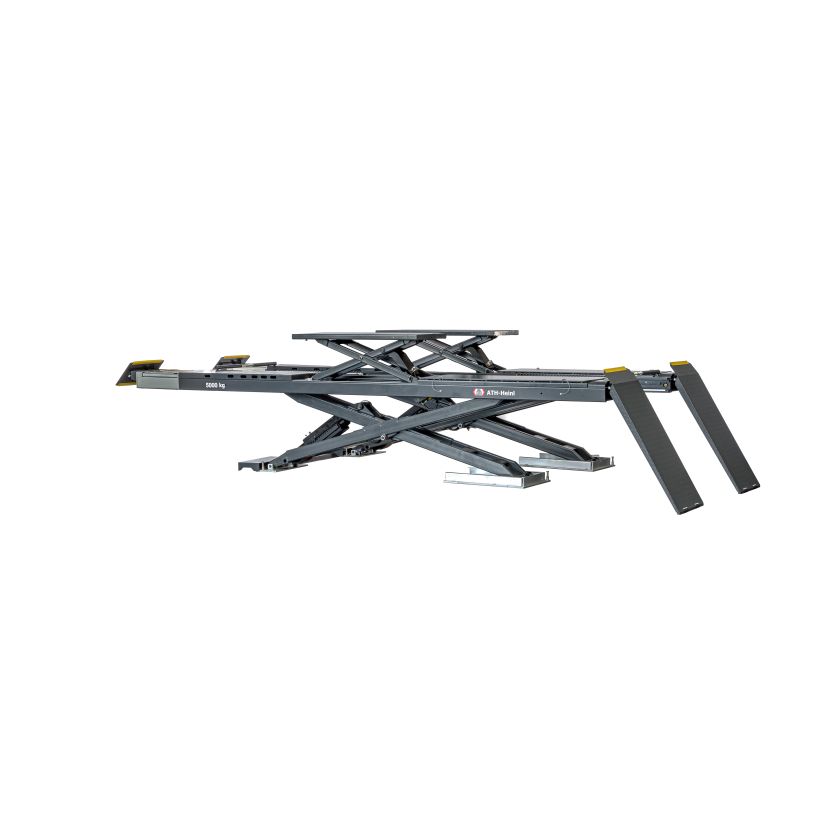

The ATH Cross Lift® 50 Plus OGA is a high-quality Drive one platform lift with a 5,000 kg capacity and hydraulic drive, designed to require minimal maintenance. It features recesses for turntables, pneumatically lockable slip plates, extended platforms with joint play tester, and a free-wheel lift with a 4 t capacity and 450 mm lifting height. Pneumatic safety locks, CE stop, acoustic lowering signal and 24 V LED lighting make it ideal for reception, wheel alignment, repair and inspection bays.
Product highlights
High-quality and robust hydraulic drive platform scissor lift with minimal maintenance requirements
Powerful hydraulic unit with load-dependent lowering valve
Suitable for mounting on the ground with the above-ground kit
With recesses for turntables at the front, pneumatically lockable swing plates at the rear, extension of the rails incl. joint play tester, wheel-free jack (load capacity: 4 t, lifting height: 450 mm), running rails for the optional axle-free jack, plug-in cross connections, 24V LED lighting incl. metal guard and switch
Pneumatic unlocking of the safety catches, CE stop and signal tone when lowering
Emergency lowering system for lowering in the event of a power failure, synchronisation monitoring via light barrier
Ideally suited for reception, wheel alignment, repair and test station for headlight and driver assistance systems
Product details
| Rated load capacity | 5000 kg |
|---|---|
| Lifting height max. | 2160 mm |
| Overall width | 2200 mm |
| Overall height | 295 mm |
| Driving power | 3,5 kW |
| Lifting/Lowering time | 70 | 70 s |
| Power supply voltage | 3x 400V / C16A |
| Color | RAL 7016 / RAL 9005 |
| Drive-on-height | 295 mm |
| Total platform length | 5600 mm |
