ATH Cross Lift® 50 Plus UGA
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.

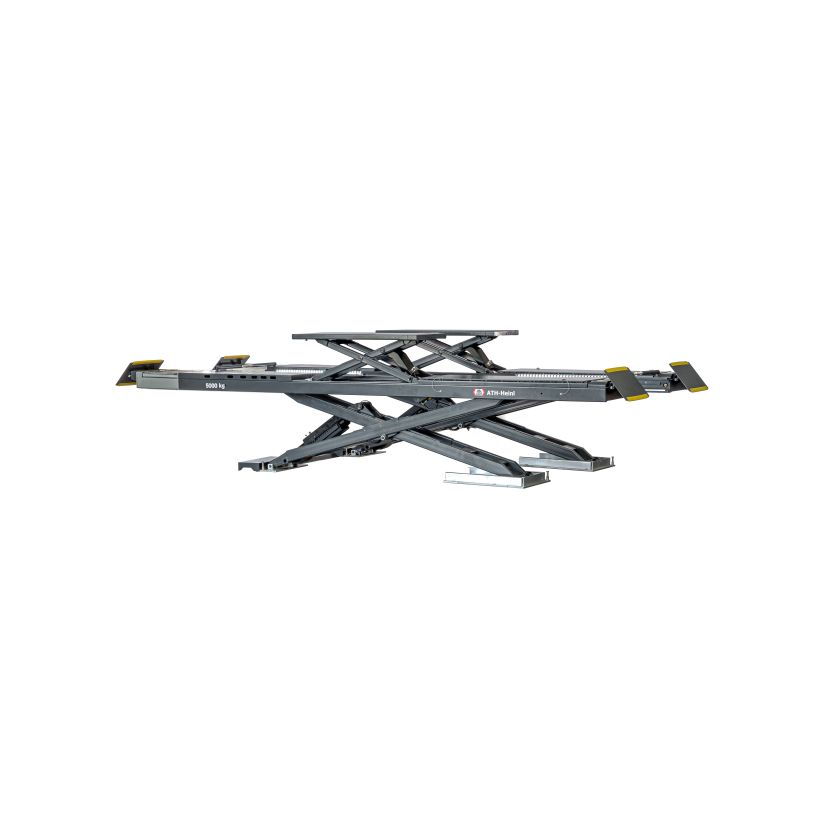

The ATH Cross Lift® 50 Plus UGA is a high-quality Drive one platform lift with a 5,000 kg capacity and hydraulic drive, designed to require minimal maintenance. It features recesses for turntables, pneumatically lockable slip plates, extended platforms with joint play tester, and a free-wheel lift with a 4 t capacity. Pneumatic safety locks, CE stop, acoustic lowering signal and integrated 24 V LED lighting make it ideal for reception, wheel alignment, repair, and testing bays for headlight and driver assistance systems.
Product highlights
High-quality and robust hydraulic drive platform scissor lift with minimal maintenance requirements

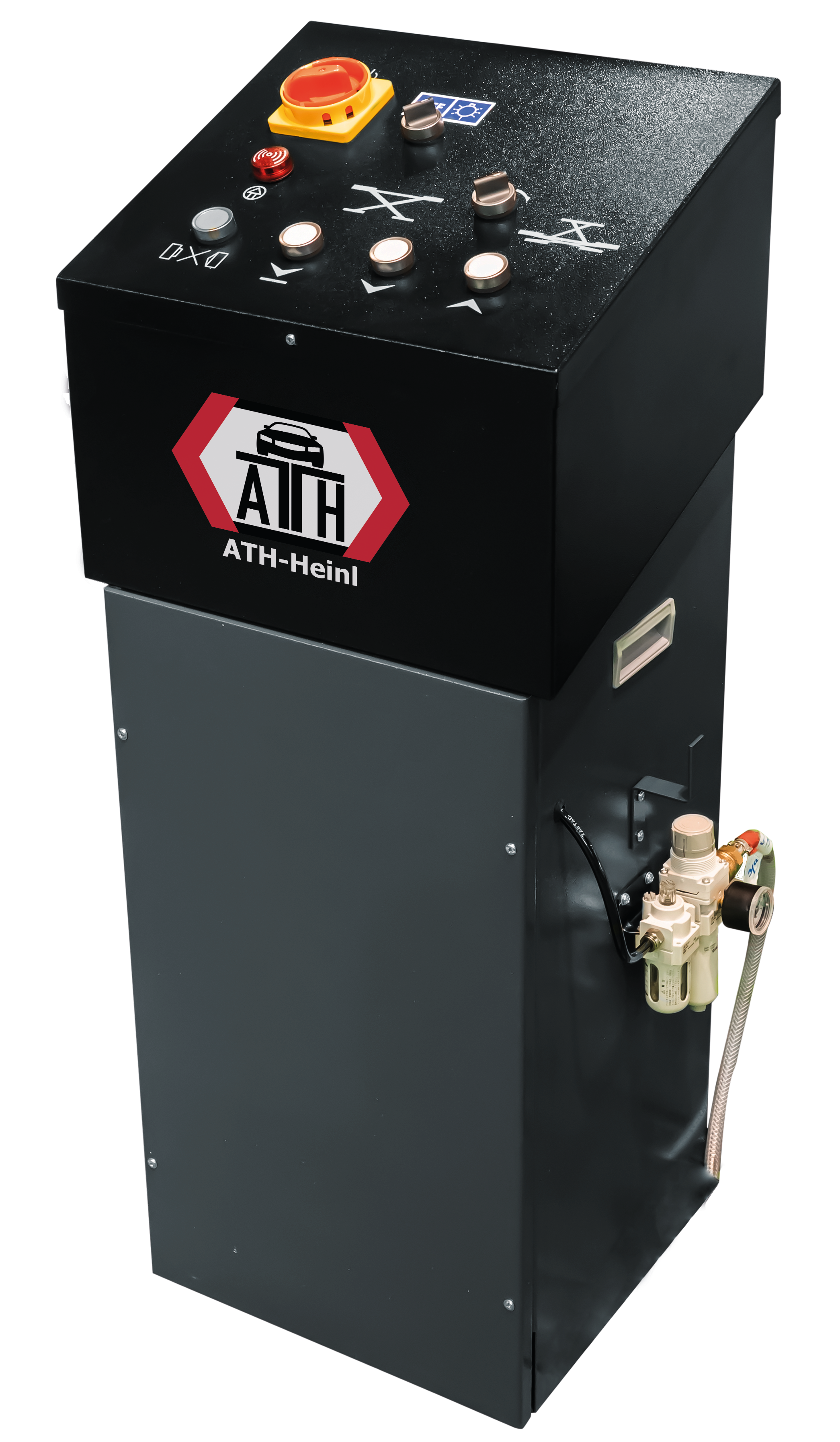

Powerful hydraulic unit with load-dependent lowering valve
Suitable for floor-level installation and installation on the floor with the optional on ground kit
With recesses for rotating plates at the front, pneumatically lockable oscillating plates at the rear, platform extension including joint play tester, wheel-free jack (load capacity: 4 t, lifting height: 450 mm), side rails for the optional axle jack, removable cross connections, 24V LED lighting including metal protection bar and switch
Emergency lowering system for lowering in the event of a power failure, synchronization monitoring via safety light barrier
Ideally suited for inspection, wheel alignment, repairs and test stations for headlamp and driver assistance systems
Product details

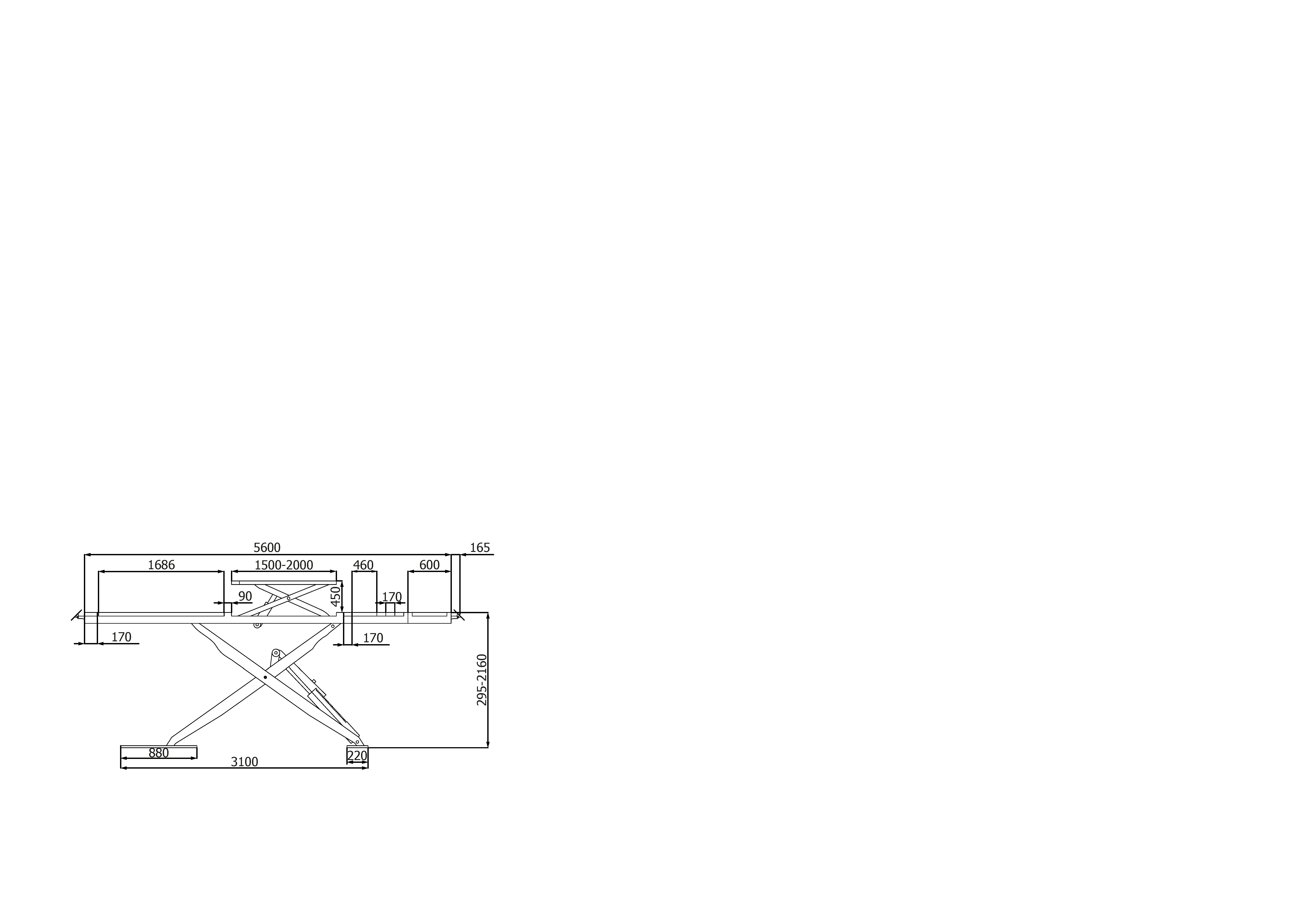

| Rated load capacity | 5000 kg |
|---|---|
| Lifting height max. | 2160 mm |
| Overall width | 2200 mm |
| Overall height | 295 mm |
| Driving power | 3,5 kW |
| Lifting/Lowering time | 70 | 70 s |
| Power supply voltage | 3x 400V / C16A |
| Color | RAL 7016 / RAL 9005 |
| Total platform length | 5600 mm |
| Installation depth | 295 mm |
