ATH Cross Lift® 50 UGA
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.

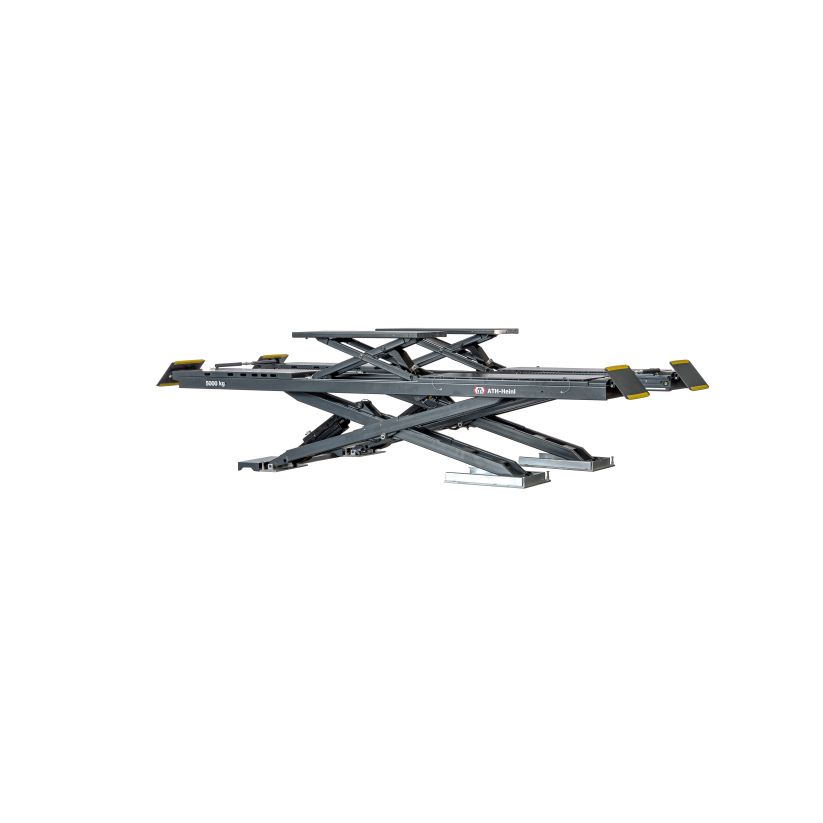

The ATH Cross Lift® 50 UGA is a high-quality Drive one platform lift requiring minimal maintenance, with a 5,000 kg capacity and hydraulic drive. Recesses for turntables, mechanically lockable slip plates and a free-wheel lift with 4 t capacity and 450 mm lifting height enable versatile applications. Rails for an optional Rolling Jack and plug-in cross connections complete the equipment. Pneumatic safety locks, CE stop and an acoustic lowering signal make it ideal for reception, repair, wheel alignment and testing stations for driver assistance systems.
Product highlights
High-quality and robust hydraulic drive platform scissor lift with minimal maintenance requirements
Powerful hydraulic unit with load-dependent lowering valve
Suitable for floor-level installation and installation on the floor with the optional on ground kit
With recesses for rotating plates at the front, mechanically lockable oscillating plates at the rear, Wheel-free jack (load capacity: 4 t, lifting height: 450 mm), side rails for the optional axle-free jack, removable cross connections, including metal protection bar and switch for the optional 24V LED lighting
Emergency lowering system for lowering in the event of a power failure, synchronization monitoring via safety light barrier
Ideally suited for inspection, wheel alignment, repairs and test stations for headlamp and driver assistance systems
Product details
| Rated load capacity | 5000 kg |
|---|---|
| Lifting height max. | 2160 mm |
| Overall width | 2220 mm |
| Overall height | 295 mm |
| Driving power | 3,5 kW |
| Lifting/Lowering time | 70 | 70 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | 5310 x 2240 X 310 C 25/30 |
| Color | RAL 7016 / RAL 9005 |
| Total platform length | 5000 mm |
| Installation depth | 295 mm |
