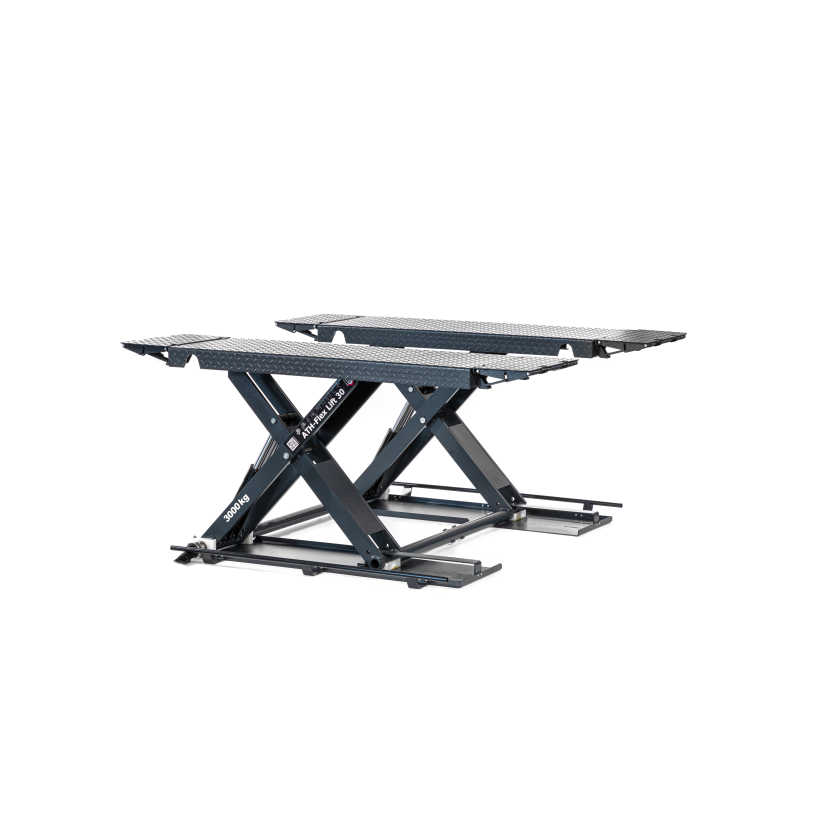

ATH Flex Lift® 30
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.
The ATH Flex Lift® 30 is a high-quality mid rise lift with a 3,000 kg capacity and hydraulic drive, designed to require minimal maintenance. The powerful 230 V (C16A) hydraulic power unit ensures efficient daily workshop operations. With an extremely low drive-over height of approx. 105 mm, it is ideal for vehicles with low ground clearance. Mechanical synchronization via an underside cross connection and a double hydraulic lowering lock provide maximum safety—without safety locks or compressed air.
Product highlights
High-quality and robust short-stroke lift with hydraulic drive, almost maintenance-free
Powerful hydraulic unit (230V / C16A)
Very low drive-over height of only approx. 105 mm
No electrical limit switches, protective hose over the hydraulic lines
Mechanical synchronization through cross connection and double hydraulic lines
Full lifting power from the lowest point
Emergency lowering system for lowering in the event of a power failure
Ideally suited for paint and body shops, repairs, brake and tire services
Product details
| Rated load capacity | 3000 kg |
|---|---|
| Lifting height max. | 960 mm |
| Overall width | 1952 mm |
| Overall height | 182 mm |
| Driving power | 2,2 kW |
| Lifting/Lowering time | 20 | 20 s |
| Power supply voltage | 230V / C16A |
| Color | RAL 7016 / RAL 9005 |
| Drive-on-height | 105 mm |
| Total platform length | 1450 mm |
