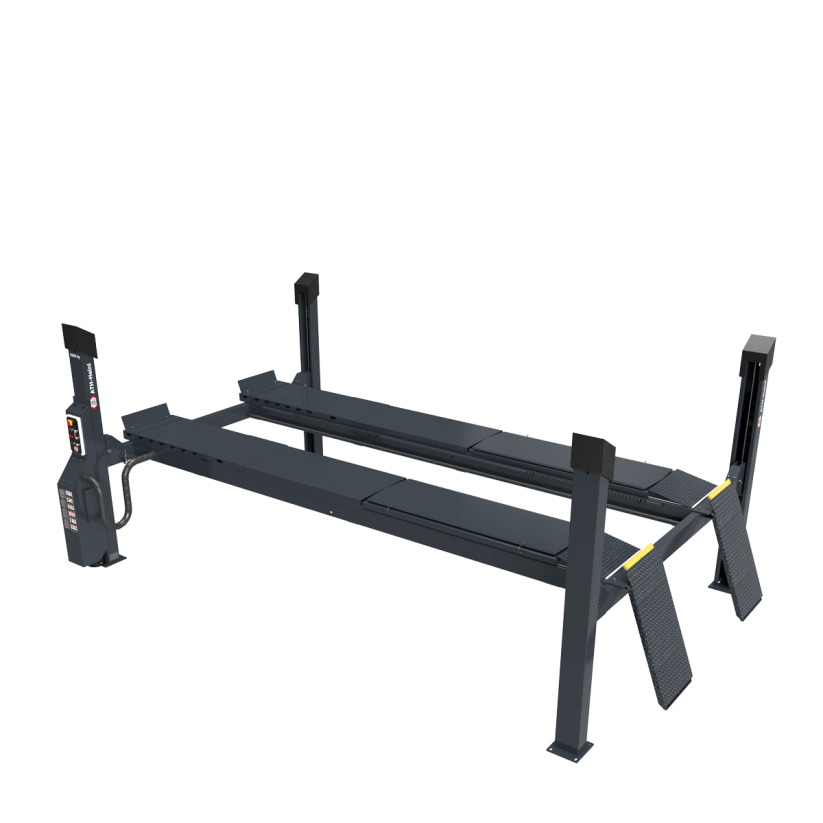

ATH Four Lift® 55AP
Experience every detail – rotate, zoom and place the model in your real environment with AR.
The ATH Four Lift® 55AP is an electrohydraulic four-post lift with a 5,500 kg capacity, a quick-lifting power unit and a load-dependent lowering function. Multifunctional pick-up via slidable platforms enables versatile vehicle positioning. Precisely adjustable ratchet bars and the platform system ensure maximum accuracy. The flat platform with integrated wheel alignment kit makes the Four Lift® 55AP the ideal solution for service, maintenance and professional wheel alignment in modern workshops.
Product highlights
Electro-hydraulic 4-post lift with quick-lifting unit and load-dependent lowering function
Central control unit, including unit cover
Flat platforms with integrated wheel alignment kit
Precisely level-able Platforms due adjustable ratchet bars
Safety Control: Electro-pneumatic safety latches that automatically unlock during lifting and lowering
Safety Lock: Control for lowering the load onto the safety latches
Multifunctional pick-up via slidable runways
Perfect platform protection made of special polymer and double powder coating
Product details
| Rated load capacity | 5500 kg |
|---|---|
| Lifting height max. | 2045 mm |
| Overall width | 3750 mm |
| Overall height | 2440 mm |
| Driving power | 4 kW |
| Lifting/Lowering time | 45 | 45 s |
| Power supply voltage | 3x 400V / C16A |
| Color | RAL 7016 / RAL 9005 |
| Drive-on-height | 200 mm |
| Total platform length | 5600 mm |
