ATH Frame Lift® 30 FZ
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.

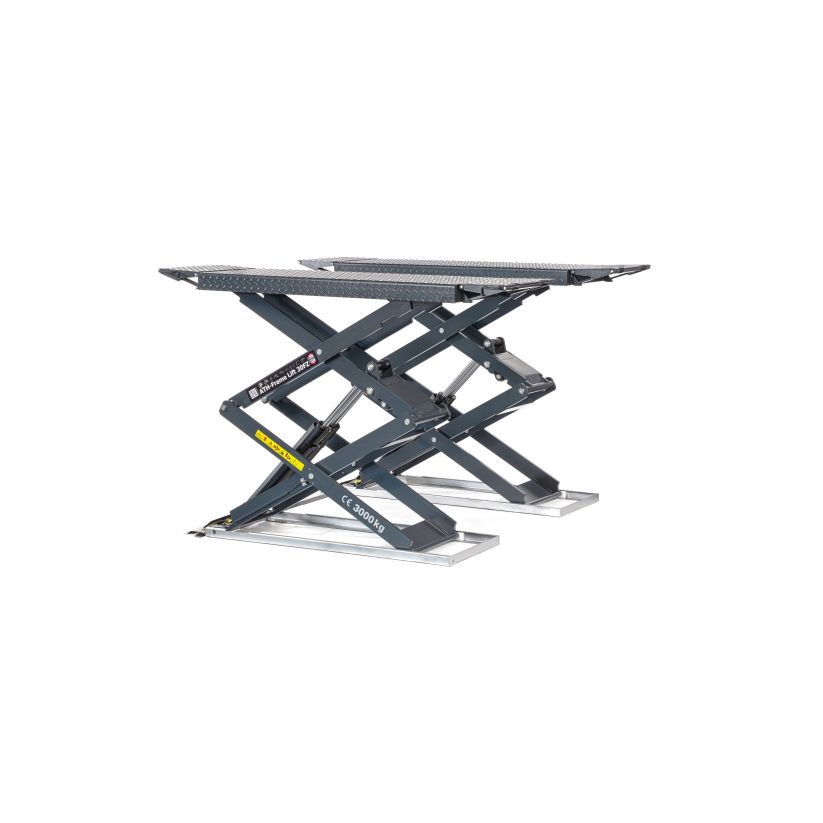

The ATH Frame Lift® 30FZ is a high-quality double scissor lift with a 3,000 kg capacity and hydraulic drive, designed to require minimal maintenance. It is suitable for surface-mounted installation and operation and can optionally be installed flush with the floor using an in-ground kit. Synchronization control via a dual master/slave system, light barrier and double hydraulic lowering lock ensures maximum safety and precise lifting—without safety locks or compressed air.
Product highlights
High-quality and robust double scissor lift with hydraulic drive, almost maintenance-free
Powerful hydraulic unit with load-dependent lowering valve
Very low drive-over height of only approx. 116 mm
Suitable for installation and use on the floor and optional floor-level installation (in ground kit)
Synchronization control via double master and slave systems, safety light barriers and double hydraulic lines
Full lifting power from the lowest point due to mechanical swivel system
Emergency lowering system for lowering in the event of a power failure, CE-Stop and acoustic lowering signal
Ideally suited for paint and body shops, repairs, brake and tire services
Product details
| Rated load capacity | 3000 kg |
|---|---|
| Lifting height max. | 1900 mm |
| Overall width | 2064 mm |
| Overall height | 105 mm |
| Driving power | 2,6 kW |
| Lifting/Lowering time | 50 | 50 s |
| Power supply voltage | 3x 400V / C16A |
| Color | RAL 7016 / RAL 9005 |
| Drive-on-height | 105 mm |

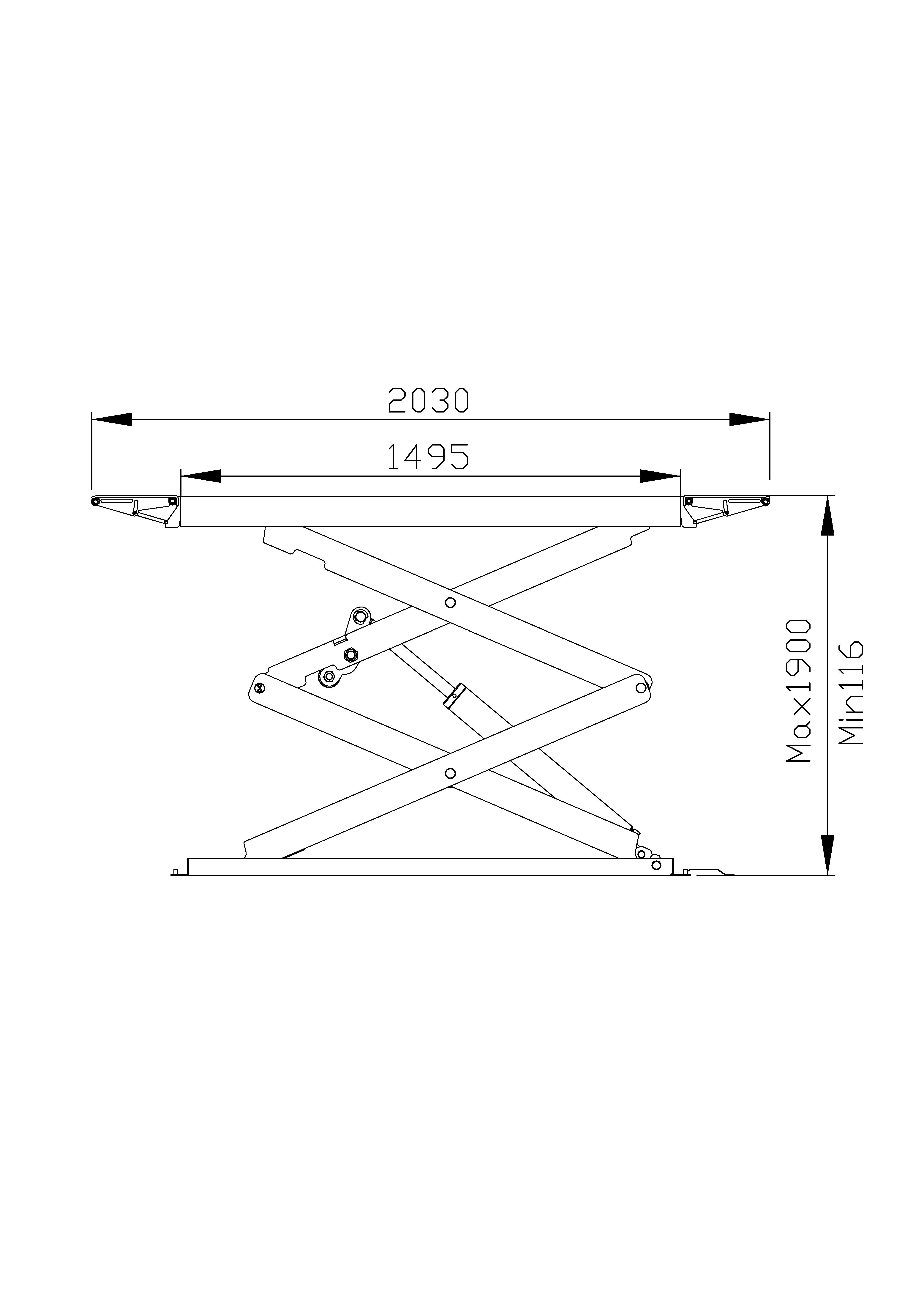

| Total platform length | 1495 - 2030 mm |
