ATH Hytron Lift® 2.45 GA
ATH Automechanika Preview 2026

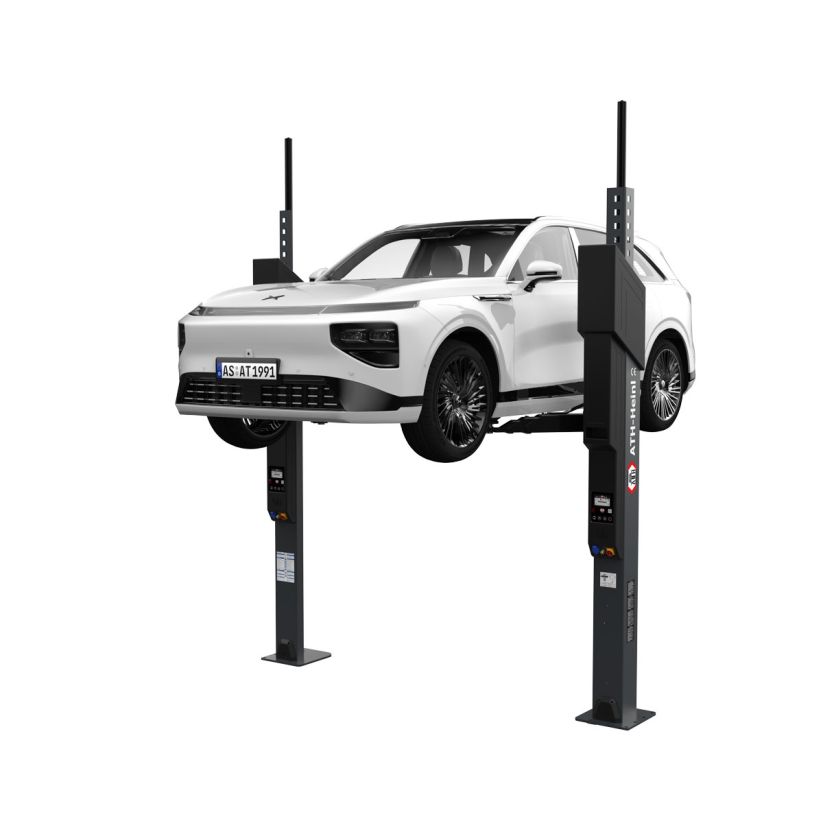

The ATH Hytron Lift® 2.45GA is an electrohydraulic 2-post lift with an innovative concept. Two independent triangular columns are synchronized wirelessly via industrial radio – without any overhead cross connection. The decentralized ATH HeartBeat® control system ensures precise synchronization, continuous speed leveling, and high operational safety. Flexible installation, easy servicing, and plug-and-play assembly – for maximum flexibility and modern workshop design.
Product highlights
Modern design meets future-oriented lifting technology
The electrohydraulic 2-post lift impresses with space-saving triangular columns, maximum installation flexibility and state-of-the-art control technology. Two fully independent columns communicate wirelessly via industrial radio and operate with precise synchronization thanks to ATH HeartBeat® – without any obstructive cross connection.
The innovative ATH Hytron Lift® concept, with each column having its own hydraulic power unit, speed and pressure control, as well as durable ATH plunger cylinders, ensures high operational safety and easy maintenance. MicroAnts Safety Control, two control units and energy sets on both columns enable comfortable and safe working.
3-part front lifting arms, double-jointed rear arms and double-telescopic support pads offer maximum flexibility when positioning the vehicle. Plug & Play: position, anchor, fill with oil – ready.
Product details
| Rated load capacity | 4500 kg |
|---|---|
| Drive-through width | 2333 mm |
| Overall height | 3220 mm |
| Lifting/Lowering time | 32 | 32 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | C 25/30 4000 x 2000 x 200 mm |
| Color | RAL 7016 / RAL 9005 |
