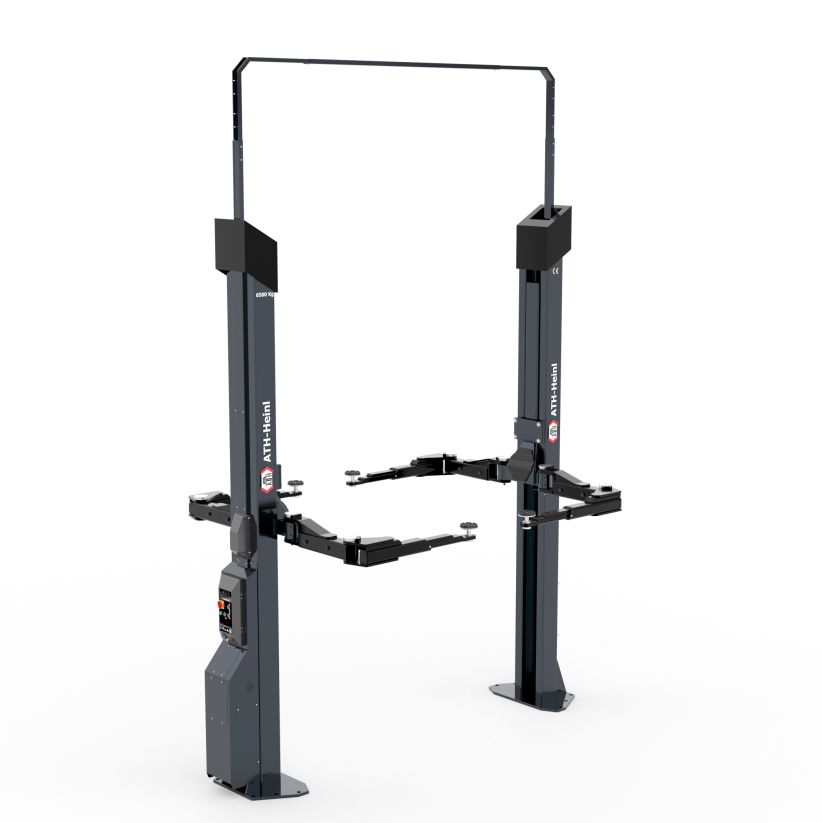

ATH Matrix Lift® 2.65
Experience every detail – rotate, zoom and place the model in your real environment with AR.
The ATH Matrix Lift® 2.65 is an electrohydraulic two-post lift with a 6,500 kg capacity and a rapid-lift power unit for maximum efficiency. Safety Control electronically monitors synchronization and activates electromagnetic safety latches. Double-jointed arms and telescopic lifting pads enable vehicle pick-up from Smart to Sprinter/Crafter. Without a base frame and with variable height, it offers flexible installation options.
Product highlights
Electro-hydraulic 2-post lift with quick lift unit and load-dependent lowering function
Synchro Control: Special hydro synchronous control for stepless synchronization without equalization ropes
Safety Control: Electronically monitored synchronization and electromagnetic safety catches
Safety Lock: Load-lowering control onto the safety latches
4-fold roller bearing lift carriage for optimal load transfer
Multifunctional pick-up via double articulated lifting arms and telescopic lifting pads (from e.g. Smart to Sprinter/Crafter long wheel bases)
Without base frame and static connection, variable height adjustment
Product details
| Rated load capacity | 6500 kg |
|---|---|
| Lifting height max. | 2165 mm |
| Drive-through width | 2800 mm |
| Overall width | 3920 mm |
| Overall height | 5850 mm |
| Support arms parts | 3 St. |
| Driving power | 3 kW |
| Lifting/Lowering time | 50 | 50 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | C 25/30 6.000 x 4.000 x 250 |
| Color | RAL 7016 / RAL 9005 |
