ATH Matrix Lift® 2.80 GA
ATH Automechanika Preview 2026

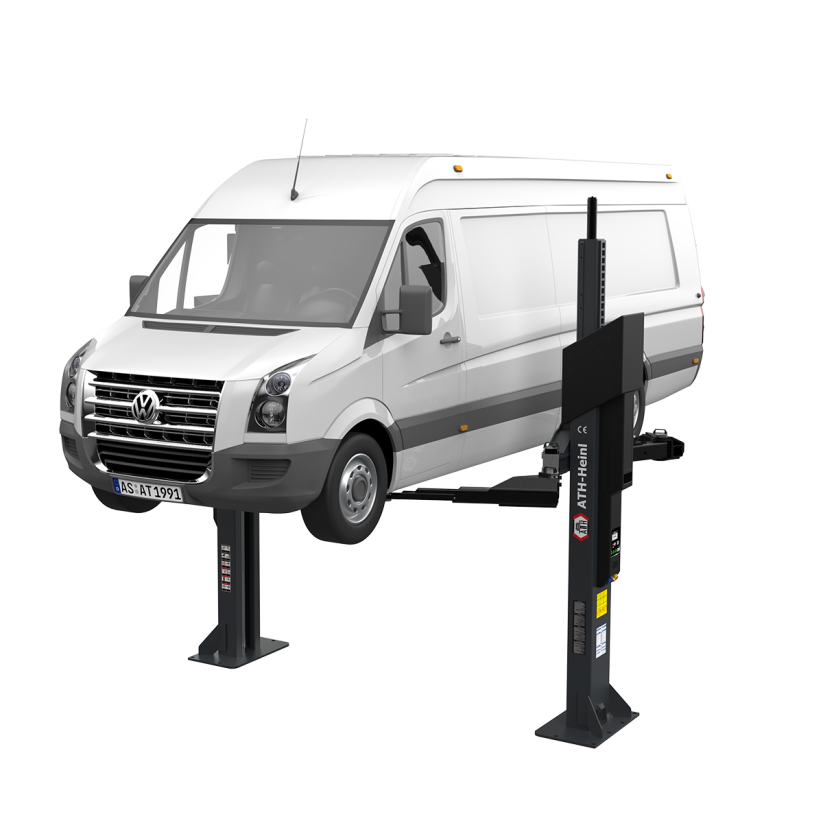

The ATH Hytron Lift® 2.80GA is an electrohydraulic 2-post lift with an innovative concept. Two independent columns are synchronized wirelessly via industrial radio – without any overhead cross connection. The decentralized ATH HeartBeat® control system ensures precise synchronization, continuous speed leveling, and high operational safety. Flexible installation, easy servicing, and plug-and-play assembly – for maximum flexibility and modern workshop design.
Product highlights
Modern design meets future-oriented lifting technology
The electrohydraulic 2-post lift combines maximum flexibility with state-of-the-art technology. Two fully independent columns communicate wirelessly via industrial radio and operate with precise synchronization thanks to ATH HeartBeat® – without any obstructive cross connection.
The innovative ATH Hytron Lift® concept, durable ATH plunger cylinders, automatic MicroAnts Safety Control and flexible double-jointed arms ensure comfortable, safe and efficient operation.
Plug & Play: position, anchor, fill with oil – ready. High-quality design and fully covered components also make the lift a visual upgrade for every modern workshop.
Product details
| Rated load capacity | 8000 kg |
|---|---|
| Lifting height max. | 2100 mm |
| Overall width | 3790 mm |
| Overall height | 3150 mm |
| Lifting/Lowering time | 50 | 50 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | C 25/30 6.000 x 4.000 x 250 |
| Color | RAL 7016 / RAL 9005 |
