ATH Pure Lift® 2.40 A / 230V
Experience every detail – rotate, zoom and place the model in your real environment with AR.

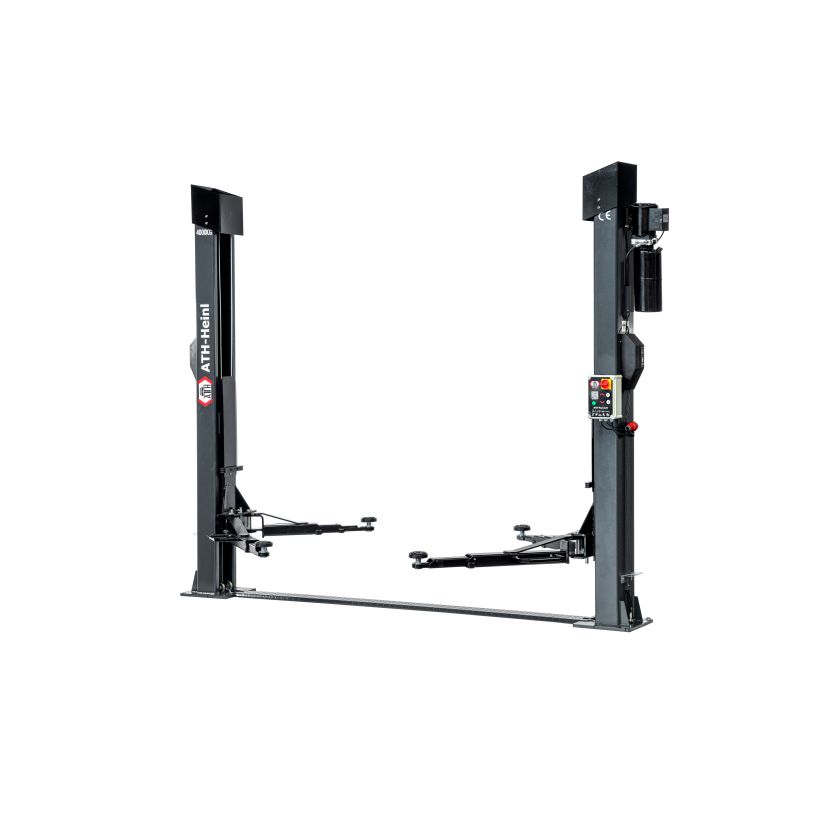

The ATH Pure Lift® 2.40A 230V is a high-quality, robust electrohydraulic two-post lift with a 4,000 kg capacity for professional workshop use. The very low drive-over plate of approx. 20 mm allows comfortable working and reliably protects components. Telescopic lifting arms ensure flexible vehicle pick-up. Automatic safety latches combined with an automatic lowering valve guarantee safe, comfortable and efficient operation in daily use.
Product highlights
High quality and robust electro-hydraulic 2-post lift
Very low drive-over plate (height = approx. 20 mm) for comfortable work

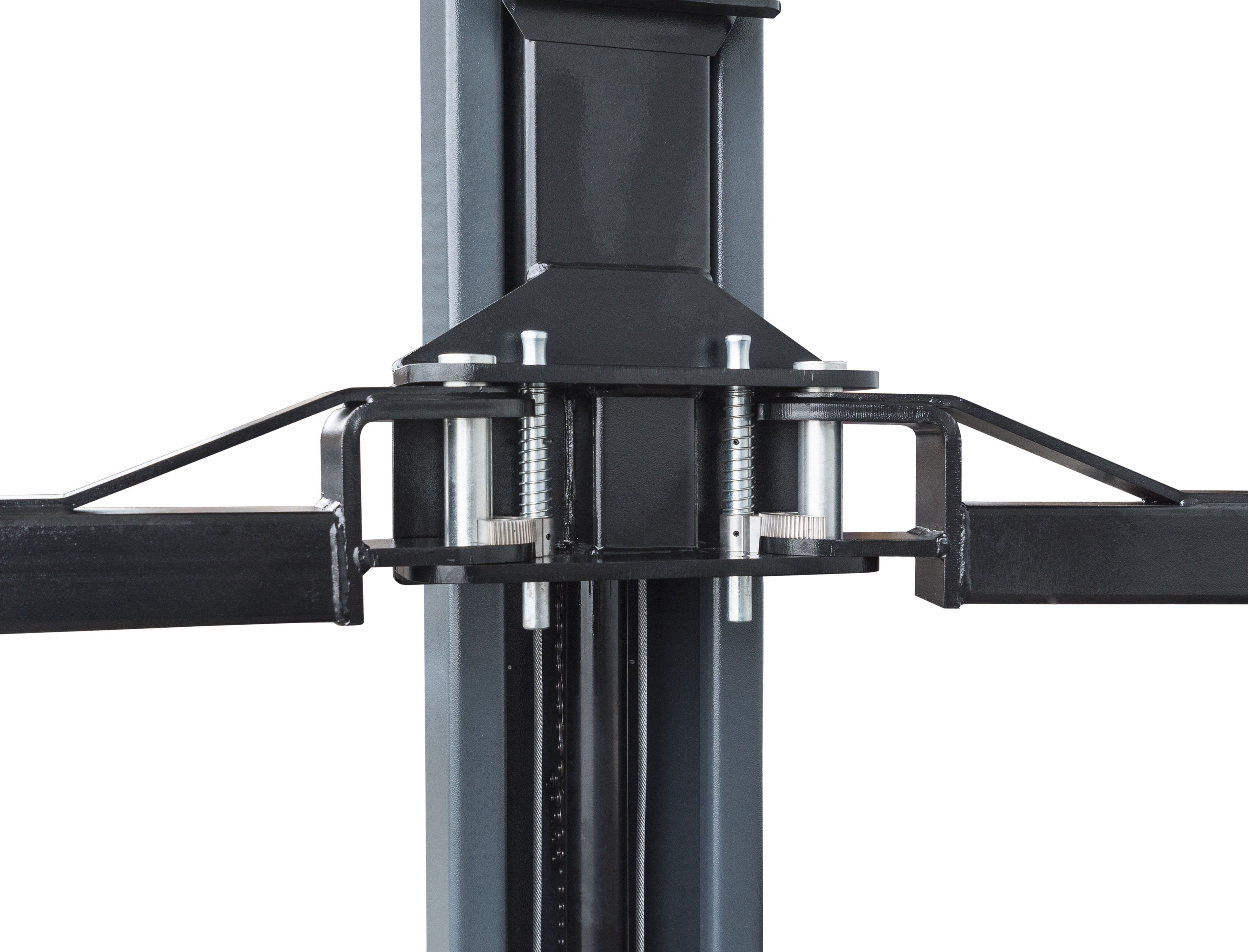

Multifunctional mounting through telescopic lifting arms
Double telescopic Lifting pads (90-180 mm) with anti-twist protection
Automatic and self-centering arm lock
Powder-coated lift in modern anthracite gray
Automatic safety latches with automatic lowering valve
Product details
| Rated load capacity | 4000 kg |
|---|---|
| Lifting height max. | 1900 mm |
| Drive-through width | 2600 mm |
| Overall width | 3455 mm |
| Overall height | 33250 mm |
| Support arms parts | 3 | 2 St. |
| Driving power | 2,2 kW |
| Lifting/Lowering time | 45 | 35 s |
| Power supply voltage | 230V / C16A |
| Concrete strength | 4000 x 2000 x 200 mm C 25/30 |
| Color | RAL 7016 / RAL 9005 |
