ATH Supreme Lift® 2.35
ATH Automechanika Preview 2026

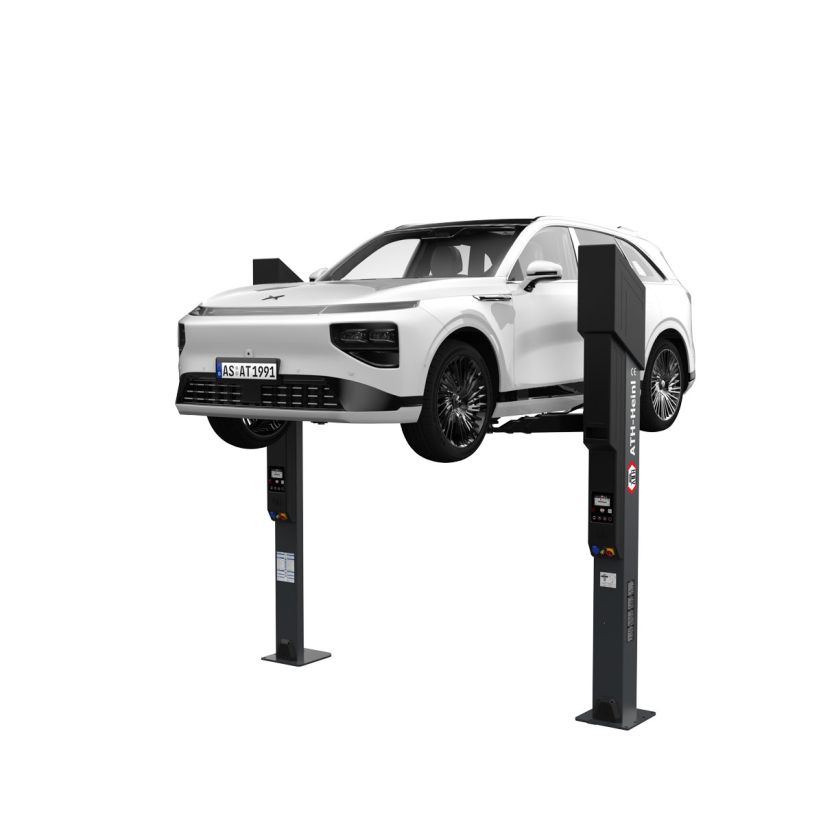

The ATH SUPREME Lift® 2.35 is an electromechanical 2-post lift with an innovative concept. Two independent triangular columns are synchronized wirelessly via industrial radio – without any overhead cross connection. The decentralized ATH HeartBeat® control system ensures precise synchronization, continuous speed leveling, and high operational safety. Flexible installation, easy servicing, and plug-and-play assembly – for maximum flexibility and modern workshop design.
Product highlights
Modern design meets future-oriented technology
The electromechanical 2-post lift impresses with space-saving triangular columns, a powerful spindle drive and maximum installation flexibility. Two fully independent columns communicate wirelessly via industrial radio – without any obstructive cross connection.
The ATH Supreme concept with ATH HeartBeat® control, patented double travel-distance measurement and the multi-stage ATH Supreme Safety System ensures precise synchronization, maximum operational safety and exceptional durability.
Operation and energy set on both columns, as well as flexible lifting arms with double-telescopic support pads, enable comfortable working. The fully covered components and high-quality design also make the lift a visual upgrade for every modern workshop.
Product details
| Rated load capacity | 3500 kg |
|---|---|
| Lifting height max. | 2000 mm |
| Drive-through width | 2333 mm |
| Overall height | 3220 mm |
| Lifting/Lowering time | 42 | 42 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | C 25/30 4000 x 2000 x 200 mm |
| Color | RAL 7016 |
