ATH AF2600P4
€2,516.81
plus assembly and freight
€2,995.00
Availability:
In stock
SKU
650030

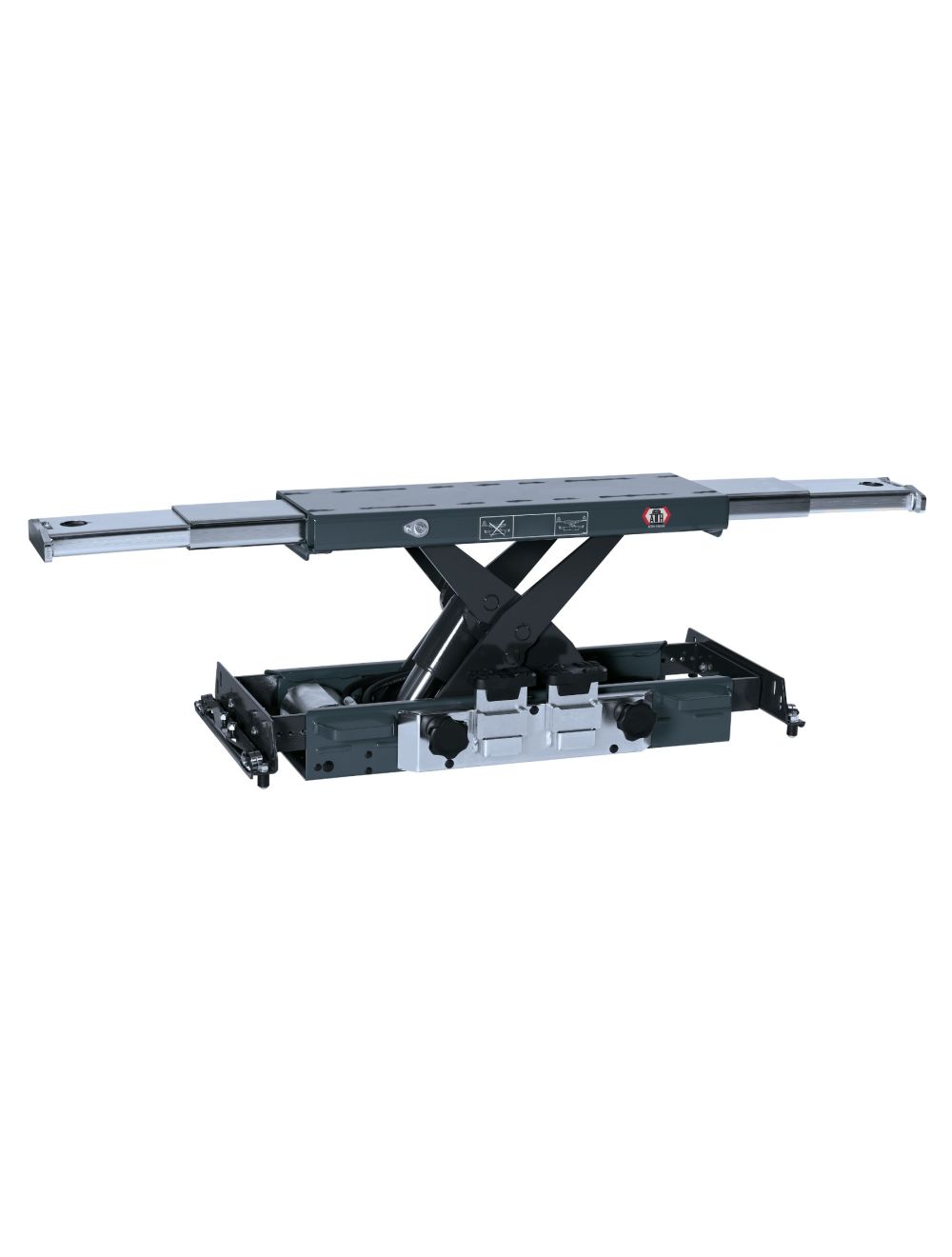

- Air powered hydraulic scissor axle jack
- Suitable for assembly and use of ATH scissor lift and four post lift
- ATH double scissor lift and four post lift guide chassis included
- Pneumatic line and guide rope (attachment to the lift) included
- Plug-in system extensions 2x 80 mm and 2x 155 mm included
- Powerful air powered hydraulic unit
- Perfect corrosion protection with partial double powder coating
| Rated load capacity | 2.600 kg |
|---|---|

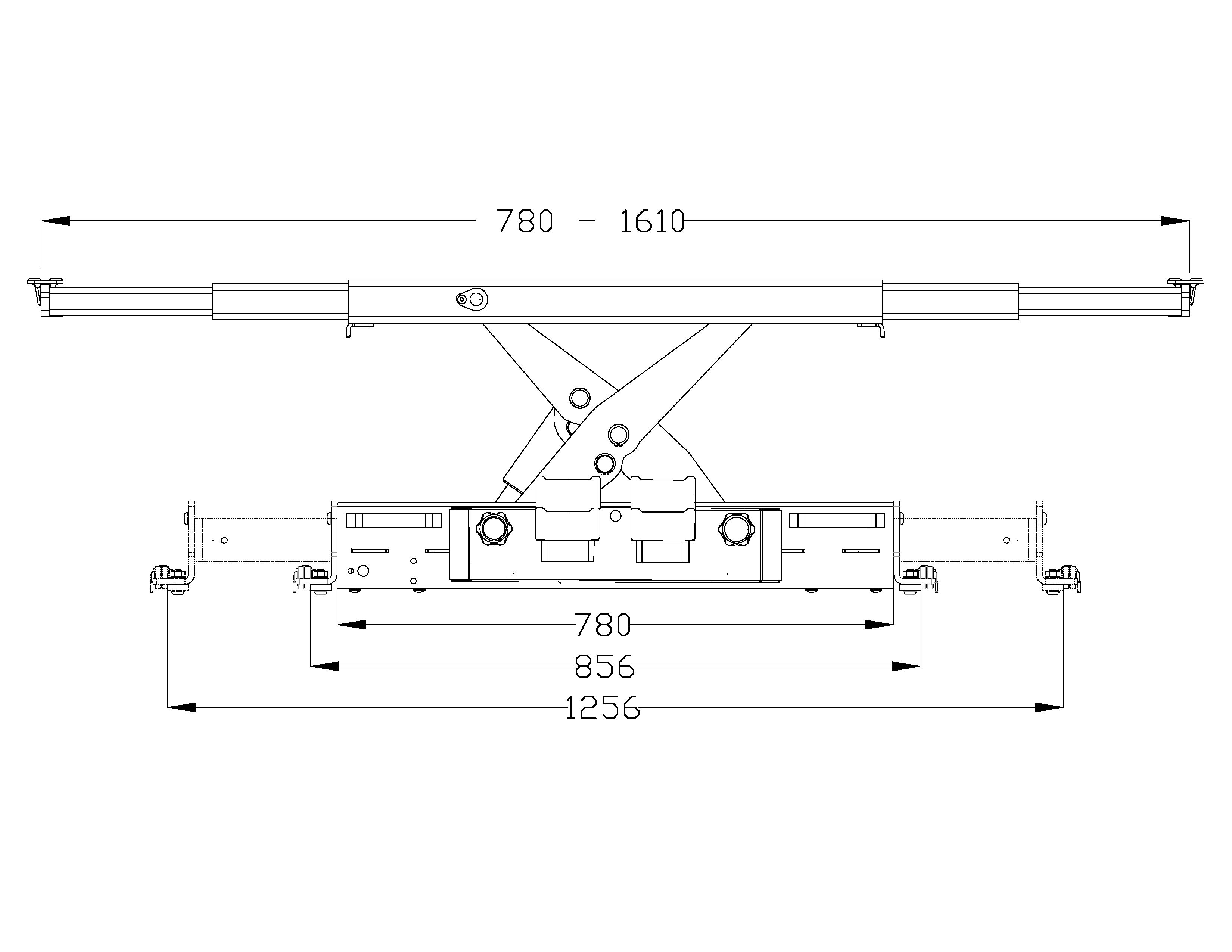

| Vehicle mount | 780 - 1.610 mm |
| Rail support | 856 - 1.256 mm |
| Compressed air connection | 8 - 10 bar |
| Lifting height max. | 250 mm |
| Lifting/Lowering time | ca. 20 s |
Product Catalogue
We can also advise you by phone 0800 612 4064
Download Product-Brochure
