ATH Comfort Lift® 2.40XL
Experience every detail – rotate, zoom and explore interactively.
Experience every detail – rotate, zoom and place the model in your real environment with AR.

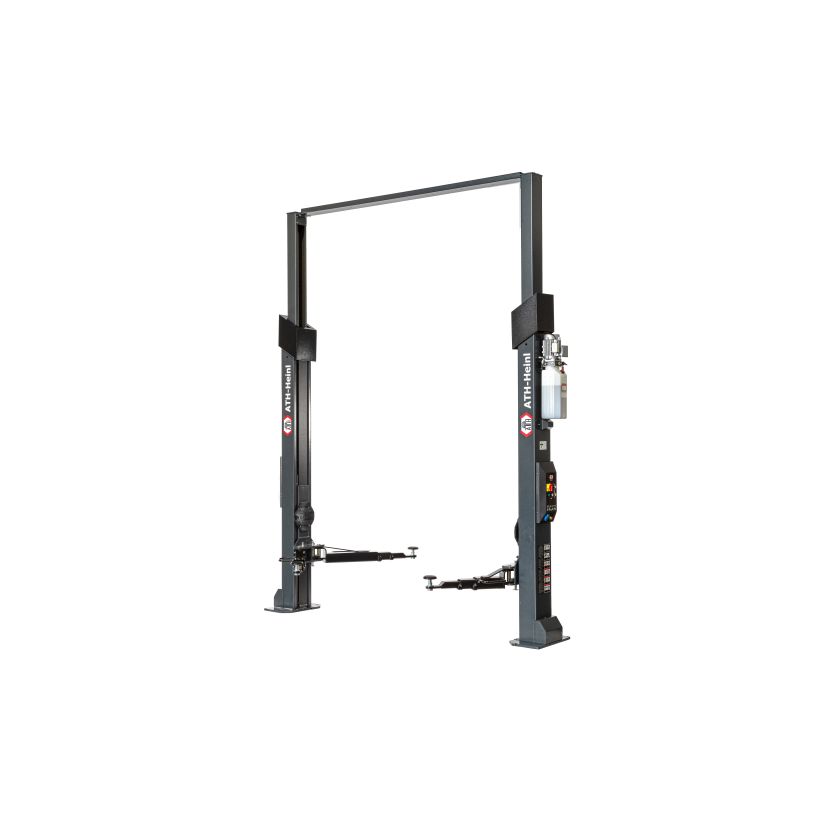

The ATH Comfort Lift® 2.40XL is an electrohydraulic two-post lift with a 4,000 kg capacity and a rapid-lift power unit for efficient workshop operations. Two control units on both columns provide maximum flexibility, each with an integrated energy set including 230 V, compressed air and 12 V. 3-stages lifting arms with double-telescopic lifting pads enable versatile vehicle pick-up from Smart to Crafter (medium). The overhead, height-adjustable crossbeam ensures optimal adaptation to any workshop situation.
Product highlights
Electro-hydraulic 2-post lift with quick lift unit and load-dependent lowering function
Two control units for flexible use on both columns
Energy set (230V / compressed air / 12V) on both operating units
Safety Control: Electromagnetic safety locks that automatically unlock with lifting and lowering
Safety Lock: Load-lowering control onto the safety latches
Multifunctional lifting via 3-stage lifting arms and double-telescopic lifting pads (suitable from, for example, Smart to Crafter medium wheelbase using alternative lifting points)
Overhead crossbeam with hydraulic hose and synchronization cables
Product details
| Rated load capacity | 4000 kg |
|---|---|
| Lifting height max. | 2000 mm |
| Drive-through width | 2500 mm |
| Overall width | 3542 mm |
| Overall height | 4280 mm |
| Support arms parts | 3 St. |
| Driving power | 3 kW |
| Lifting/Lowering time | 30 | 30 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | C 25/30 4000 x 2000 x 200 mm |
| Color | RAL 7016 / RAL 9005 |
