ATH RG7.5-4

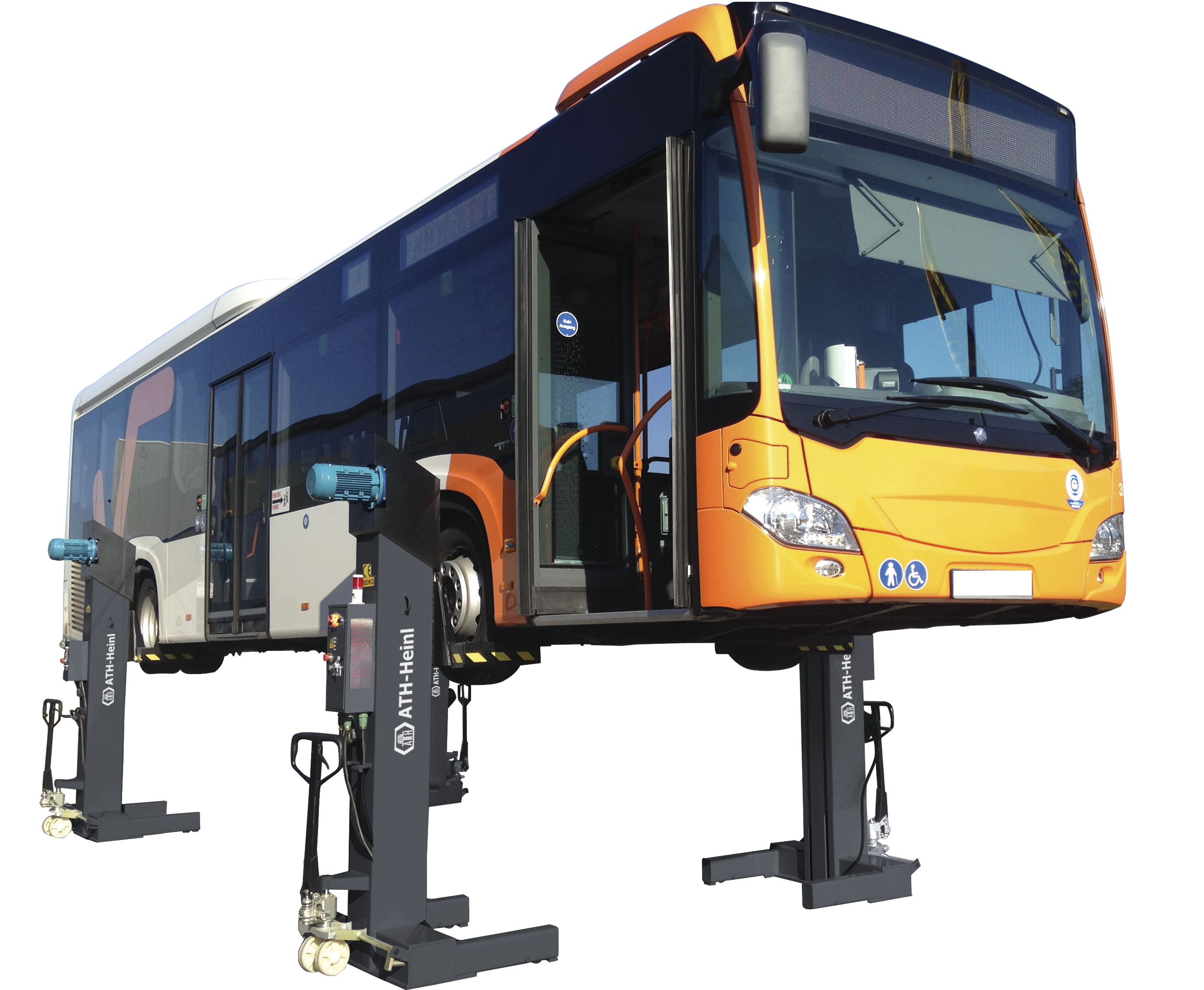

Mobile column lift for trucks with 4 mobile columns, rated load capacity per column 7500 kg
Availability:
In stock
SKU
710017
- High-precision manufacturing by laser cutting and robotic welding
- Robust and less sensitive hydraulic drive, almost maintenance-free
- 4 mobile columns can be flexibly positioned due to long connecting cables
- With the hand hydraulic jack-lift, the columns can be moved in an easy and secure way

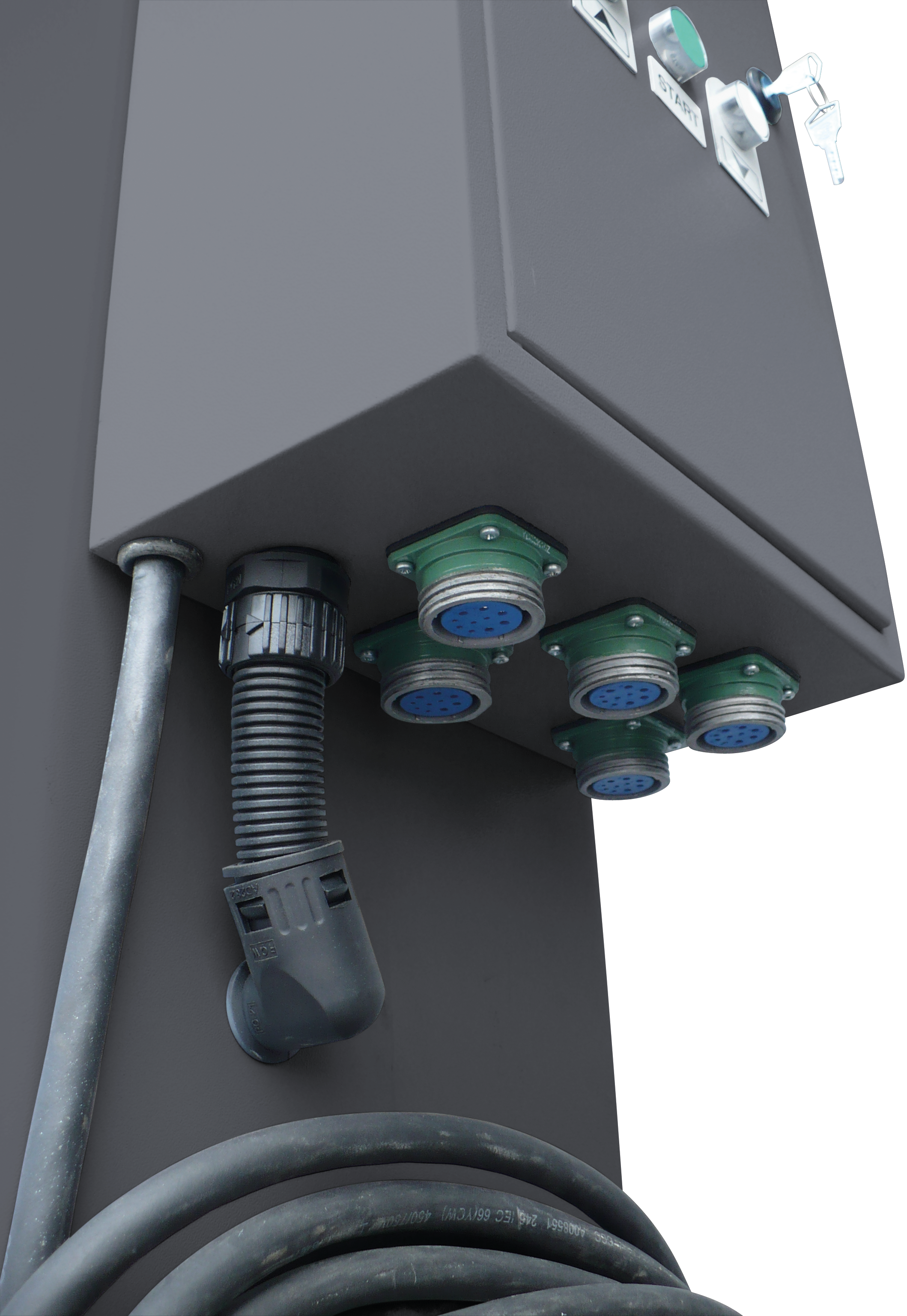

- Control unit on every column, lifting and lowering with push button control
- The control can be switched from one to all-column lifting
- Lifting mechanism with wear-free trapezoidal screw drive, self-locking bronze lifting nut and low-maintenance geared motor
- Safety nut if the support nut breaks
- Powder-coated lift in attractive anthracite gray
- Optional: Adapter for smaller wheels (item number: 710020)
- Optional: Mobil support frame (item number: 710050)

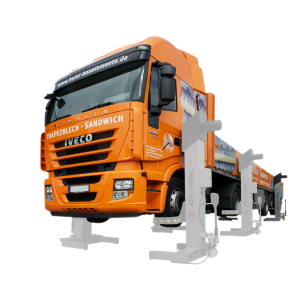

- Perfect lift for trucks and busses
| Color | Anthrazitgrau / Schwarz |
|---|---|
| Rated load capacity | 7,5 t |
| Lifting height max. | 1.740 mm |
| Overall height | 2.750 mm |
| Column width | 1.140 mm |
| Driving power | 3 kW |
| Lifting/Lowering time | ca. 180 s |
| Power supply voltage | 3x 400V / C63A |
| Concrete strength | min. C20/25 Dicke: 250 mm |
