ATH RG® 4.0 4 KB
Experience every detail – rotate, zoom and place the model in your real environment with AR.

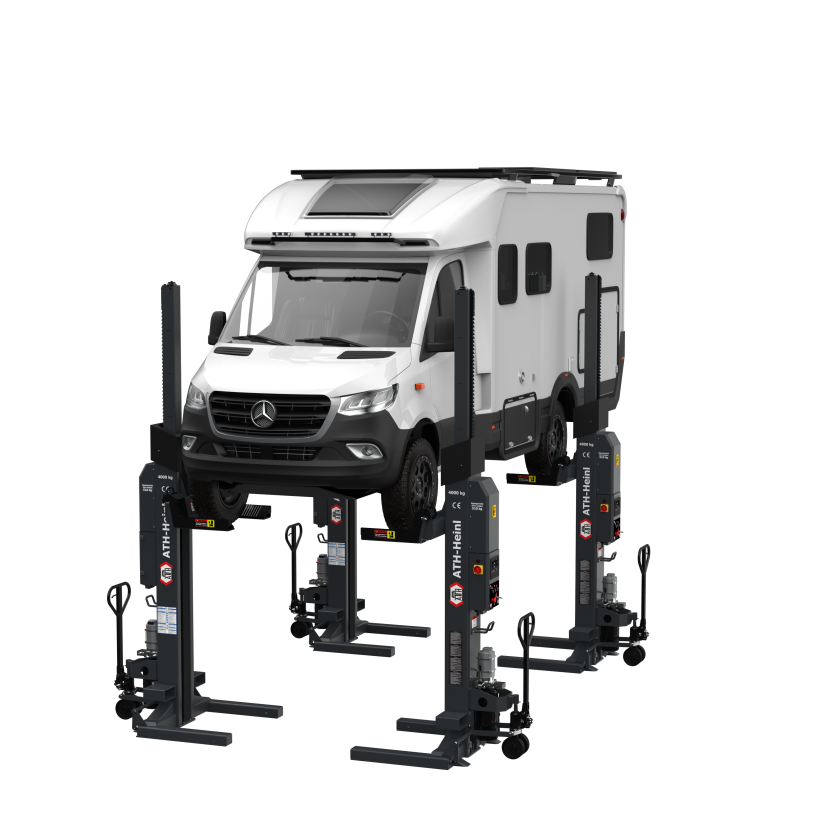

The ATH RG®4.0-4 KB is an electrohydraulic mobile column lift system with cable control for professional workshop use. Each column offers a lifting capacity of 4,000 kg and displays all relevant operating data directly on the control unit. The system can be expanded up to six columns. Adjustable wheel forks with individual settings enable multifunctional vehicle pick-up. The four-column set is ideal for precise, stationary lifting solutions in commercial vehicle and passenger car service.
Product highlights
Electro-hydraulic wheel lifting system with cable control
Operating unit on every column for flexible use
Control system provides all operating information on every column and allows expansion up to 6 columns
Mobile kit and forklift pockets on the columns enable quicker repositioning
Safety Control: Hydraulic check valve, electronic synchronisation monitoring, and electromagnetic safety latches
Safety Lock: Control for lowering the load onto the safety latches
Multi-functional pick-up via variable wheel fork with individual adjustment options
Product details
| Rated load capacity | 4000 kg |
|---|---|
| Lifting height max. | 1850 mm |
| Overall width | 2600 mm |
| Overall height | 3770 mm |
| Driving power | 2,6 kW |
| Lifting/Lowering time | 55 | 45 s |
| Power supply voltage | 3 X 400V |
| Color | RAL 7016 / RAL 9005 |
| Column communication | Wired control |
