ATH RG® 8.5 6 WB
Experience every detail – rotate, zoom and place the model in your real environment with AR.

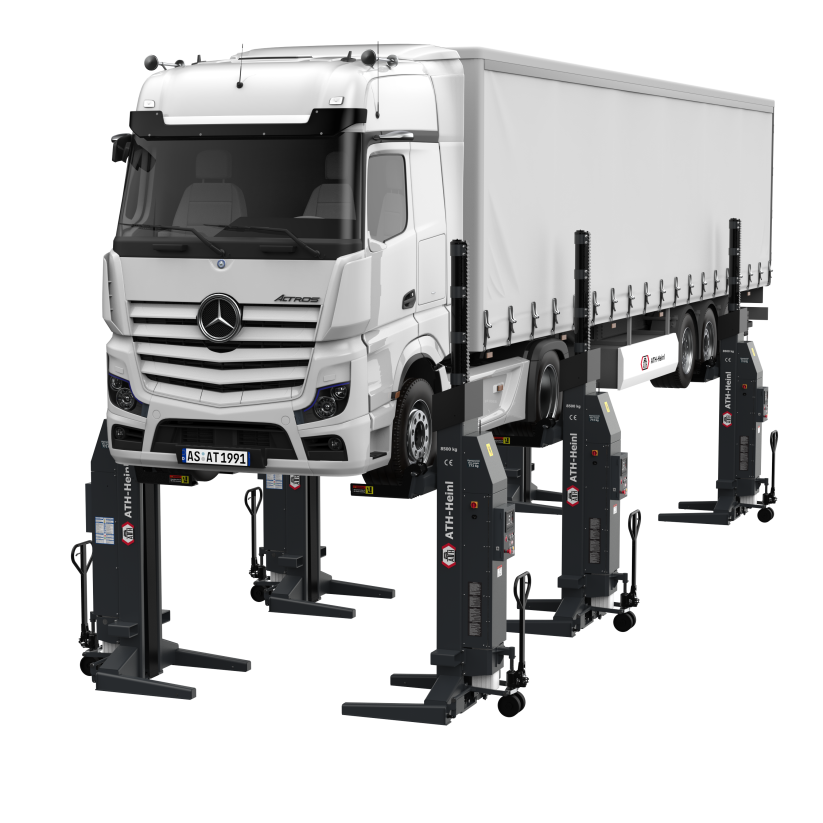

The ATH RG®8.5-6 WB is a powerful electrohydraulic mobile column lift system with battery operation and modern wireless control. Each column offers a lifting capacity of 8,500 kg and is operated via the master control, which displays all operating data on each column and allows expansion up to 16 columns. Adjustable wheel forks with individual settings enable multifunctional vehicle pick-up. The six-column set is ideal for flexible, mobile lifting solutions in professional commercial vehicle service.
Product highlights
Electro-hydraulic mobile column lift with battery operation and wireless control
Control unit including unit cover on each column for flexible use
Master unit controls all columns and can control up to 16 units
Integrated quick charger for each column, enables charging during use
Mobile kit and forklift pockets on the columns enable quicker repositioning
Safety Control: hydraulic shut-off valve, electronic synchronization monitoring and electromagnetic safety locks
Safety Lock: ability to lock the load on to the safety mechanism
Multifunctional mounting via variable wheel fork with individual setting options

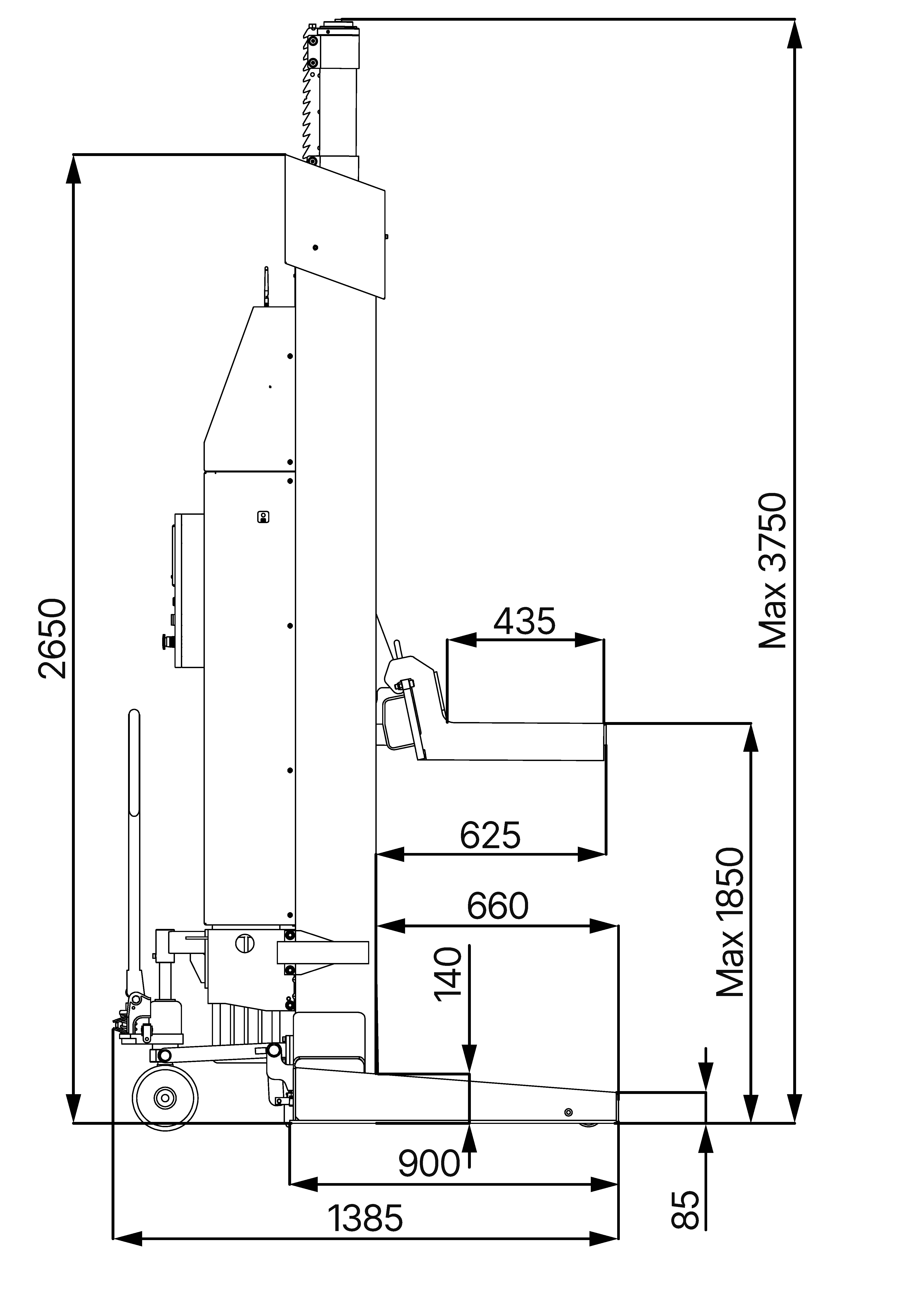

Product details
| Rated load capacity | 8500 kg |
|---|---|
| Lifting height max. | 1850 mm |
| Overall width | 1125 mm |
| Overall height | 3730 mm |
| Driving power | 2,2 kW |
| Lifting/Lowering time | 65 | 55 s |
| Power supply voltage | DC 24V |
| Color | RAL 7016 / RAL 9005 |
| Column communication | wireless |
