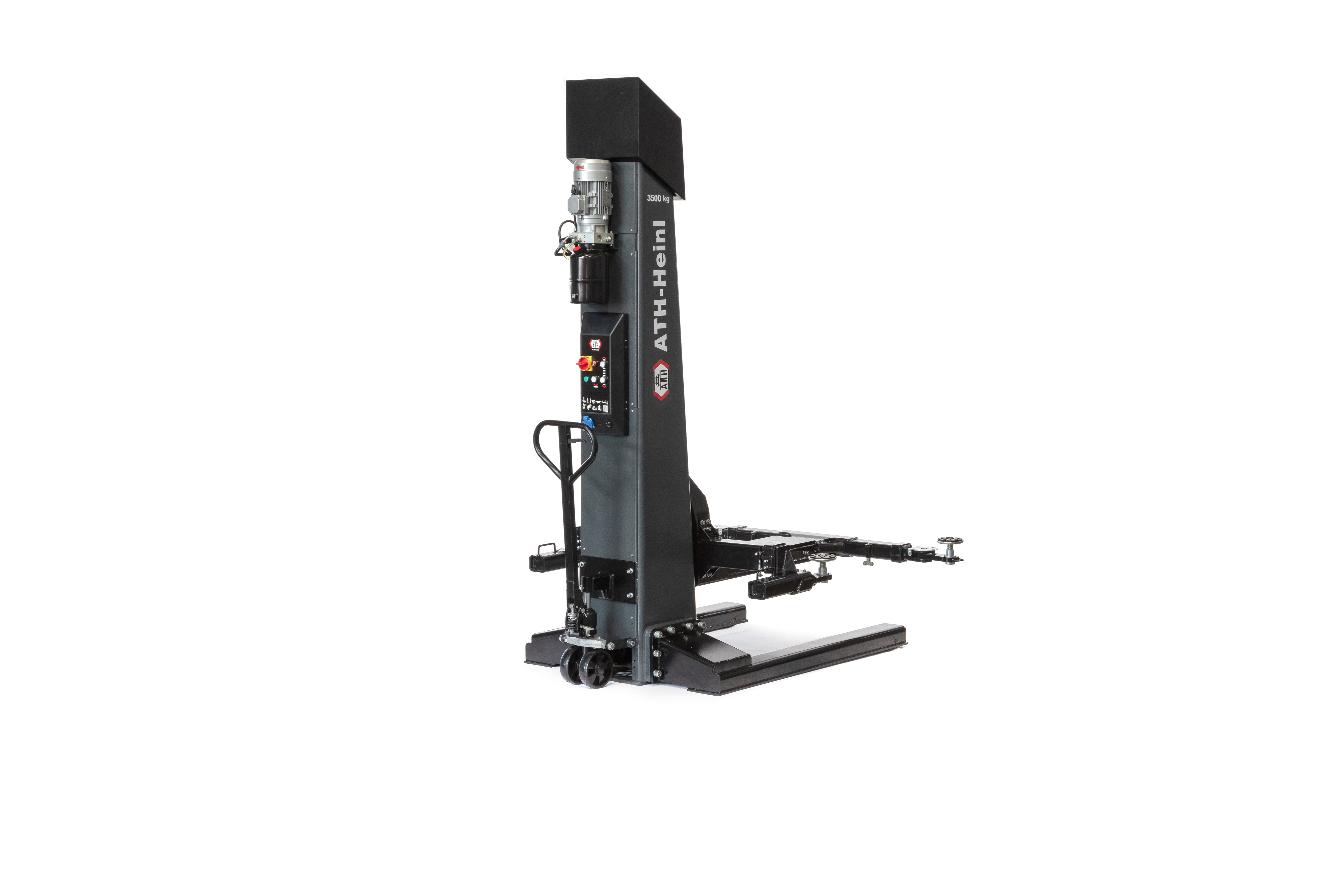

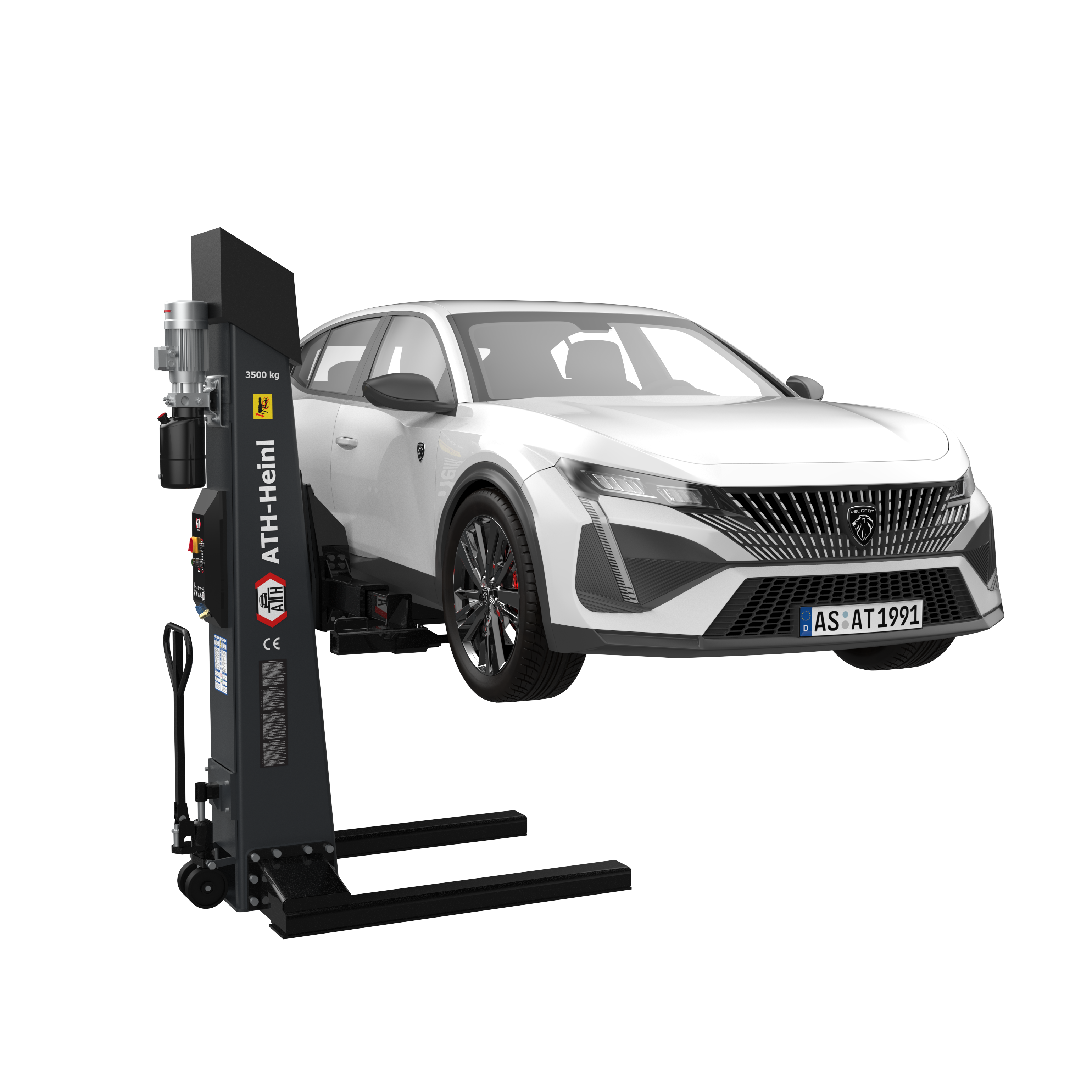

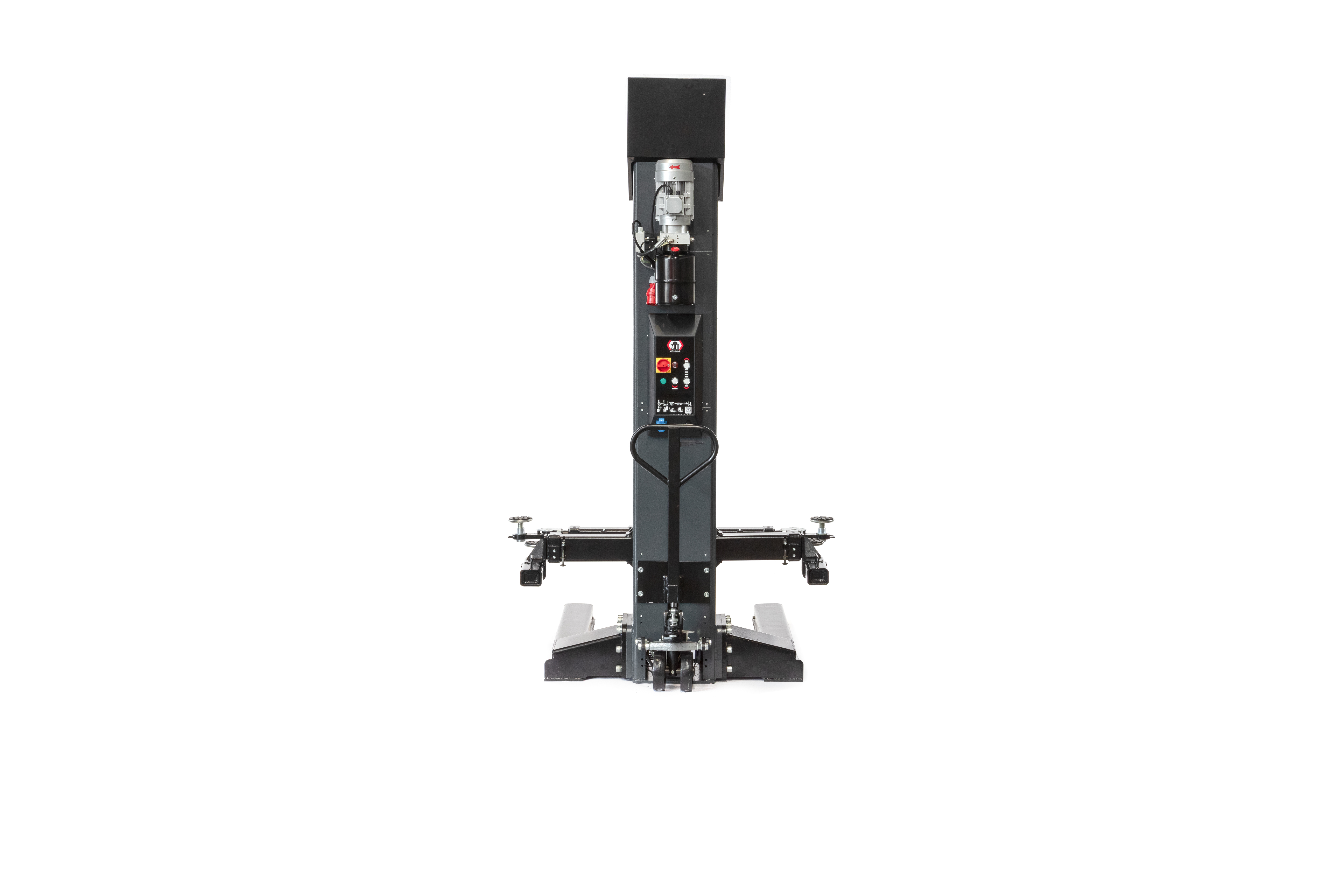

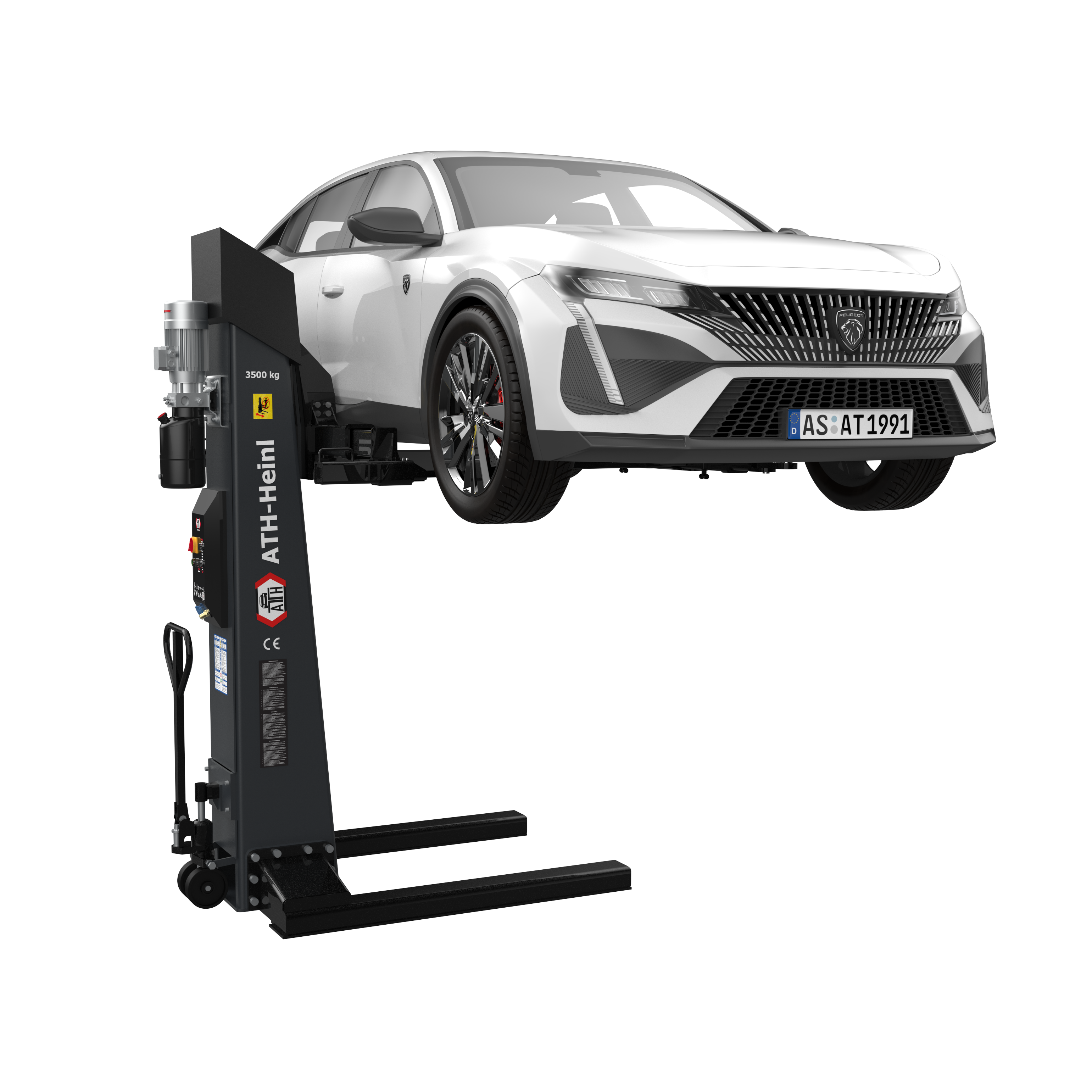

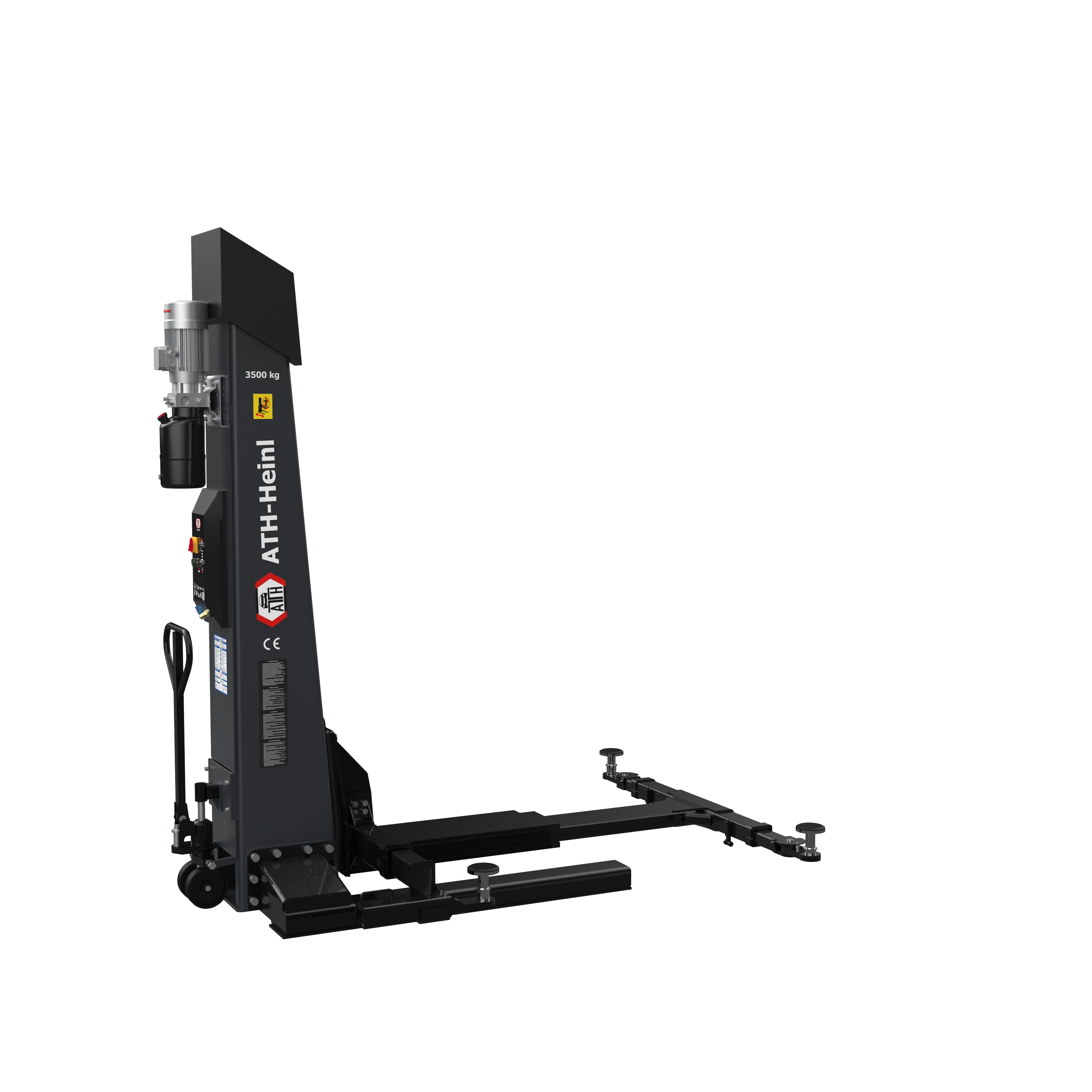

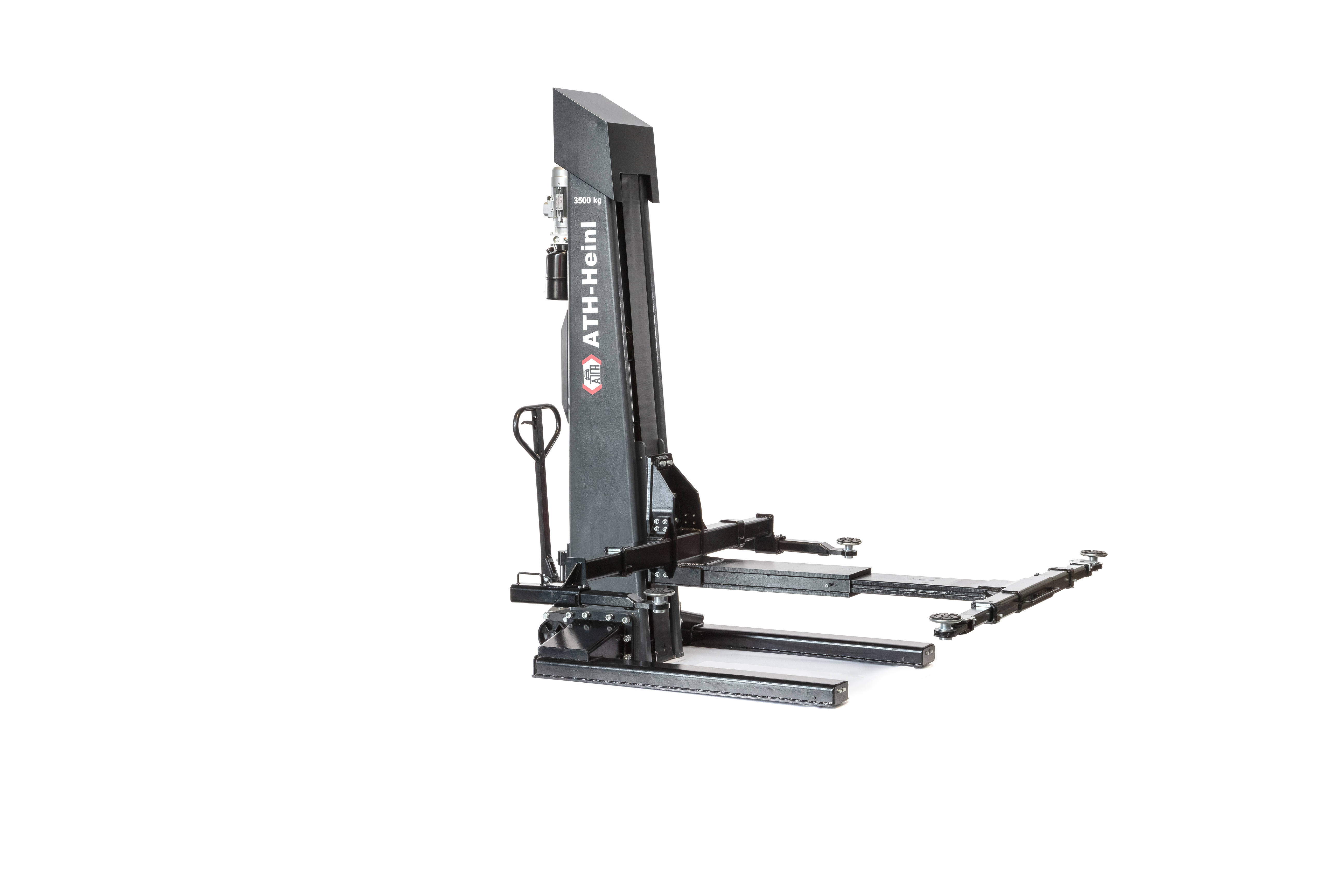

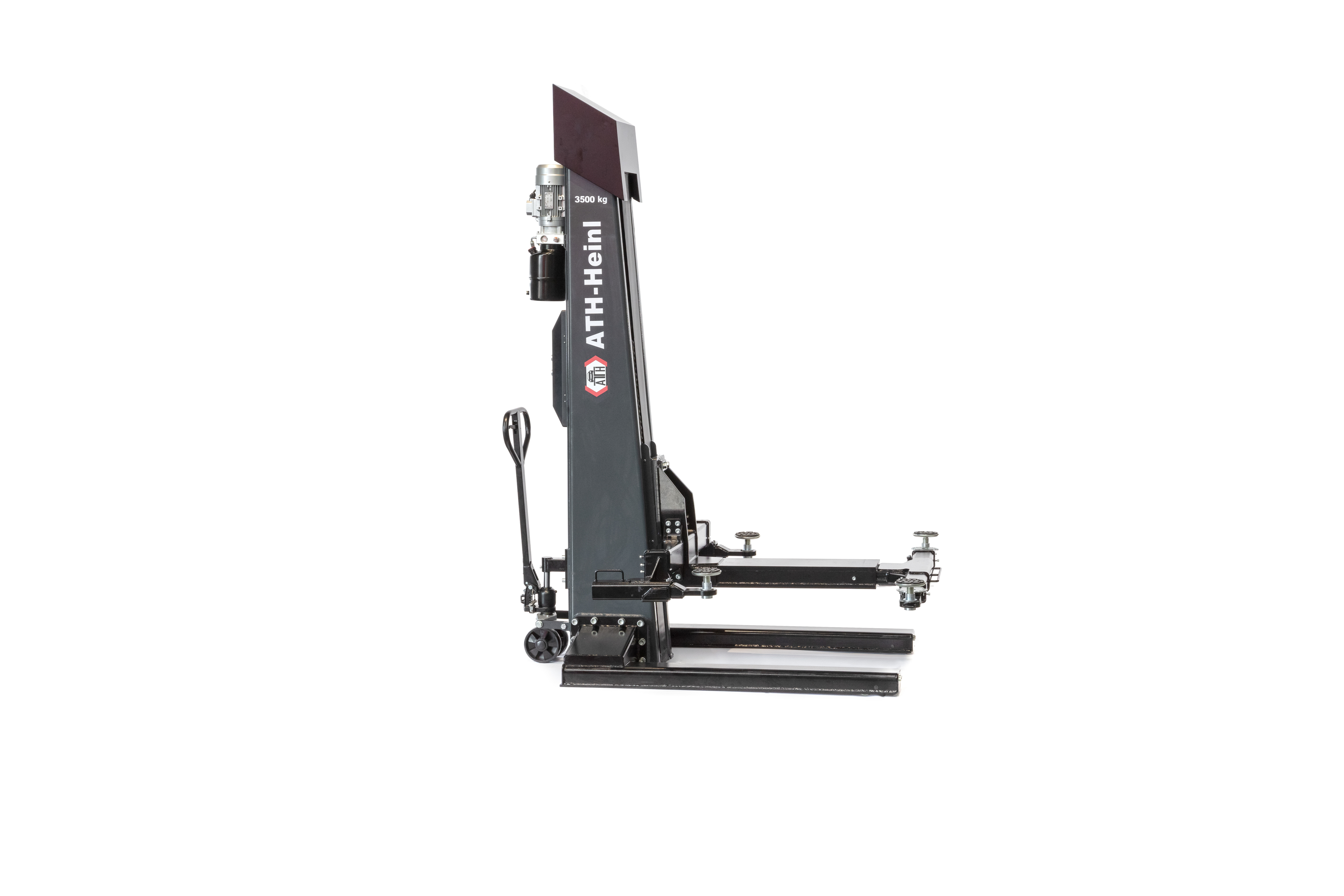

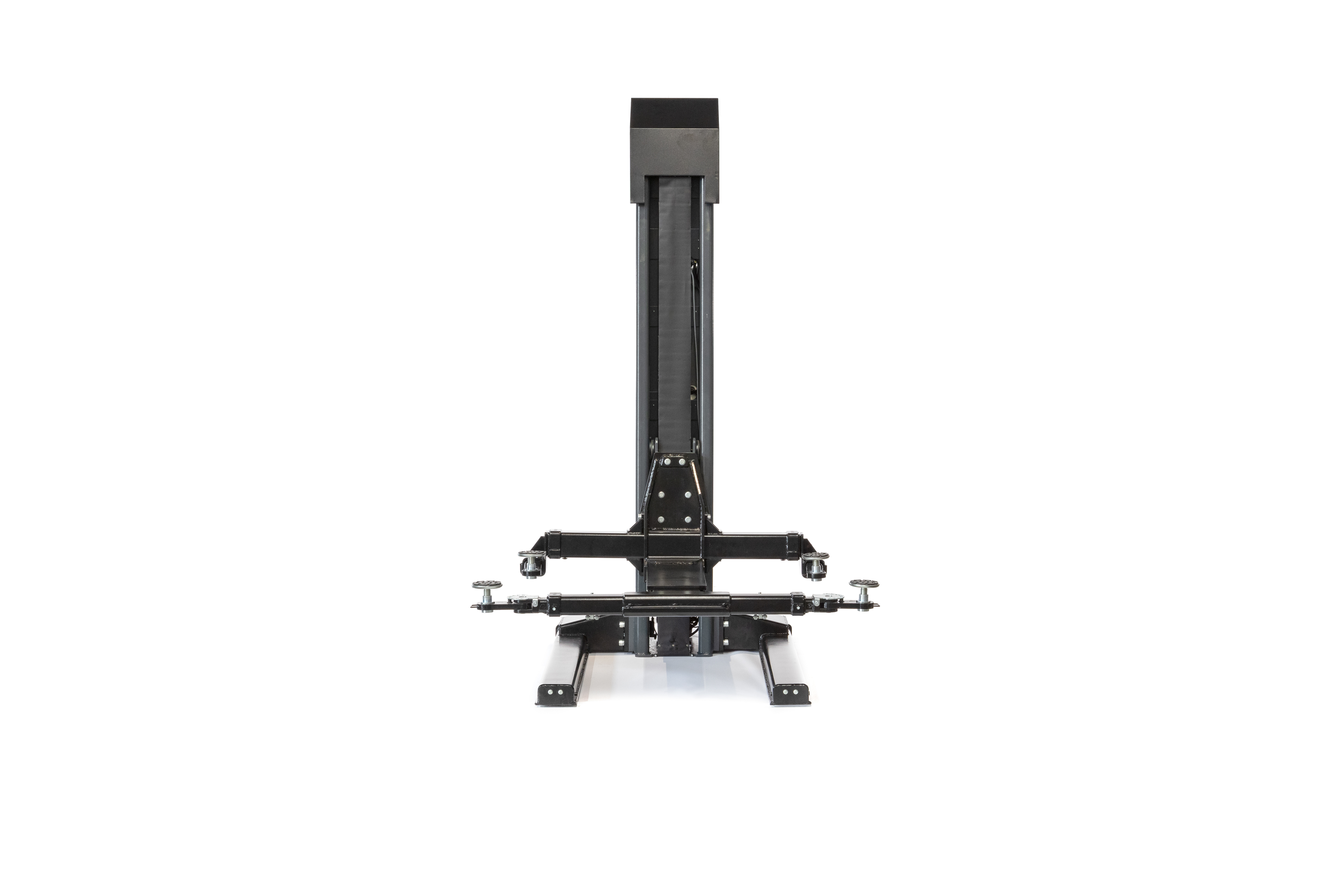

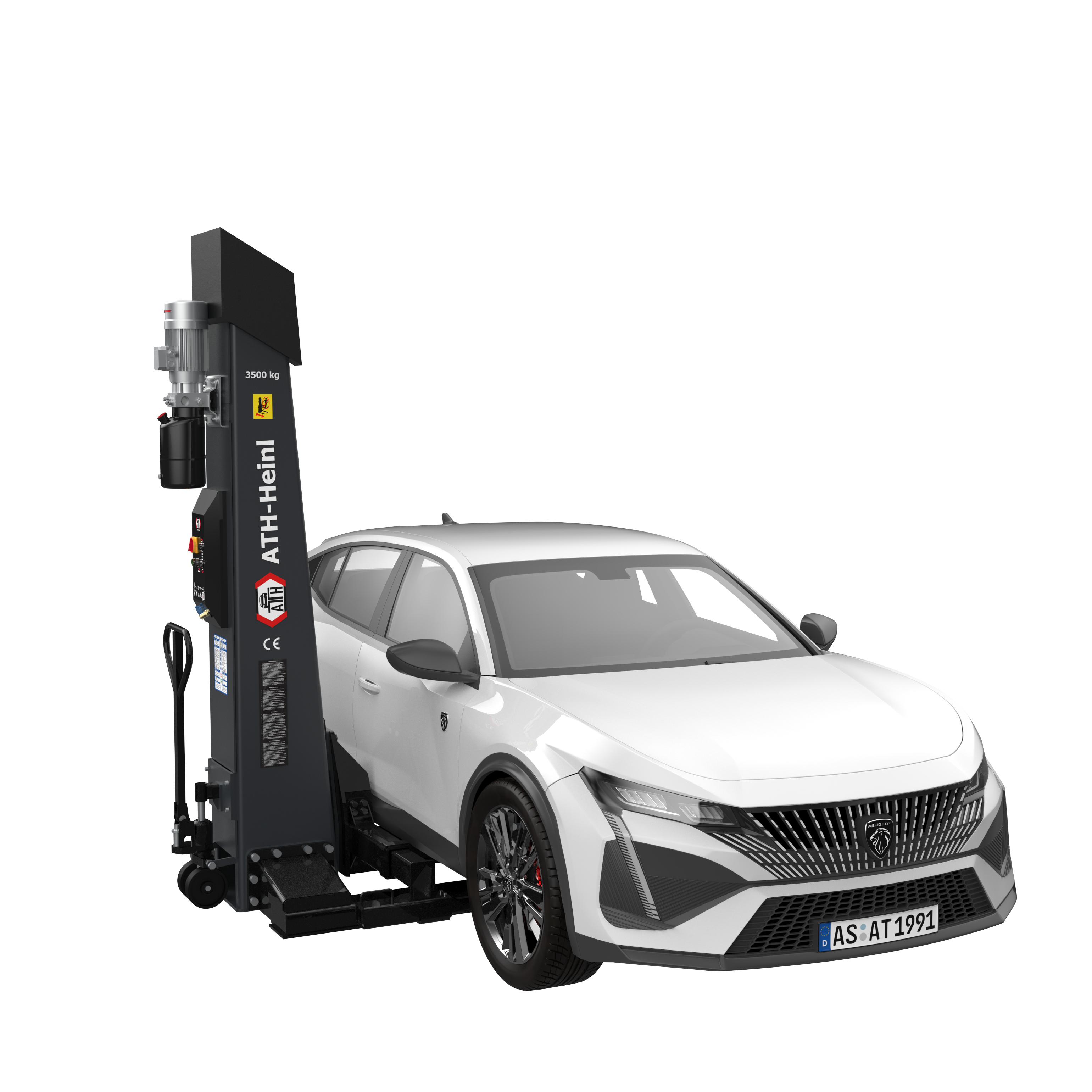

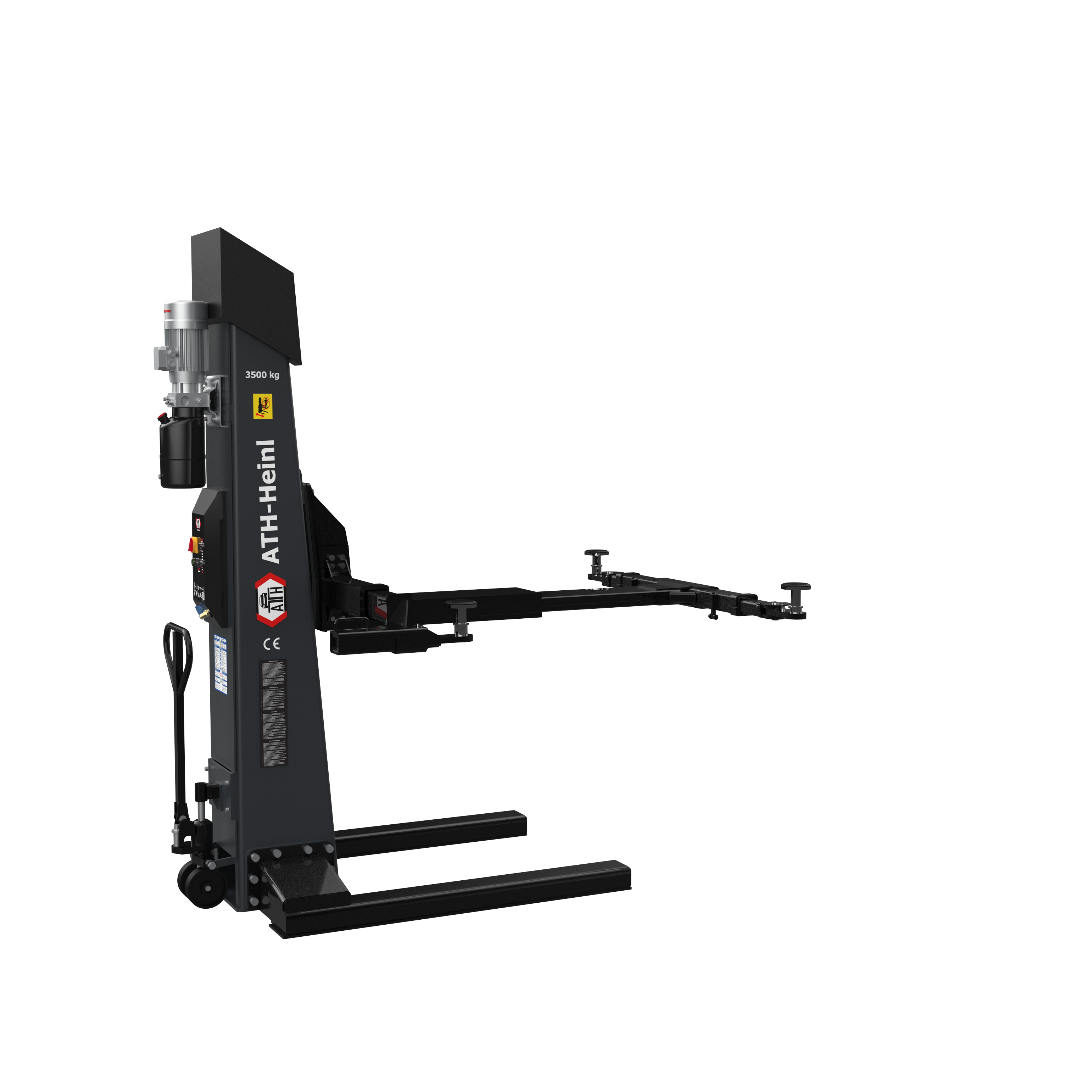

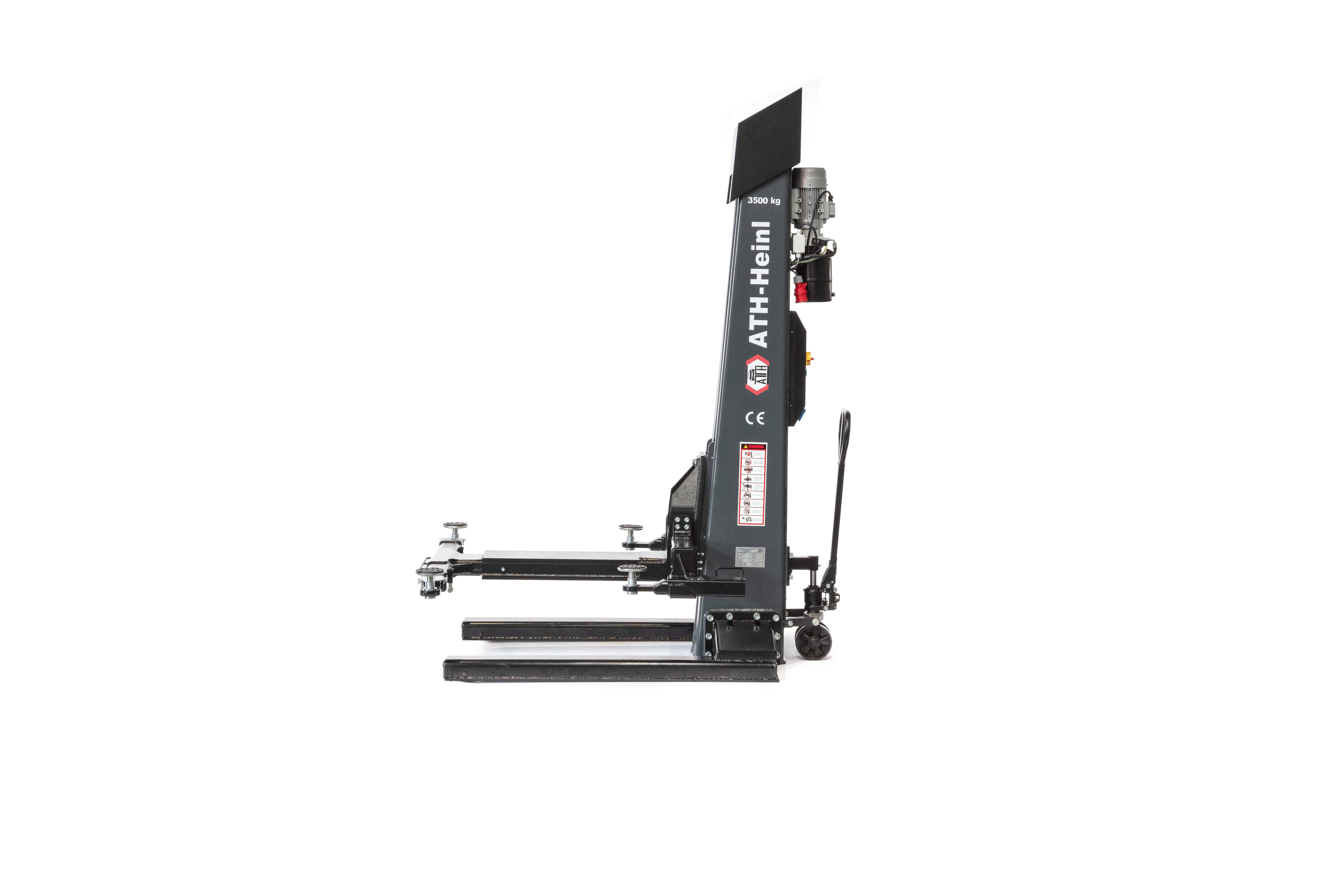

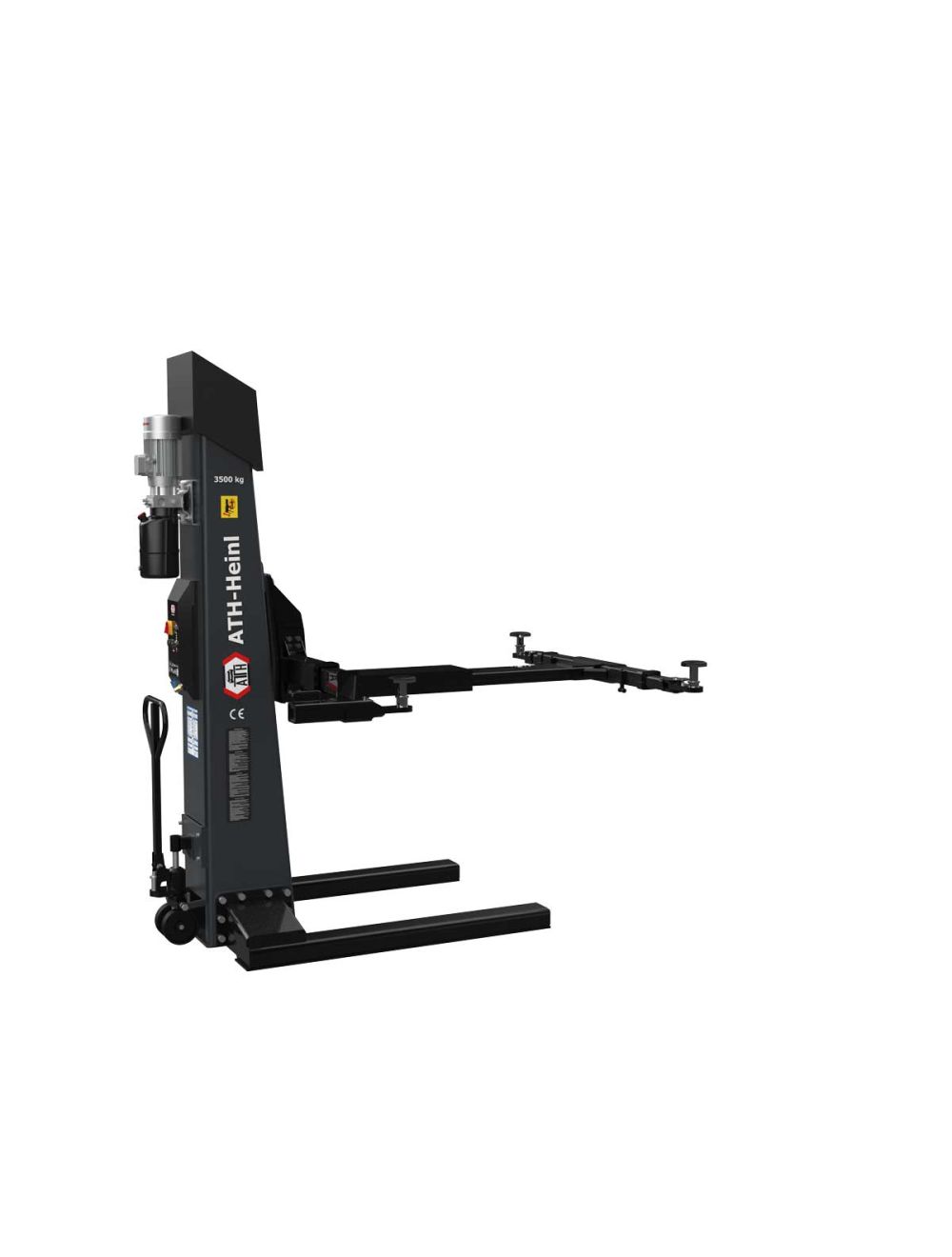

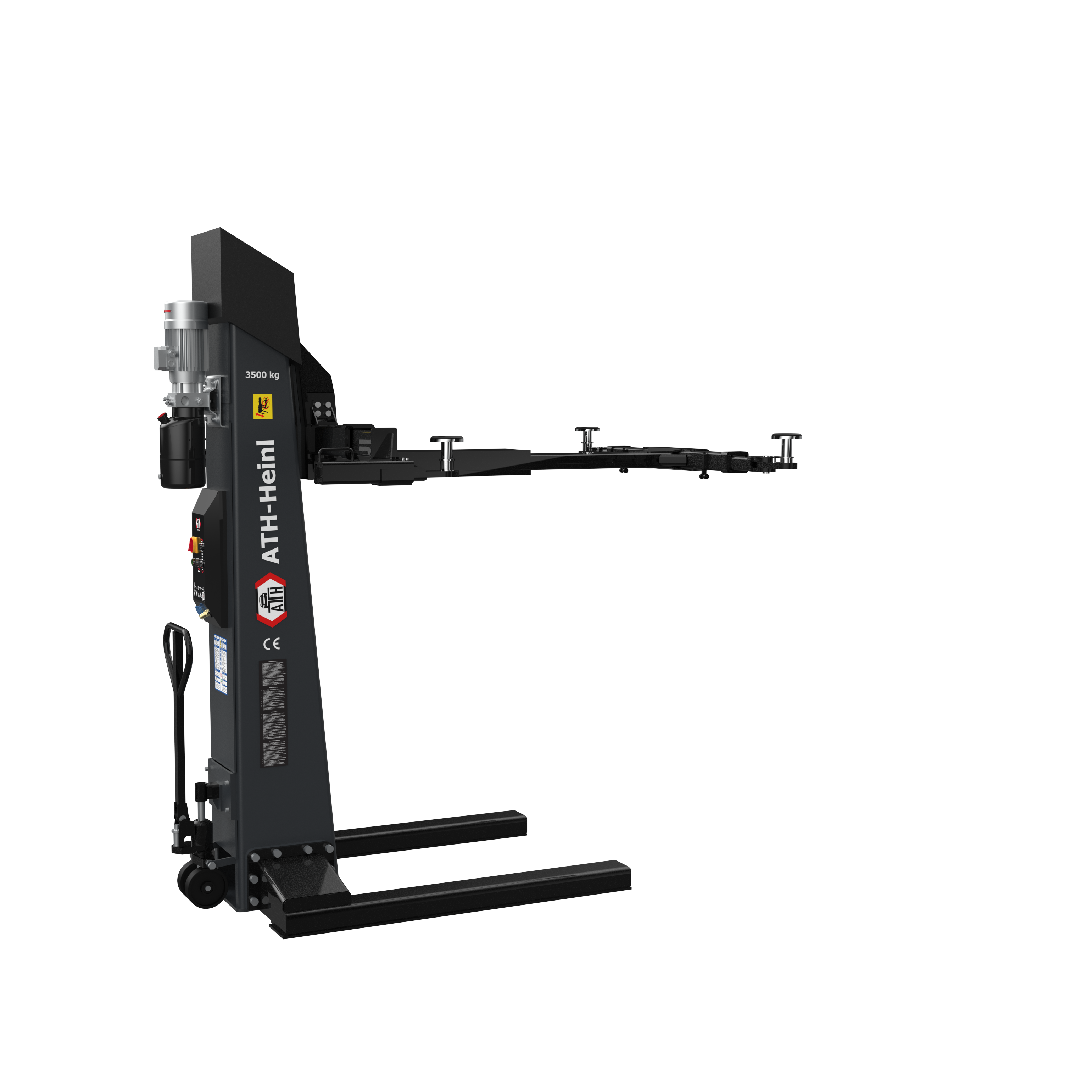

ATH Single Lift 35M
€7,205.88
plus assembly and freight
€8,575.00
Availability:
In stock
SKU
612013
- Electro-hydraulic 1-post lift with quick lift unit and load-dependent lowering function
- Central control unit with energy set (230V / 12V)
- Mobile use with the help of the high-quality wheel set, no attachment to the floor
- Safety Control: Electromagnetic safety locks that automatically unlock with lifting and lowering
- Safety Lock: ability to lock the load on to the safety mechanism

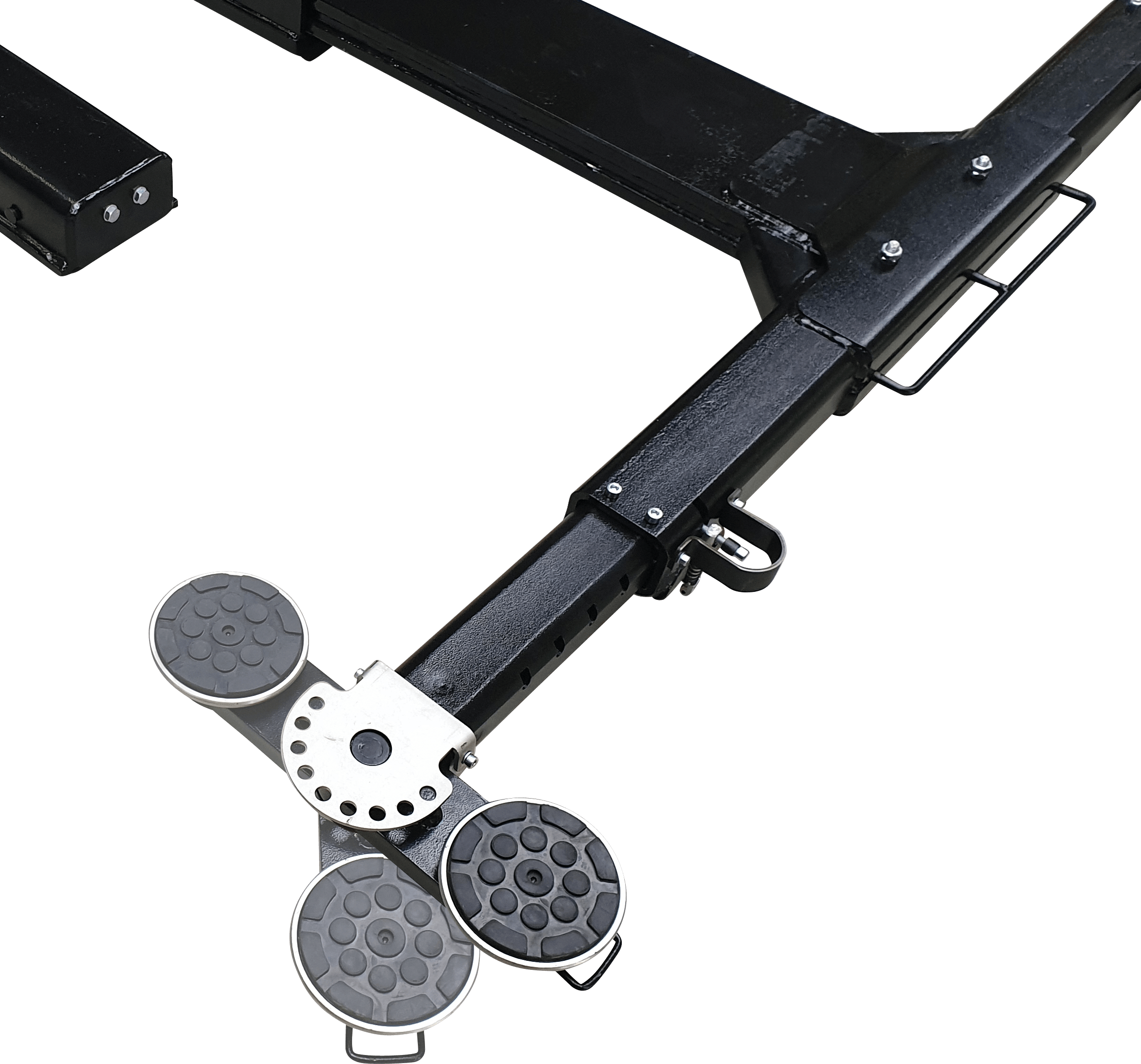

- Multifunctional mounting via the pull-out crossbeam, double telescopic support arms and support plates including support plate extension 4 x 80mm
| Color | Anthrazitgrau |
|---|---|
| Rated load capacity | 3,5 t |

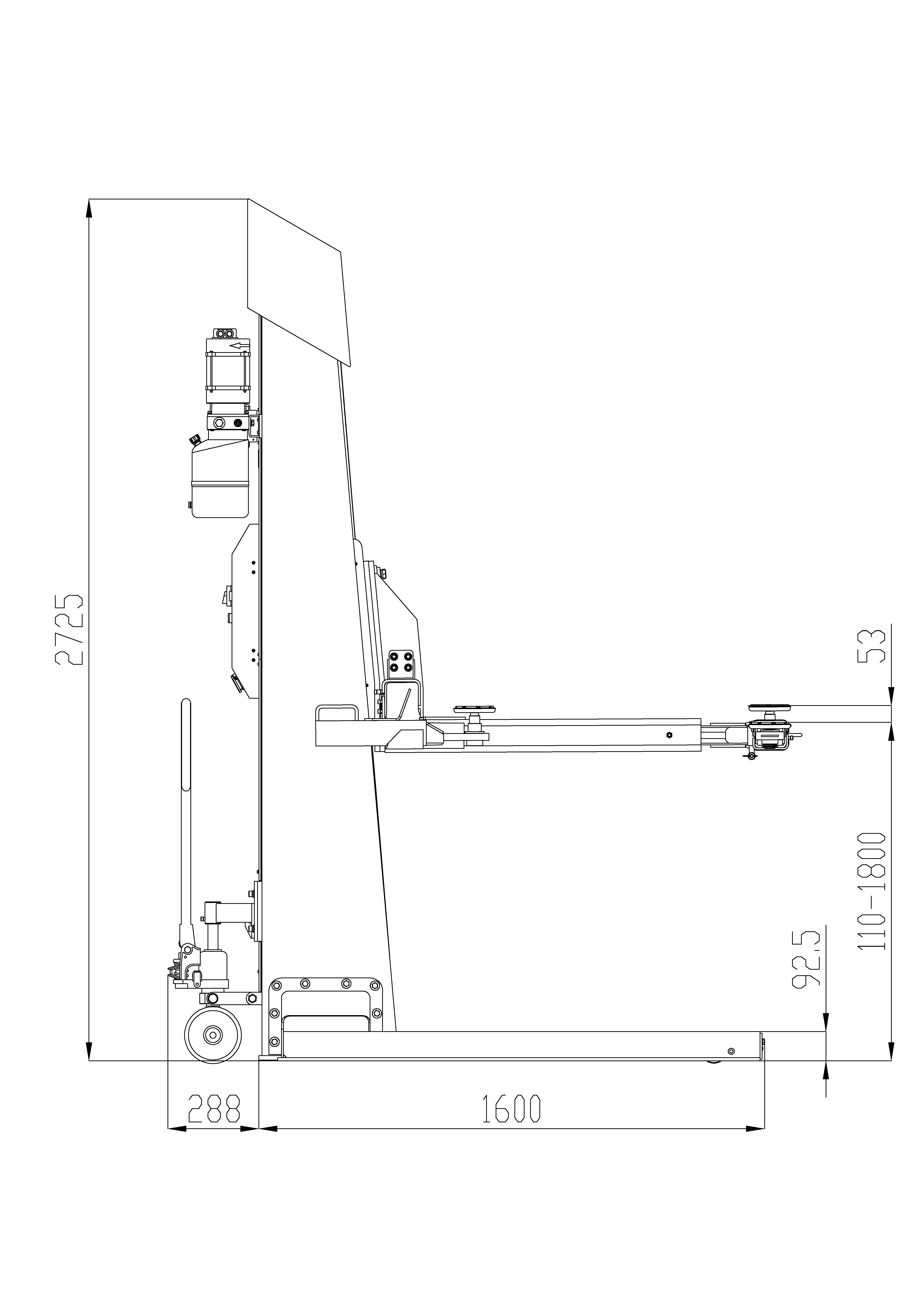

| Lifting height max. | 1.853 mm |
| Overall height | 2.700 mm |

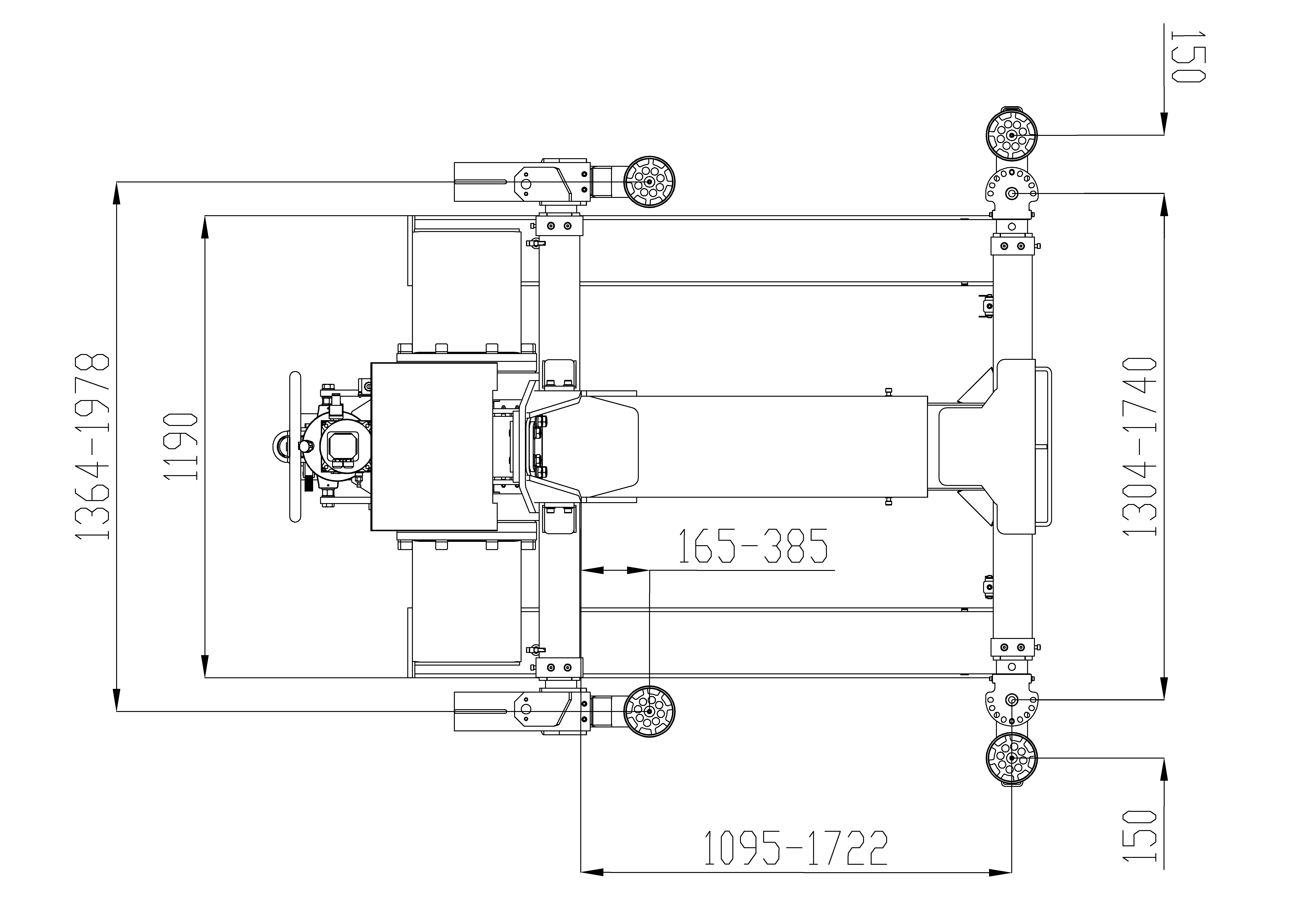

| Overall width | 1.356 – 2.215 mm |
| Support arms parts | 3 |
| Driving power | 3 kW |
| Lifting/Lowering time | ca. 45 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 2.500 x 2.500 x 200 mm |
