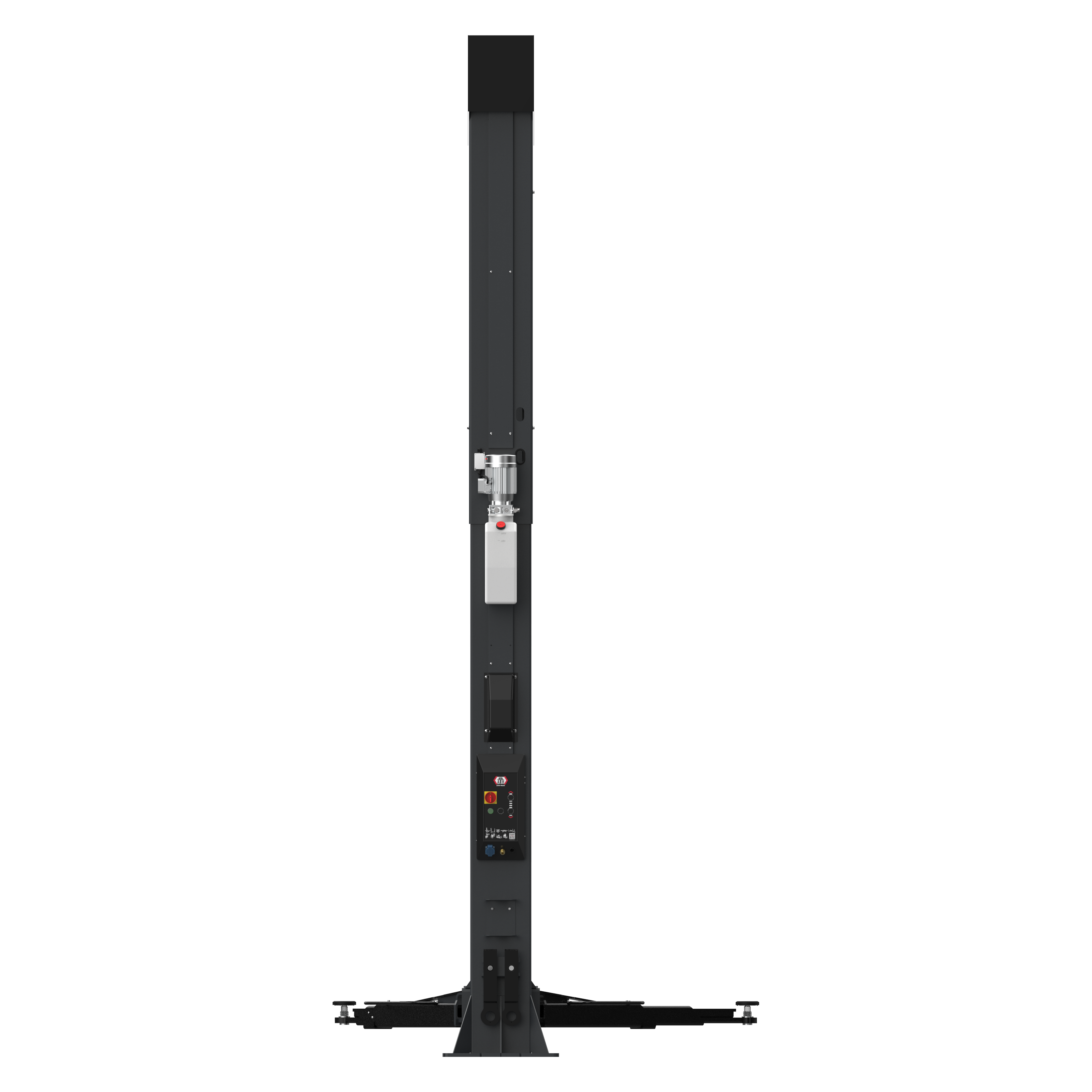

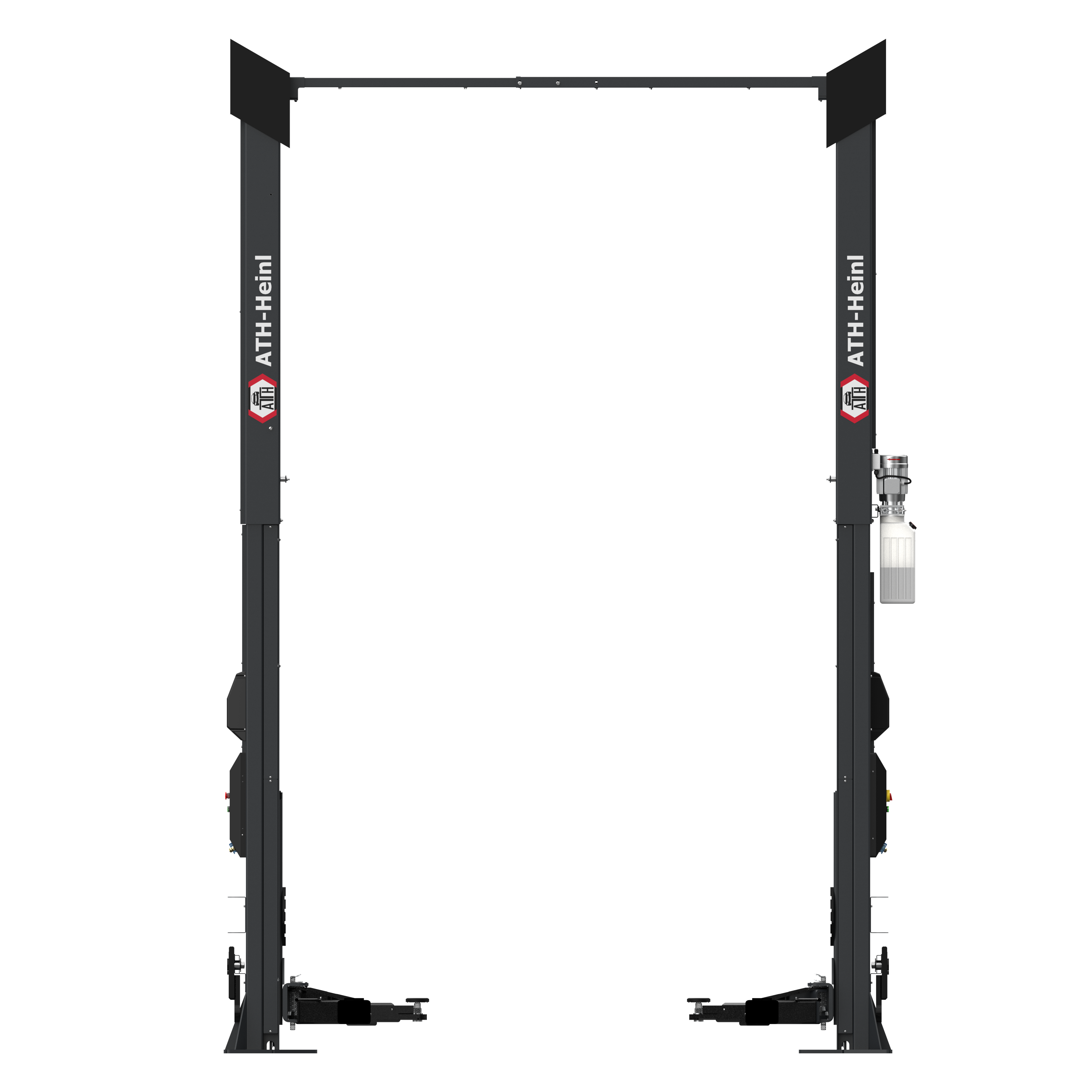

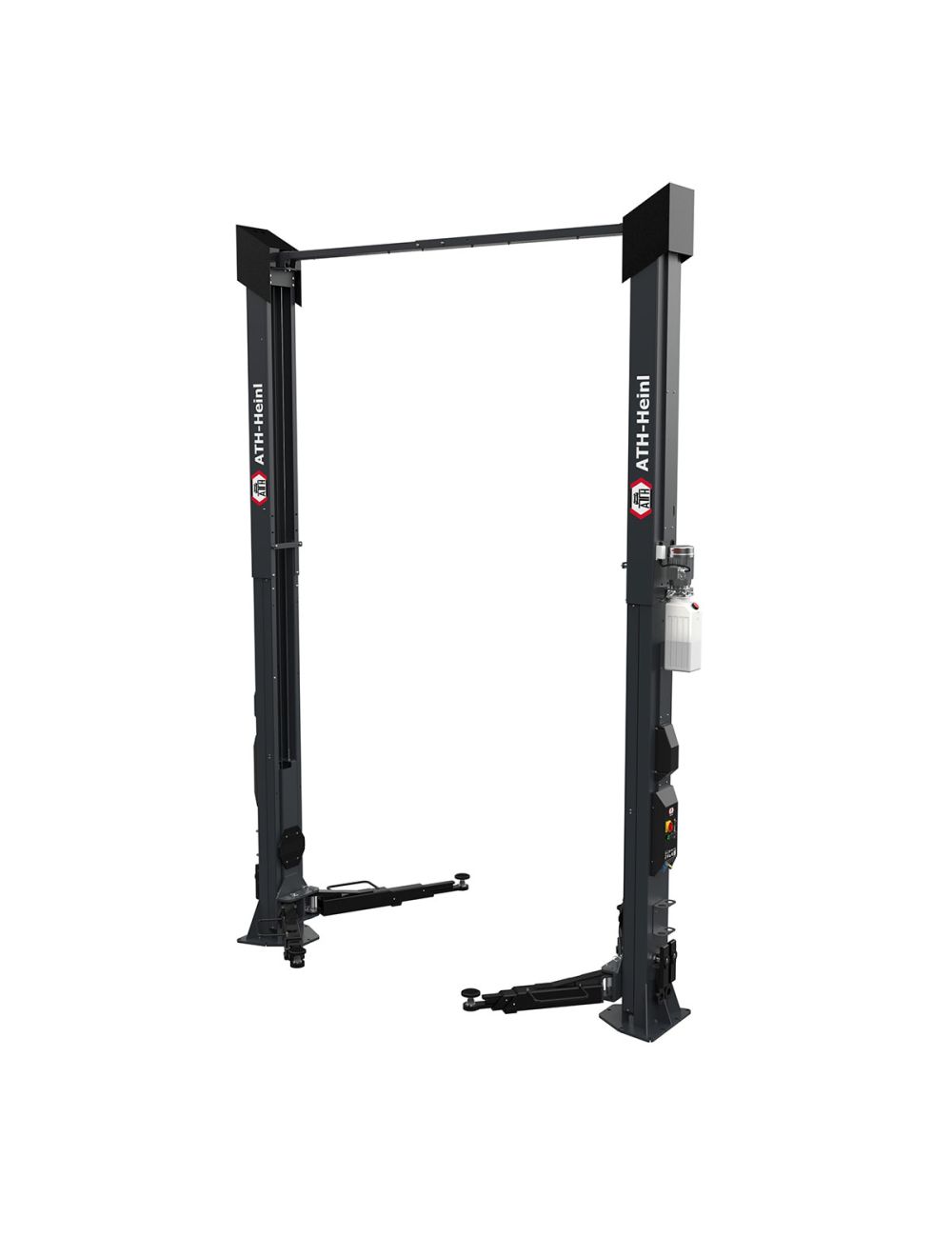

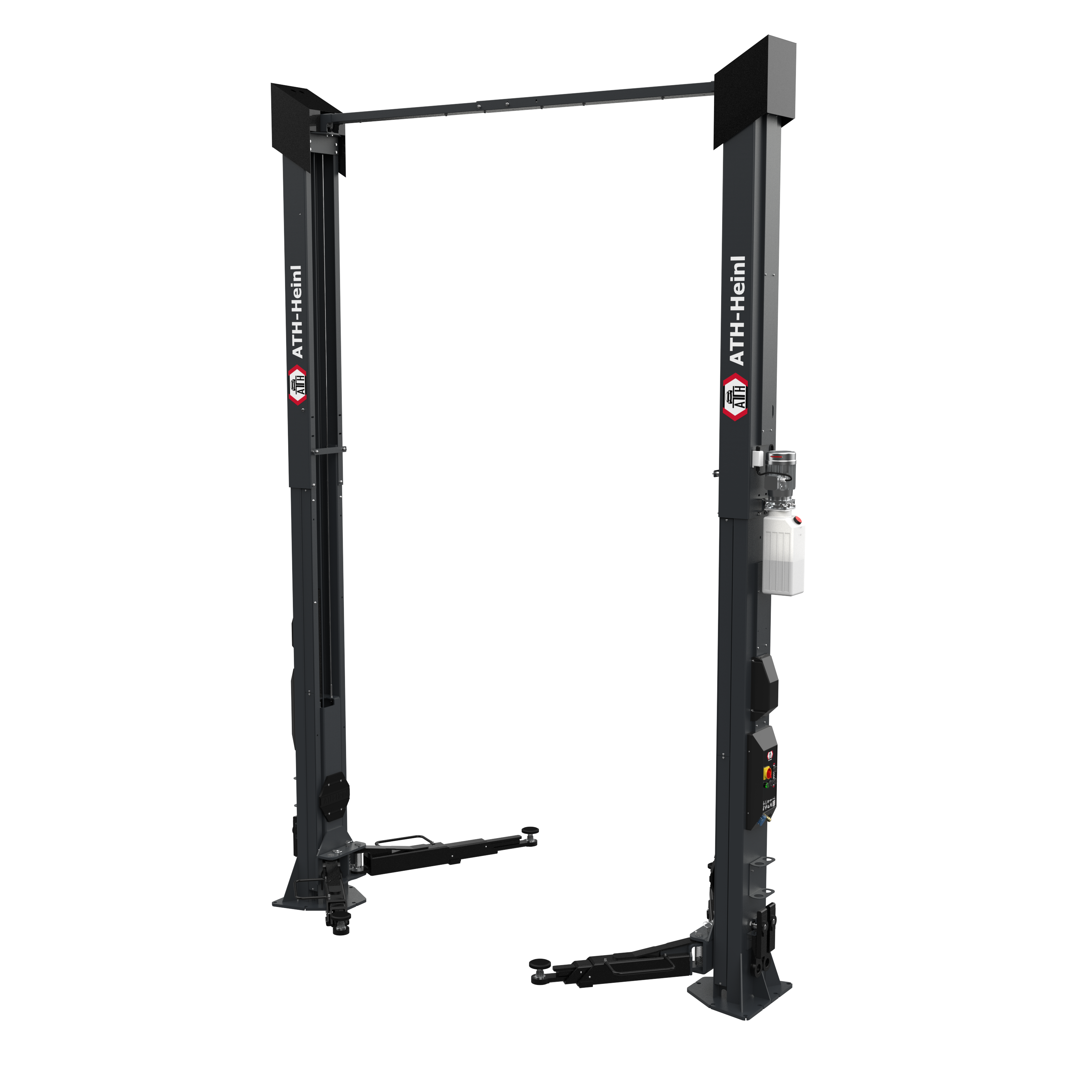

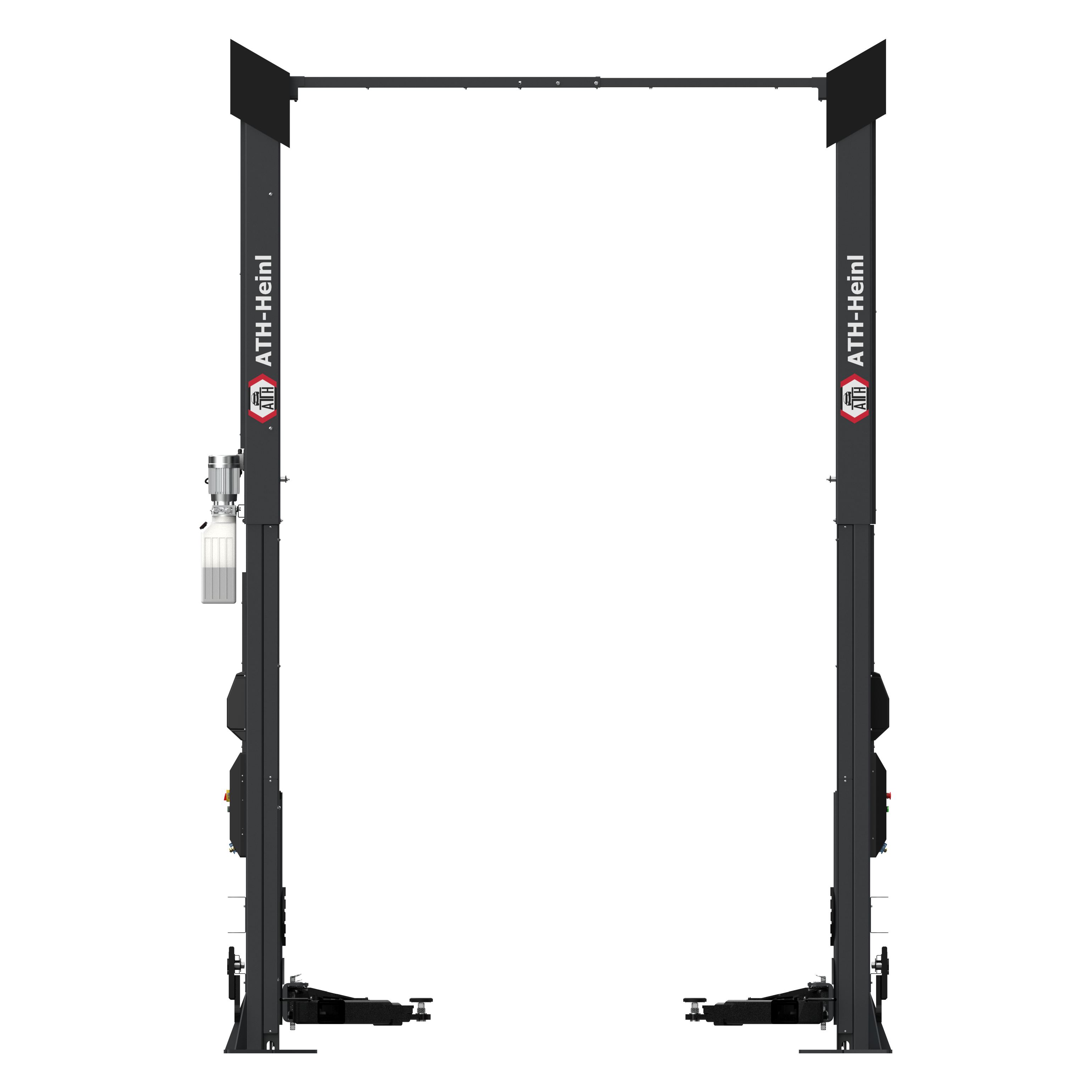

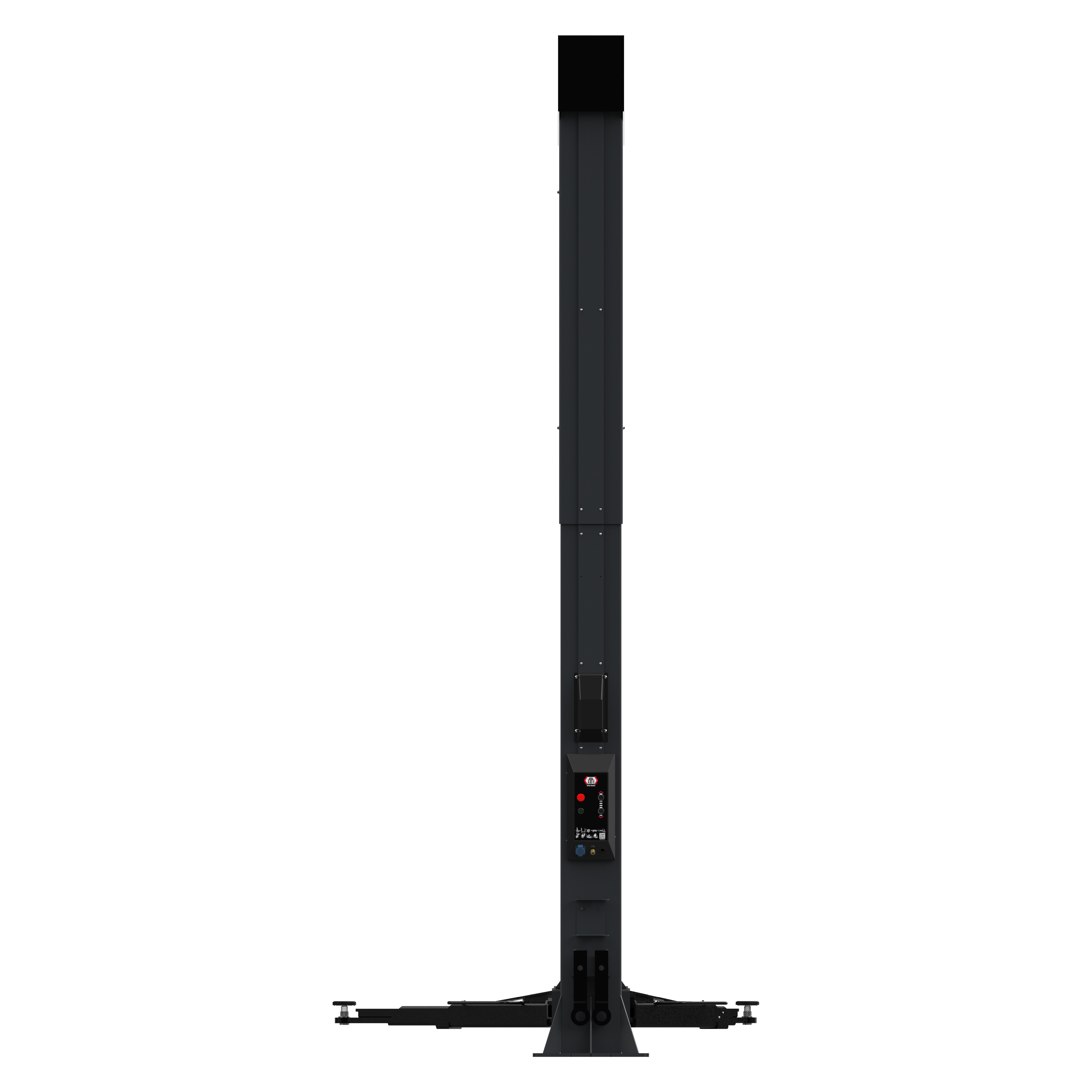

ATH Comfort Lift 2.55XL
€6,886.55
plus assembly and freight
€8,194.99
Availability:
Out of stock
SKU
622222
- Electro-hydraulic 2-post lift with quick lift unit and load-dependent lowering function

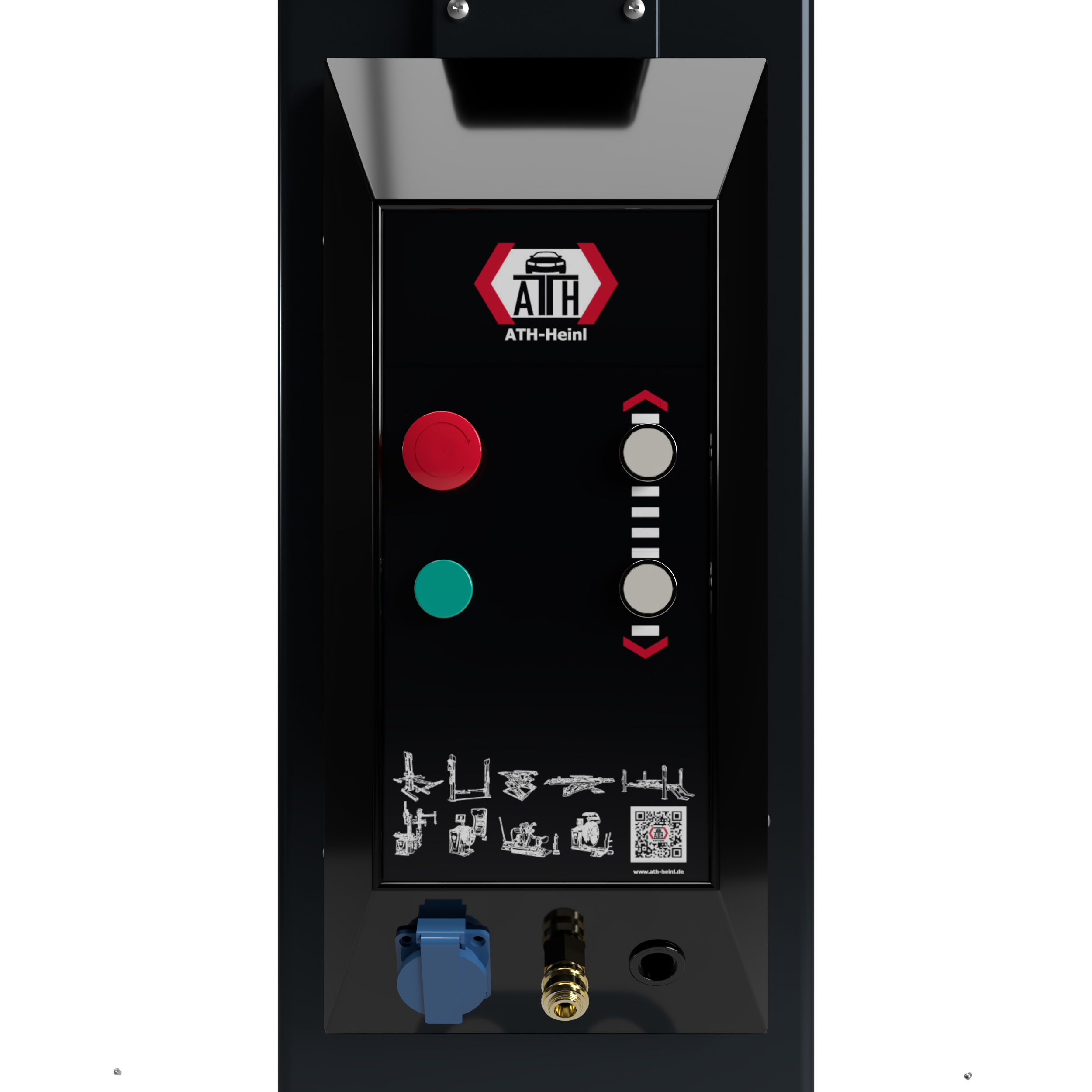

- Two control units for flexible use on both columns
- Energy set (230V / compressed air / 12V) on both operating units
- Safety Control: Electromagnetic safety locks that automatically unlock with lifting and lowering
- Safety Lock: ability to lock the load on to the safety mechanism

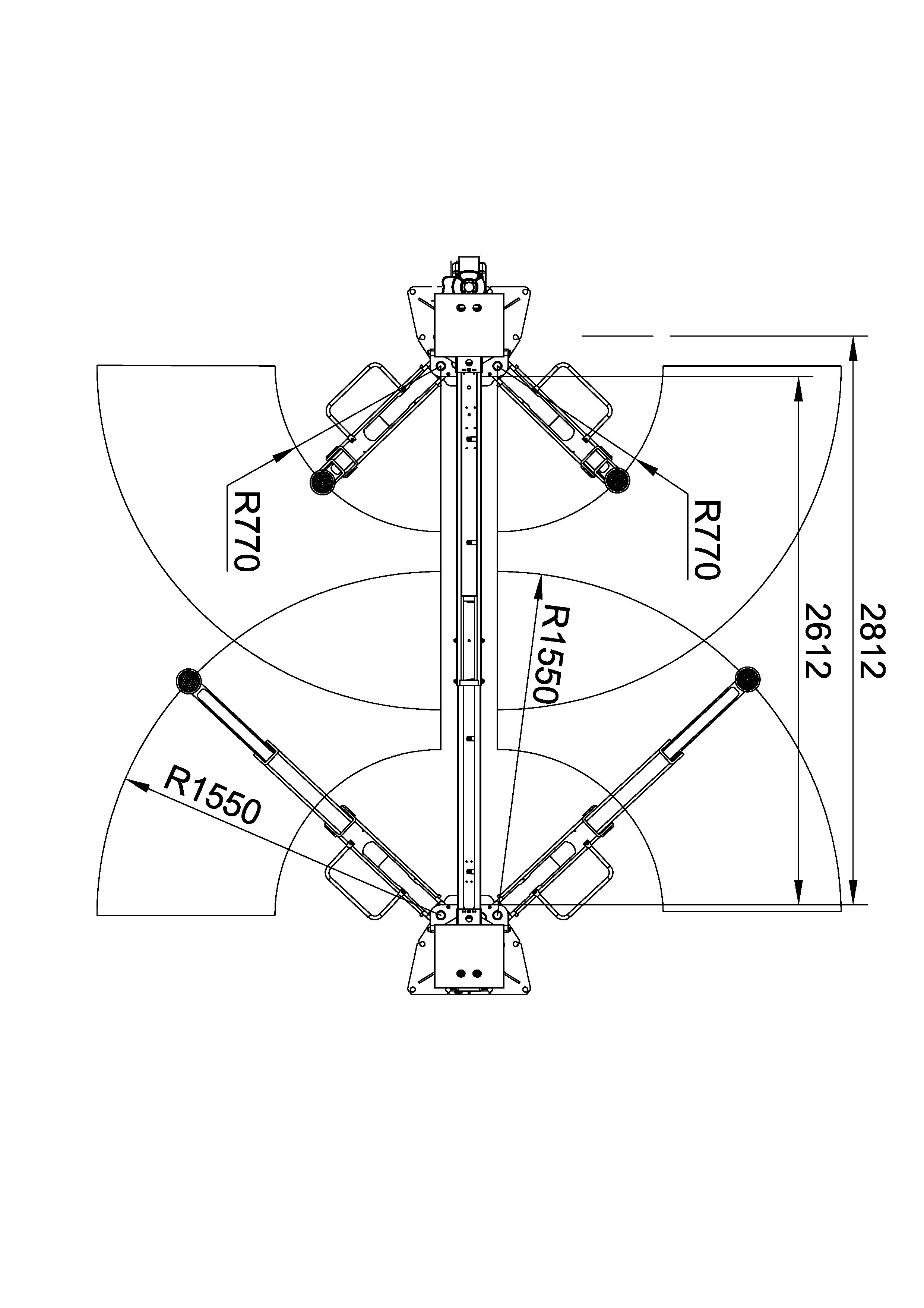

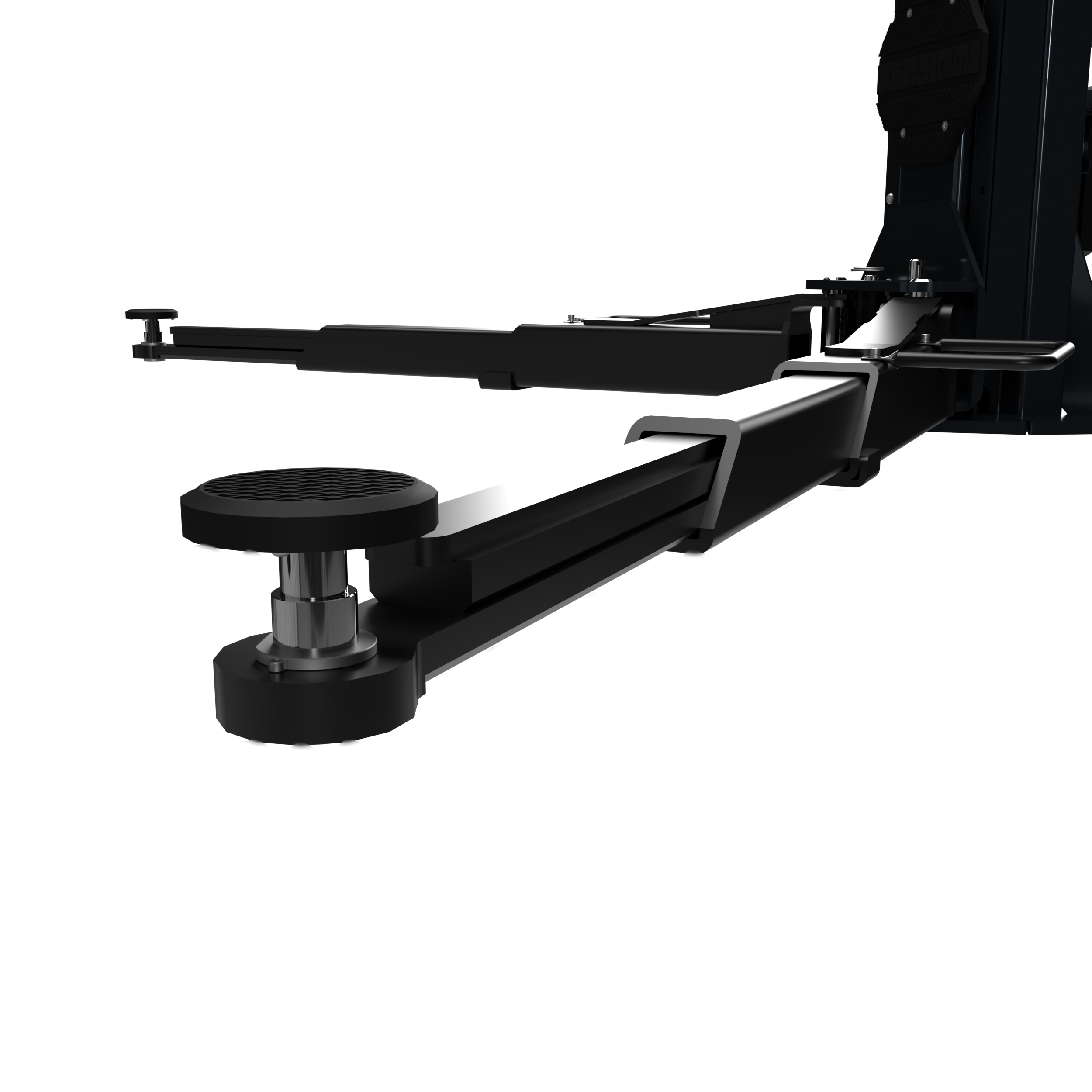

- Multifunctional mounting via 3-part support arms and double telescopic support plates
- Top-running crossbar with variable height adjustment

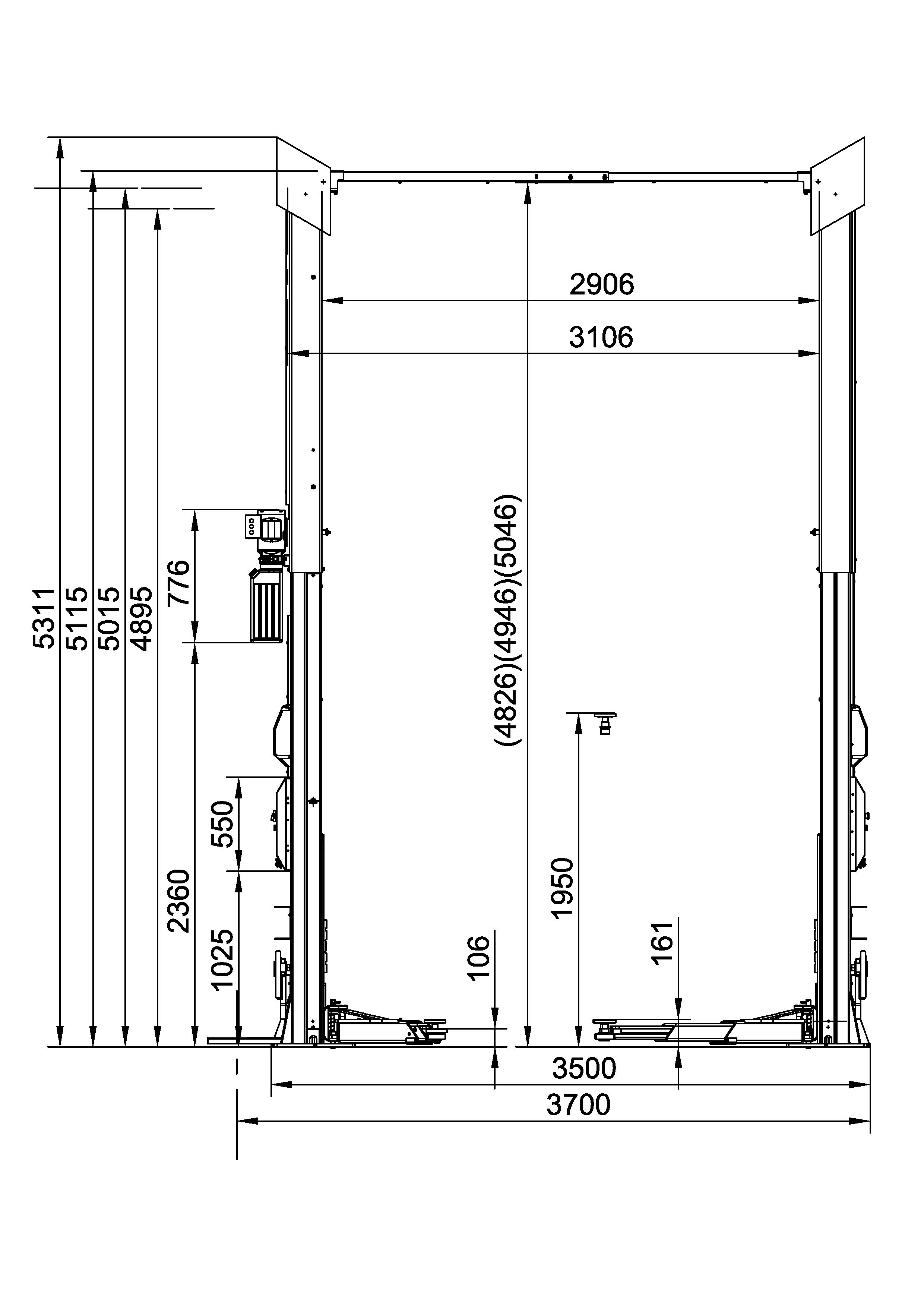

| Rated load capacity | 5.500 kg |
|---|---|
| Lifting height max. | 1.950 mm |
| Drive-through width | 2.650 mm |
| Overall width | 3.500 mm |
| Overall height | 5.311 mm |
| Support arms parts | 3 |
| Driving power | 3 kW |
| Lifting/Lowering time | ca. 40 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C25/30 4.500 x 2.000 x 220 mm |
