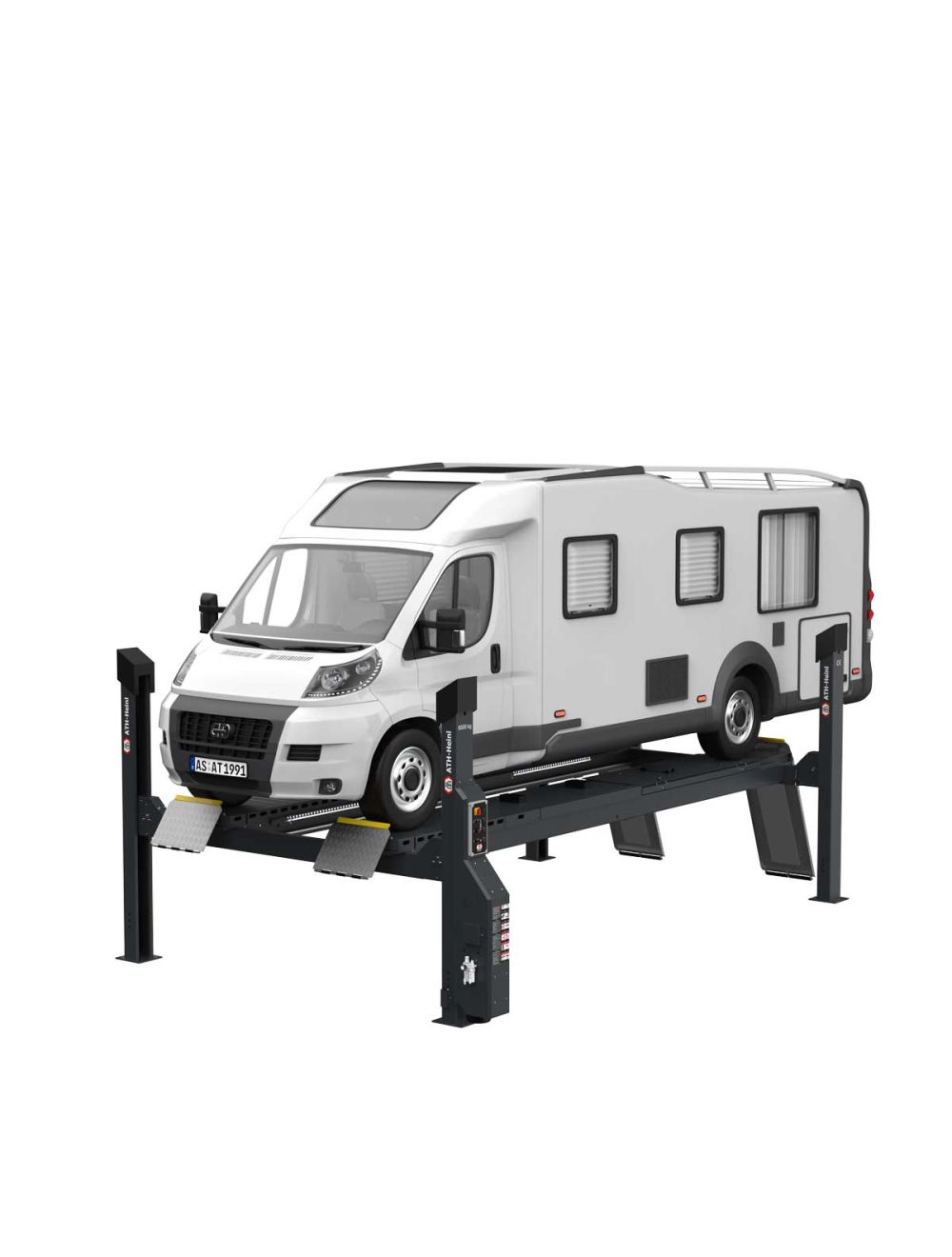

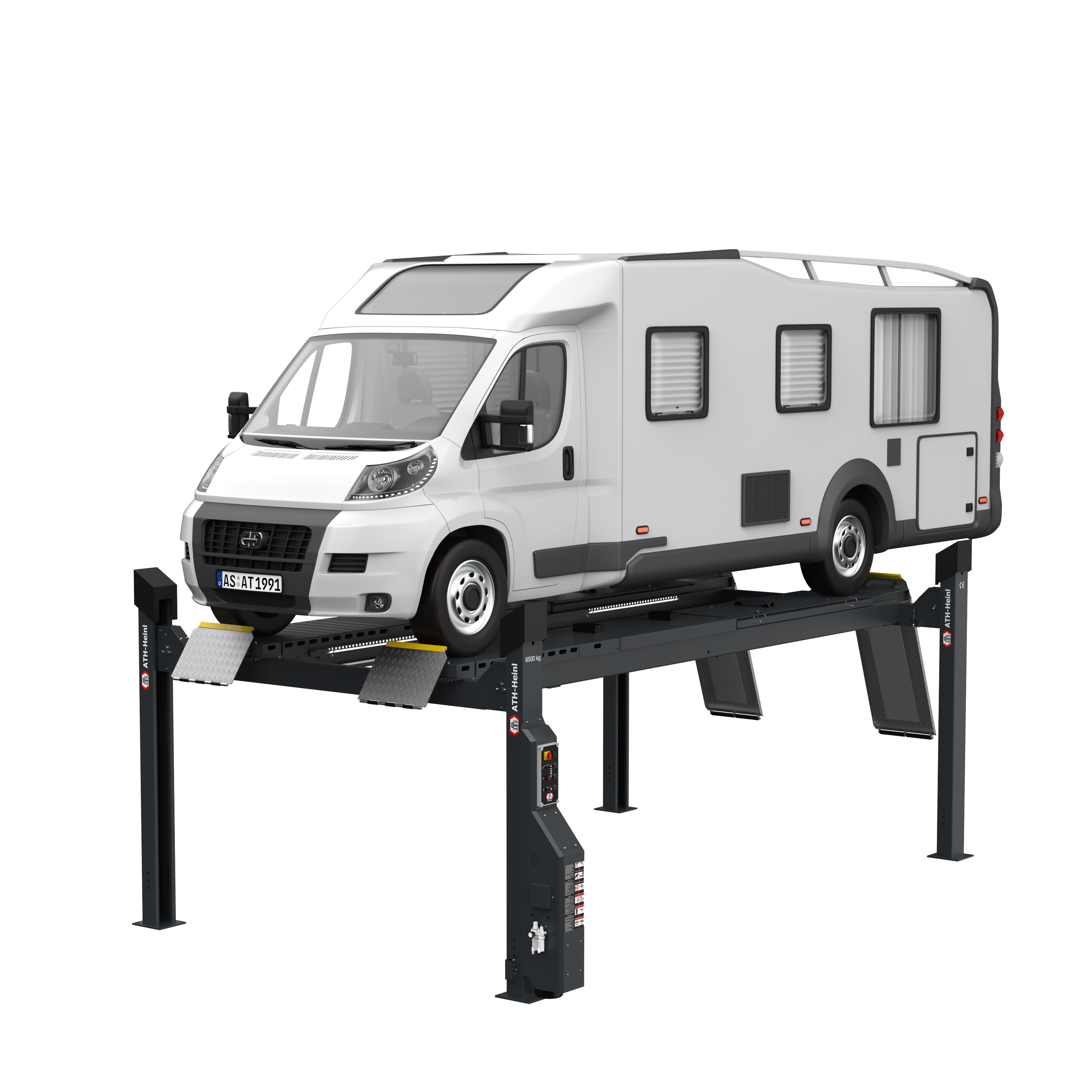

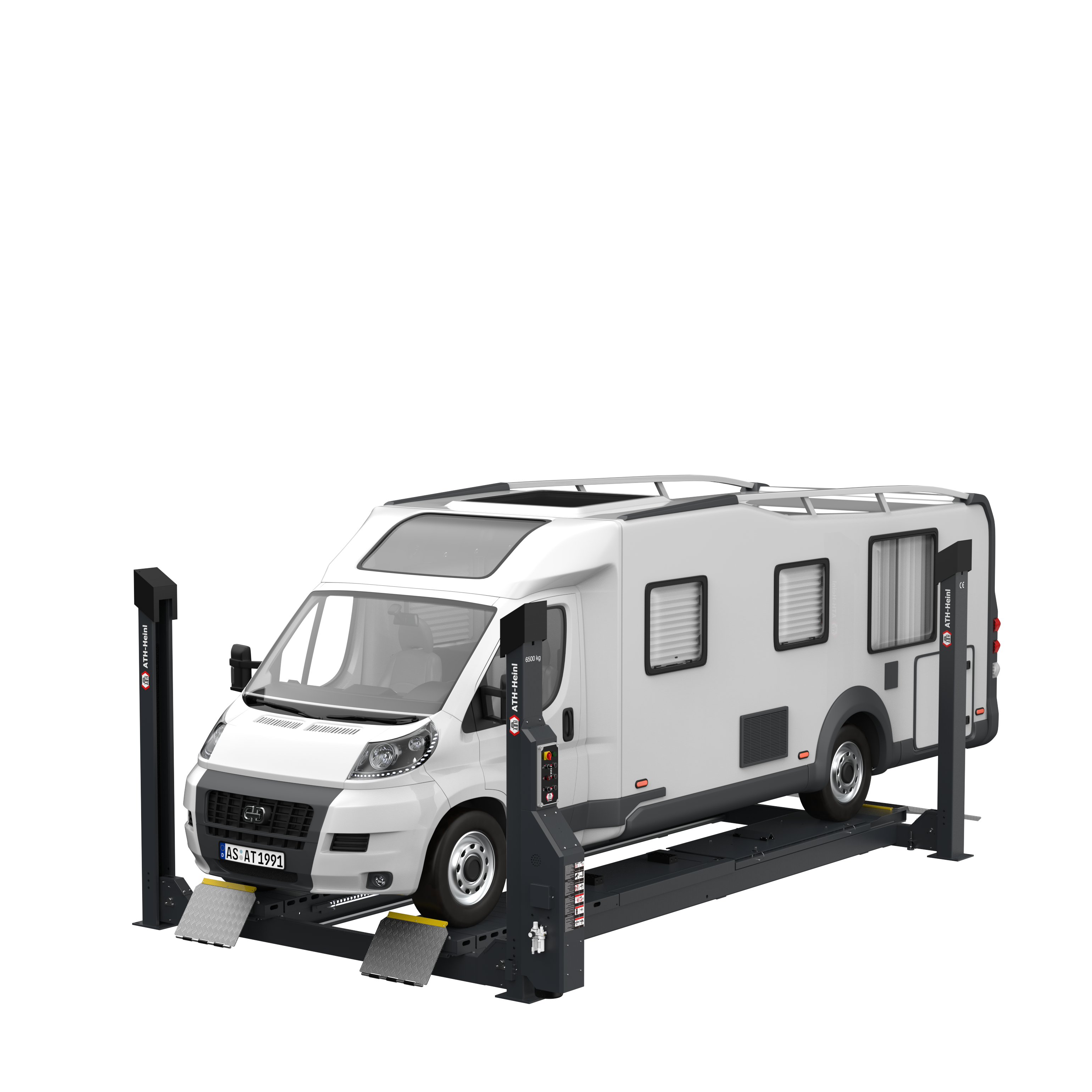

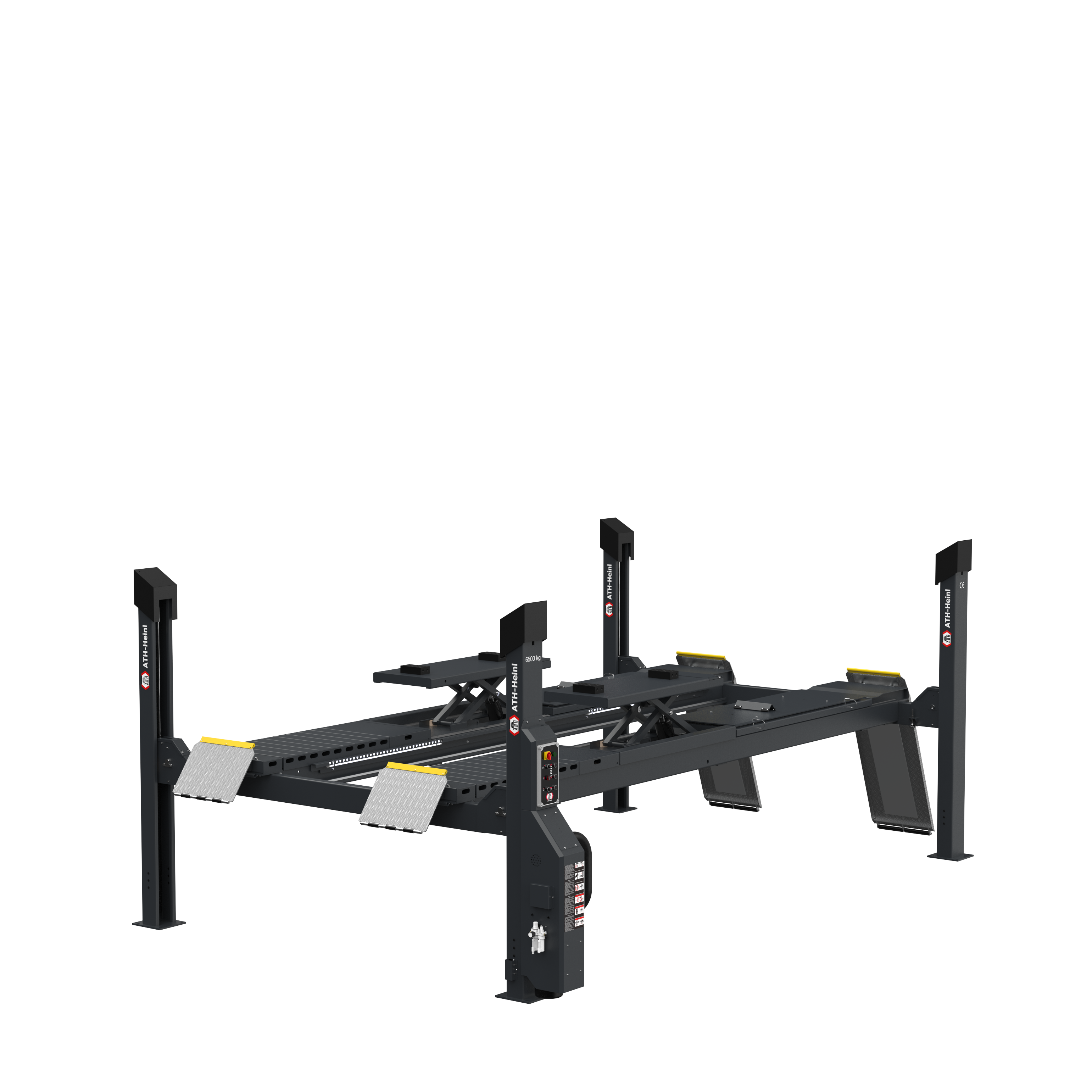

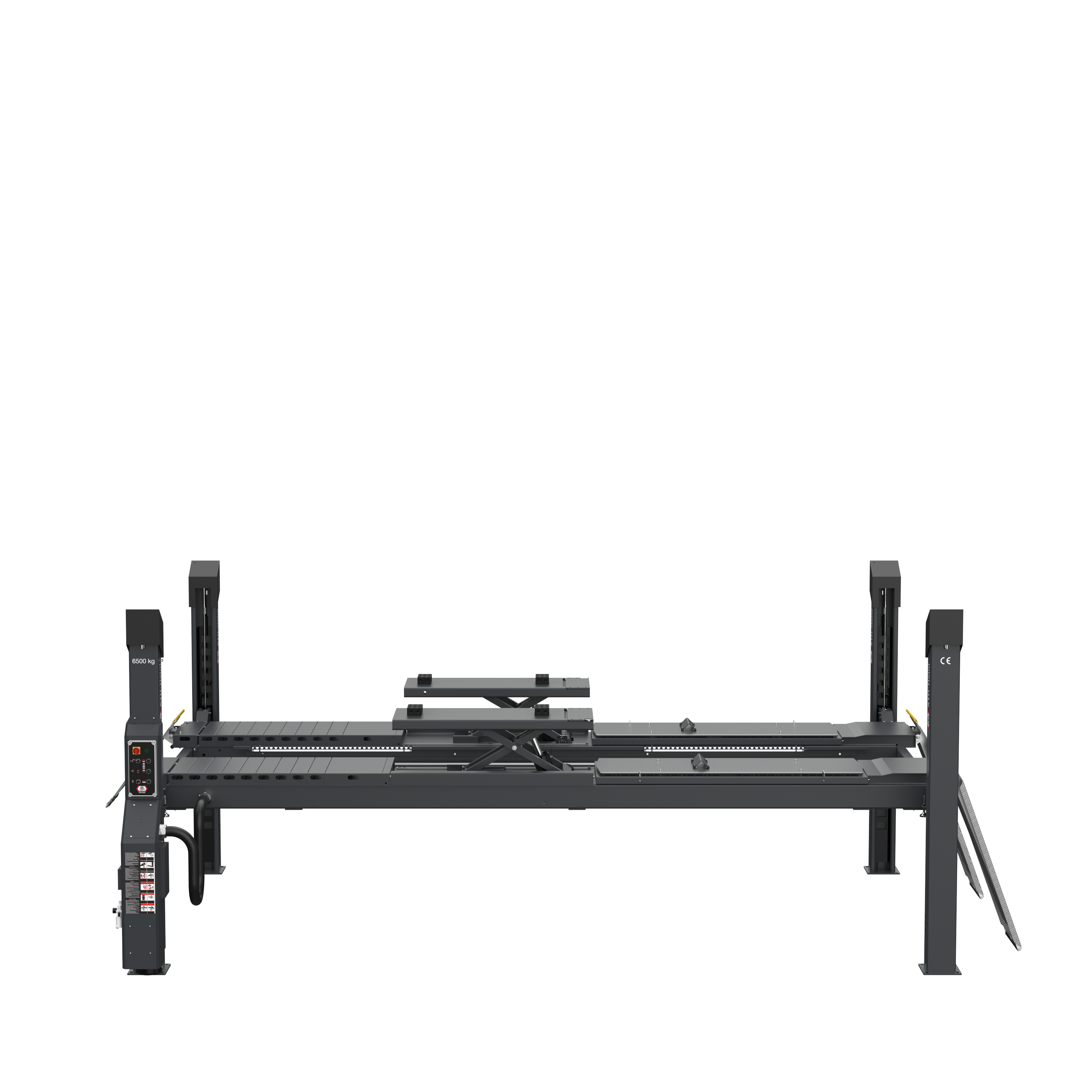

ATH Four Lift® 65HAP
€15,122.00
plus assembly and freight
€17,995.18
Availability:
In stock
SKU
650042
- Electro-hydraulic 4-post lift with quick-lifting unit and load-dependent lowering function
- Central control unit, including unit cover
- ATH Four Lift 65HAP: Flat runway with integrated Free wheel lift (Load Capacity 3,5t) and wheel alignment kit
- Precisely level-able Platforms due adjustable ratchet bars
- Safety Control: Electro-pneumatic safety latches that automatically unlock during lifting and lowering
- Safety Lock: Control for lowering the load onto the safety latches
- Multifunctional pick-up via slidable runways
- Perfect platform protection made of special polymer and double powder coating

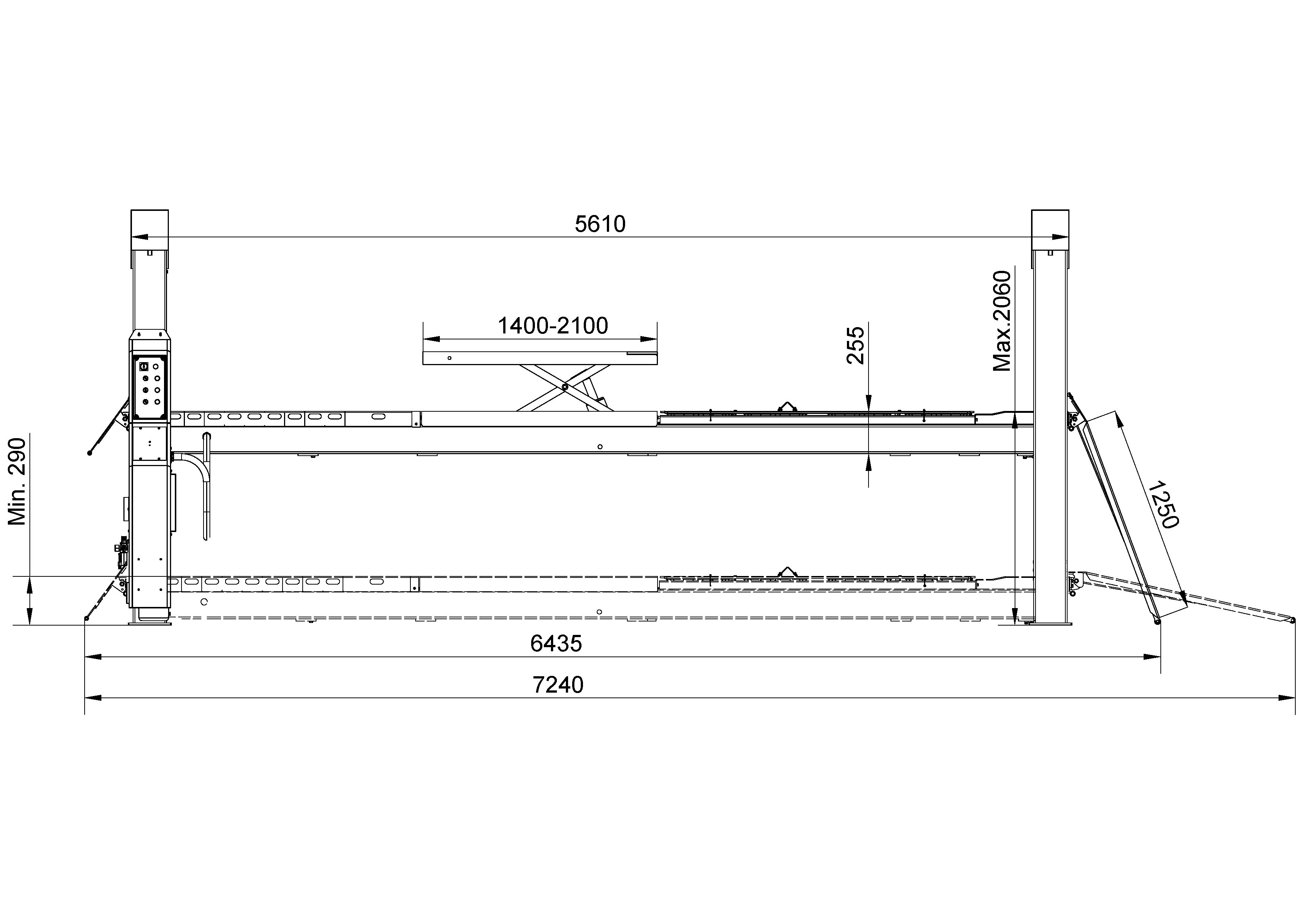

| Color | Anthrazitgrau / Schwarz |
|---|---|
| Rated load capacity | 6.500 kg |
| Lifting height max. | 2.060 mm |
| Drive-on-height | 290 mm |
| Total platform length | 5.595 mm |
| Total platform width | 650 mm |
| Driving power | 4 kW |
| Lifting/Lowering time | ca. 45 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 7.400 x 3.900 x 200 mm |
