ATH RG®10-6 WB
ATH RG®10-2 WB
ATH RG®4.0-4 KB
€15,962.19
plus assembly and freight
€18,995.01

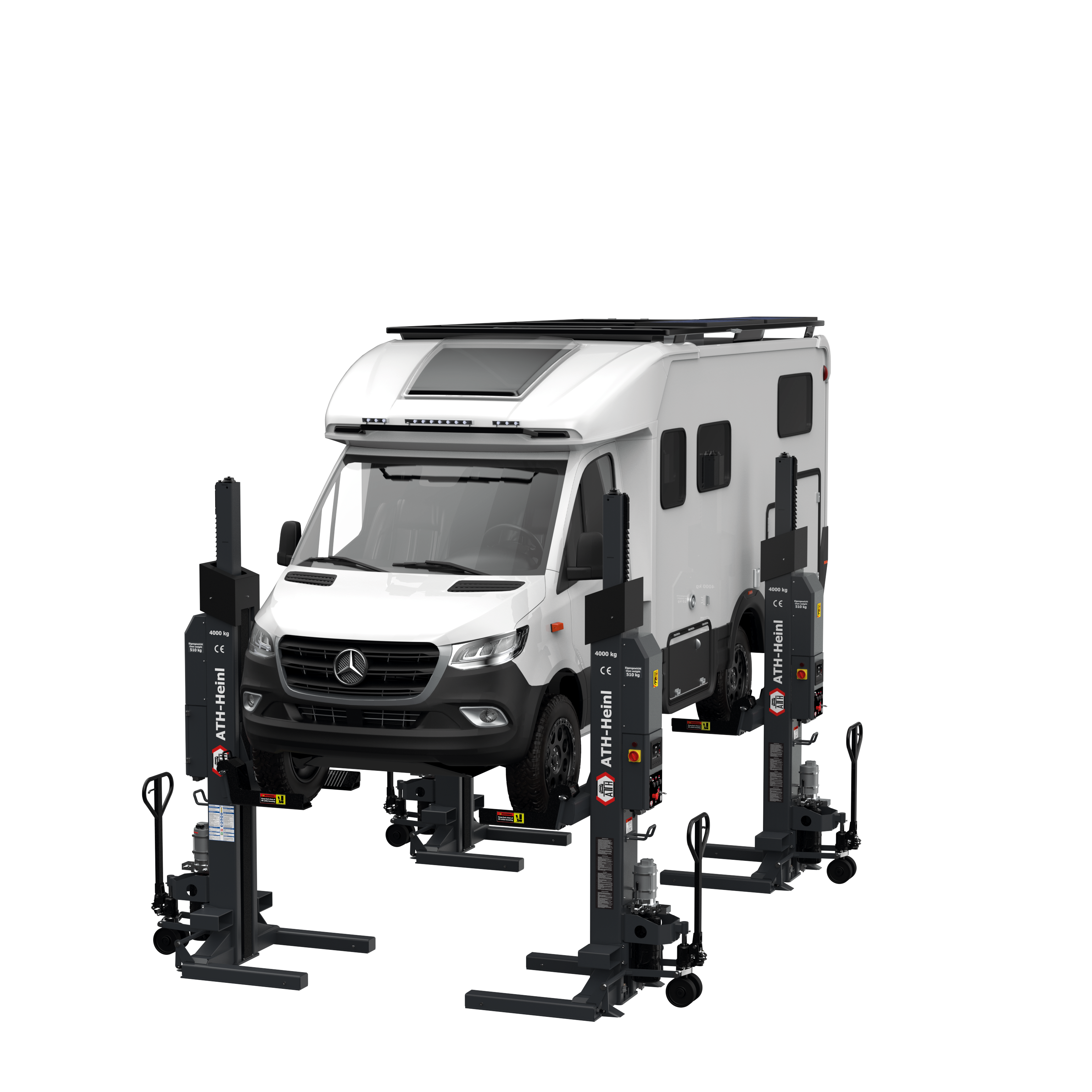

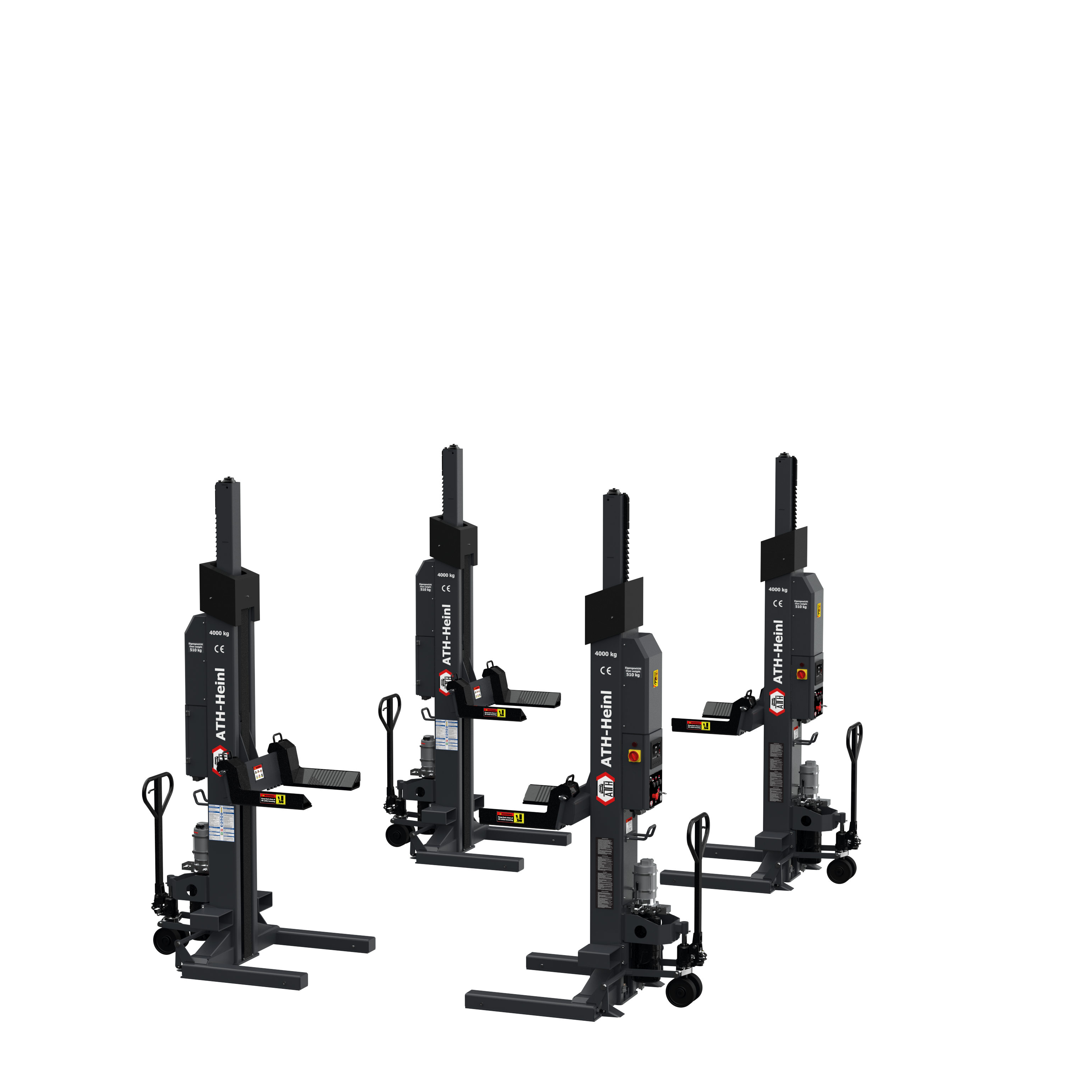

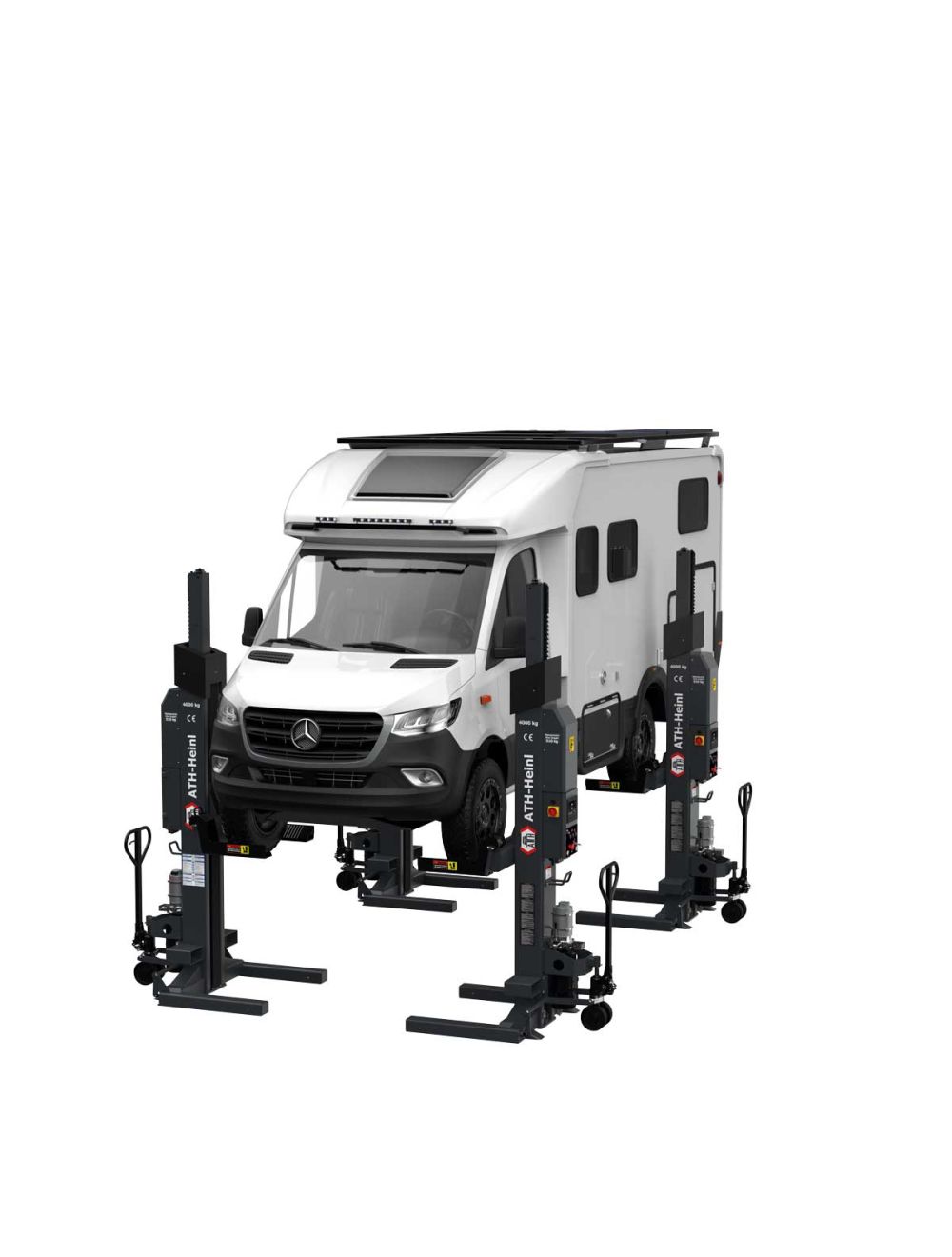

- Electro-hydraulic mobile column lift with cable control
- Operating unit on every column for flexible use
- Control system provides all operating information on every column and allows expansion up to 6 columns
- Mobile kit and forklift pockets on the columns enable quicker repositioning
- Safety Control: Hydraulic check valve, electronic synchronisation monitoring, and electromagnetic safety latches
- Safety Lock: Control for lowering the load onto the safety latches
- Multi-functional pick-up via variable wheel fork with individual adjustment options
More Information
| Rated load capacity |
4.000 kg |
| Lifting height max. |
1.850 mm |
| Overall height |
2.570 mm |
| Column width |
1.100 mm |
| Driving power |
2,6 kW |
| Lifting/Lowering time |
ca. 55 s |
| Power supply voltage |
3x 400V / C16A |
| Column communication |
cable-connected |
| Concrete strength |
min. C20/25 Thickness: 200 mm |
