ATH RG5.5-4 WB
€21,840.34
plus assembly and freight
€25,990.00
Availability:
In stock
SKU
710036

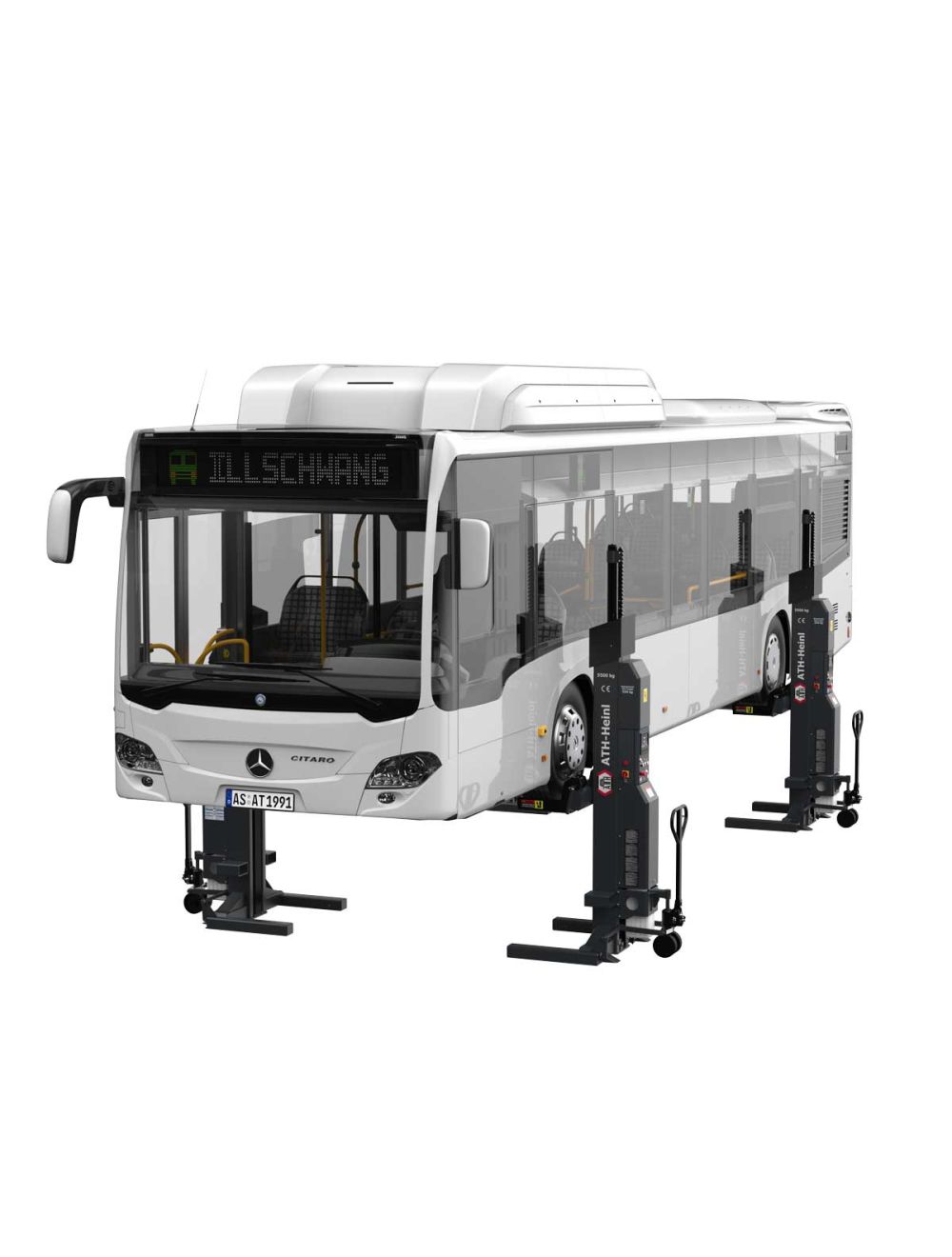

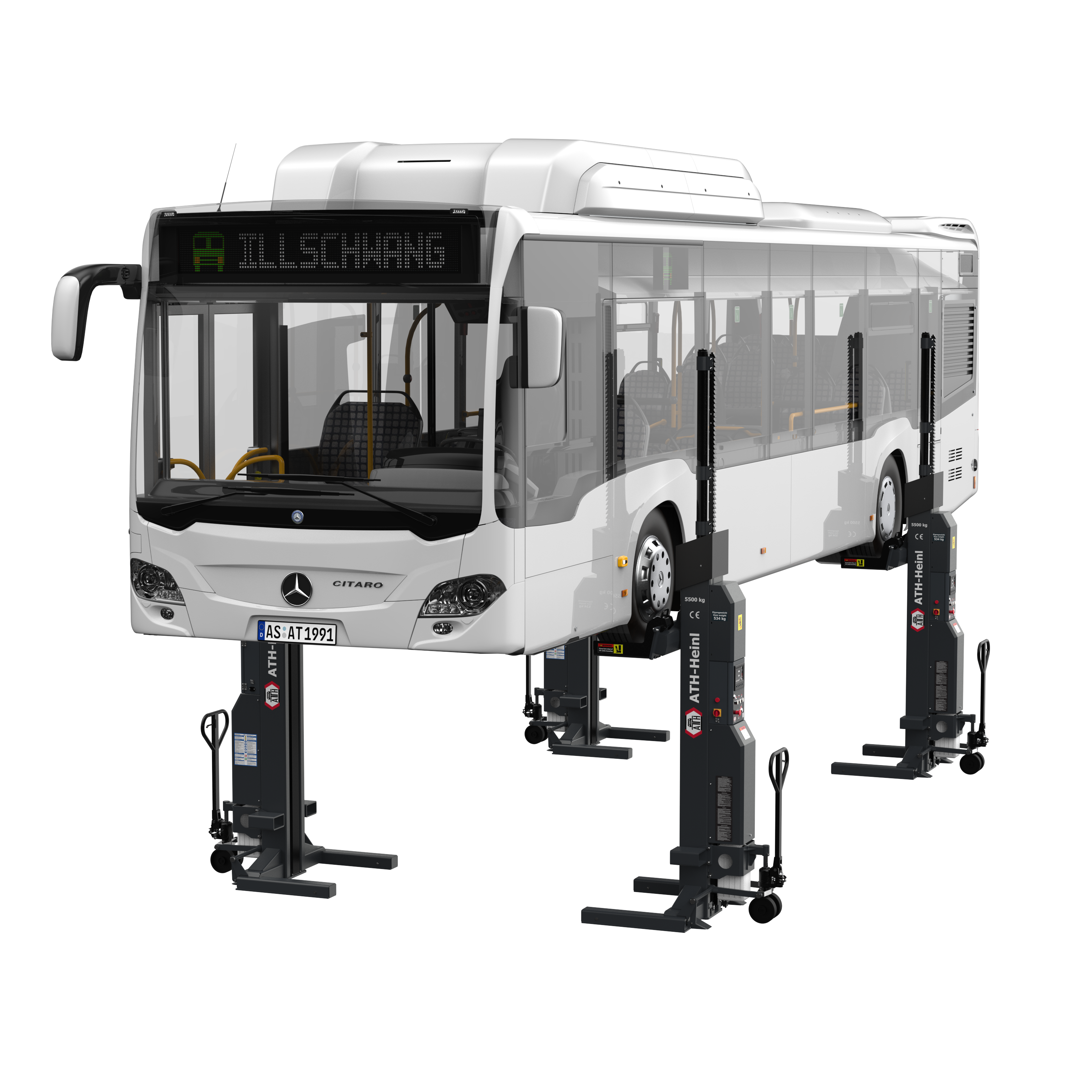

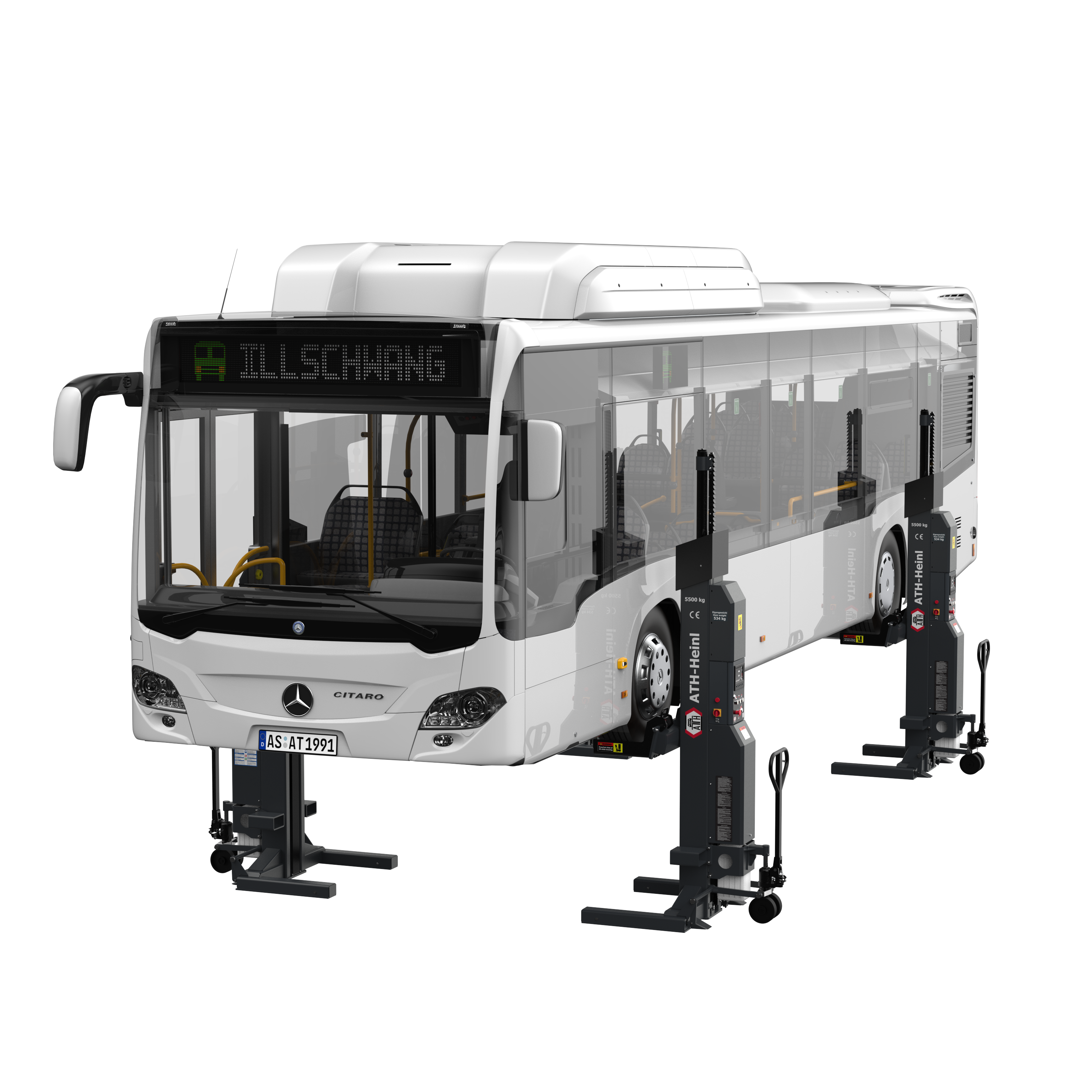

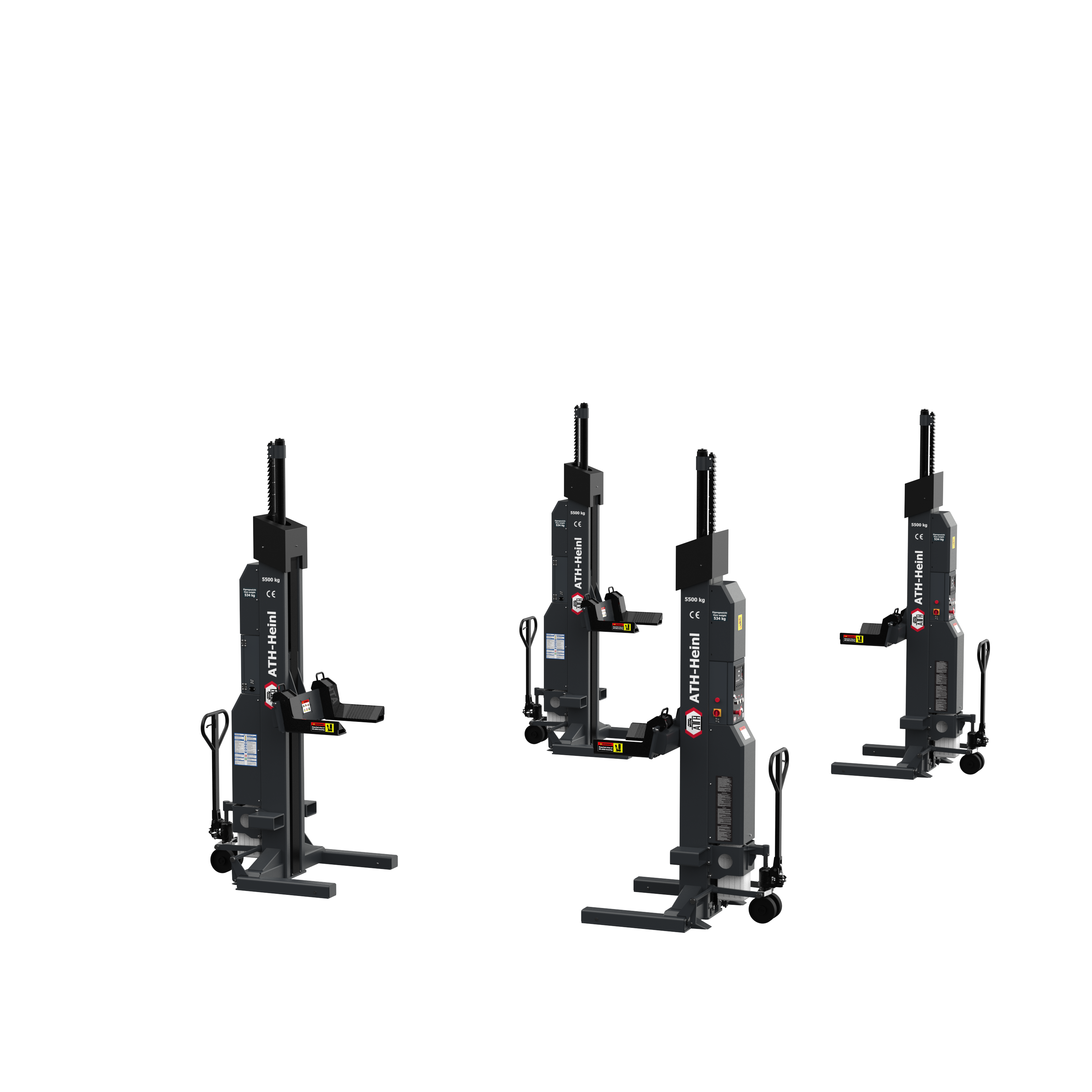

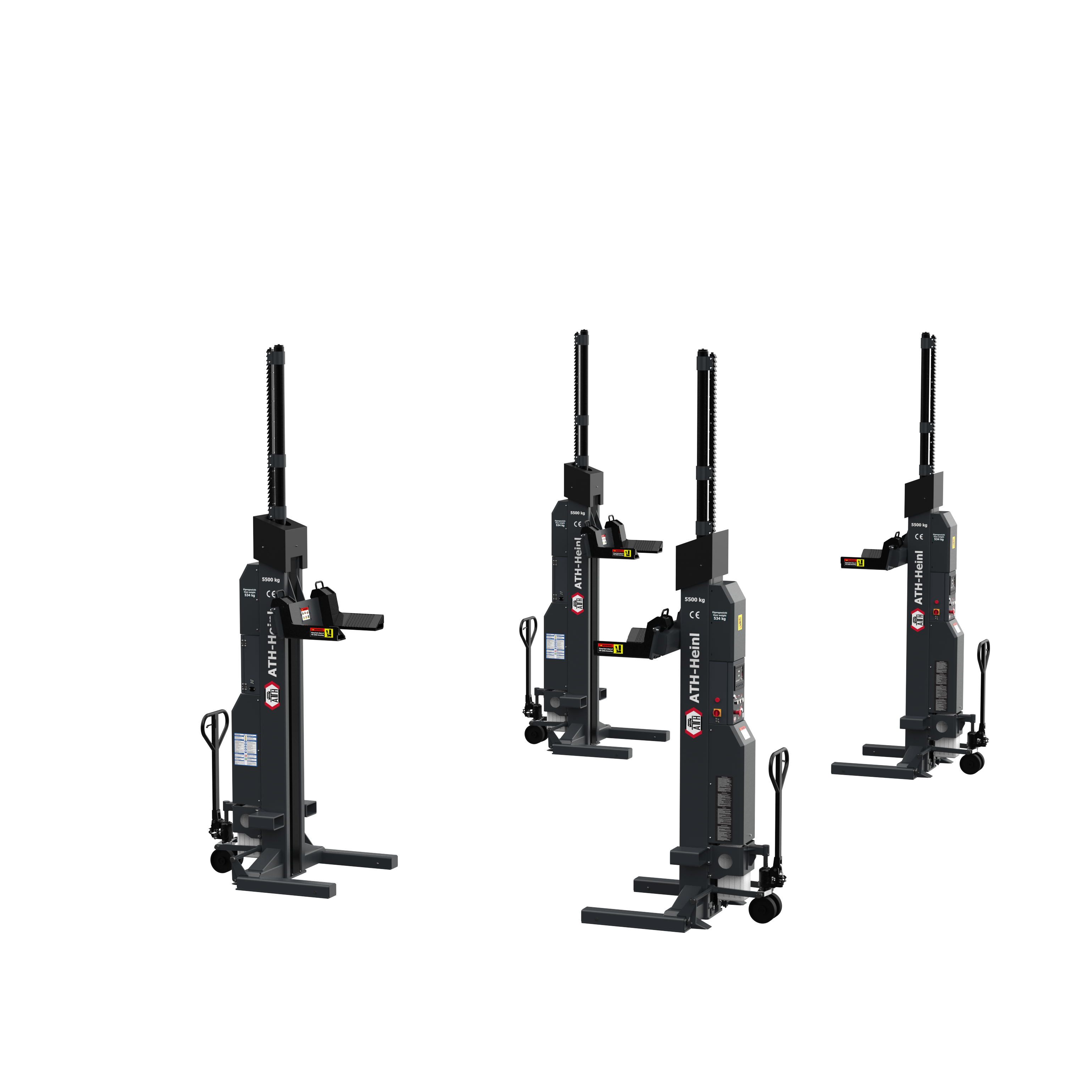

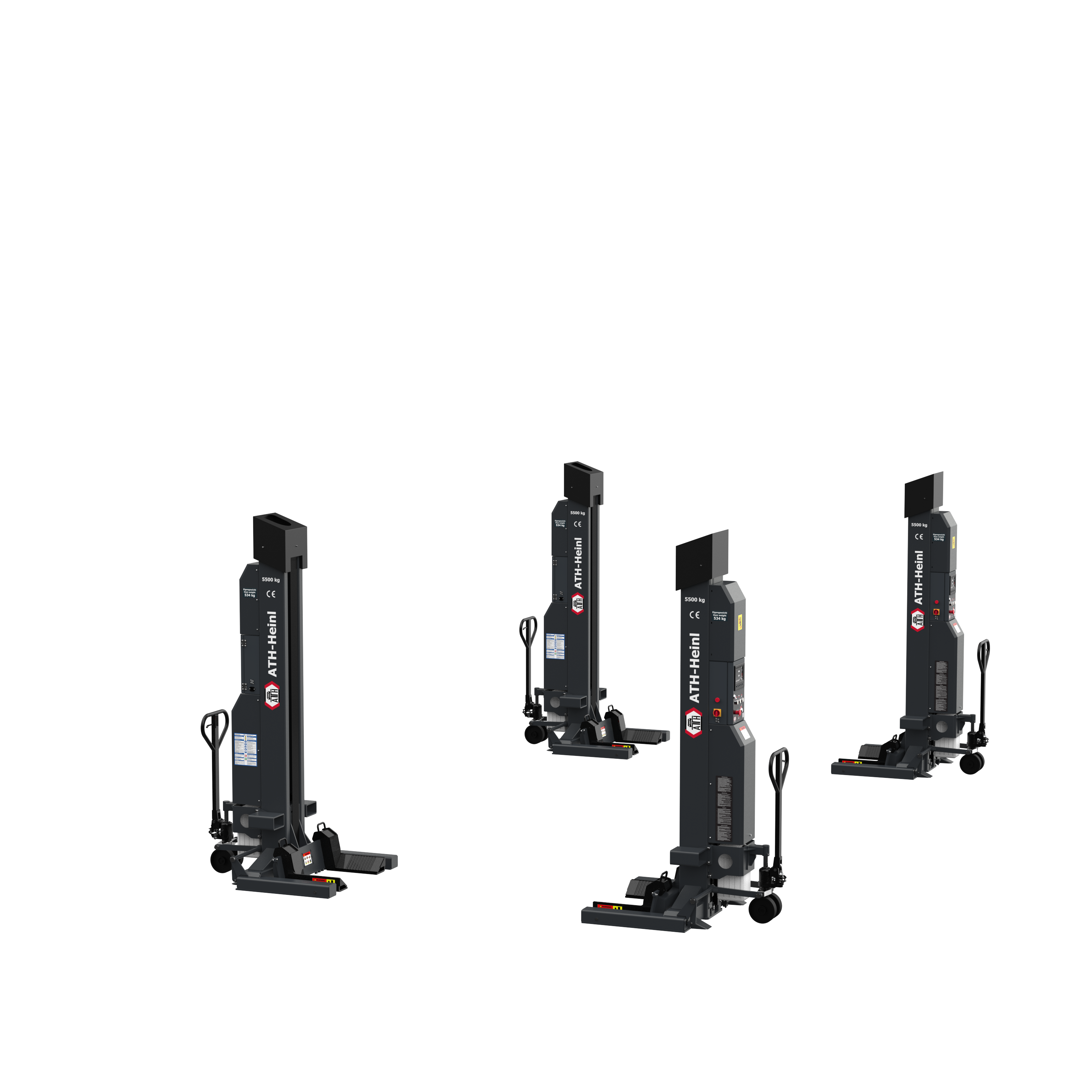

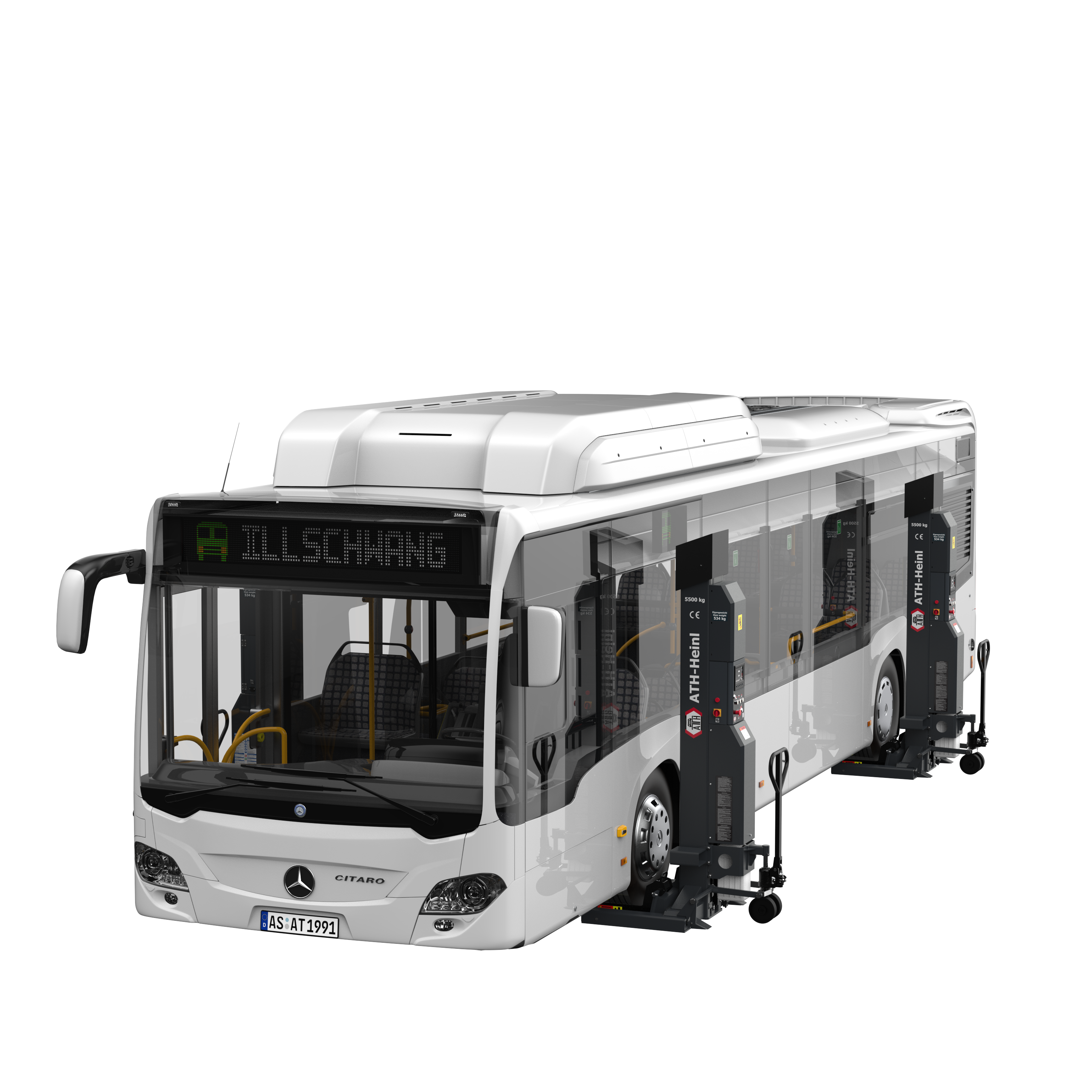

- Electro-hydraulic wheel gripper system with battery operation and wireless control
- Control unit including unit cover on each column for flexible use
- Master unit controls all operating information on each column and an extension up to 16 columns
- Integrated quick charger per column, enables charging during use.
- Mobile kit and forklift attachment on the columns enable a faster change of position
- Safety Control: hydraulic shut-off valve, electronic synchronization monitoring and electromagnetic safety locks
- Safety Lock: ability to lock the load on to the safety mechanism
- Multifunctional mounting via variable wheel fork with individual setting options
| Rated load capacity | 5.500 kg |
|---|---|
| Lifting height max. | 1.850 mm |
| Overall height | 2.750 mm |
| Column width | 1.110mm |
| Driving power | 2,2 kW |
| Lifting/Lowering time | 55s / 45s |
| Power supply voltage | DC 24V |
| Column communication | wireless |
| Concrete strength | min. C20/25 Dicke: 200 mm |
