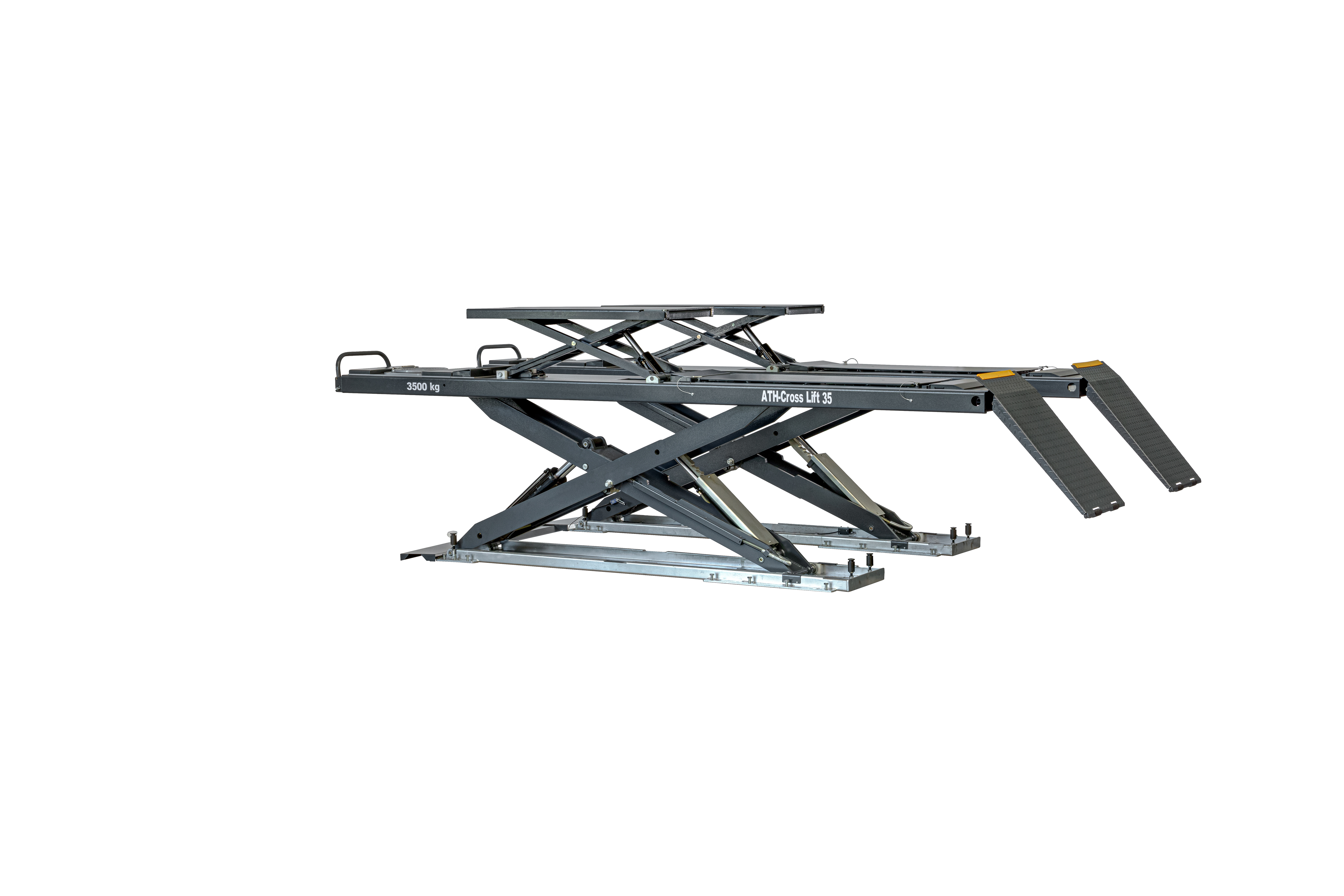

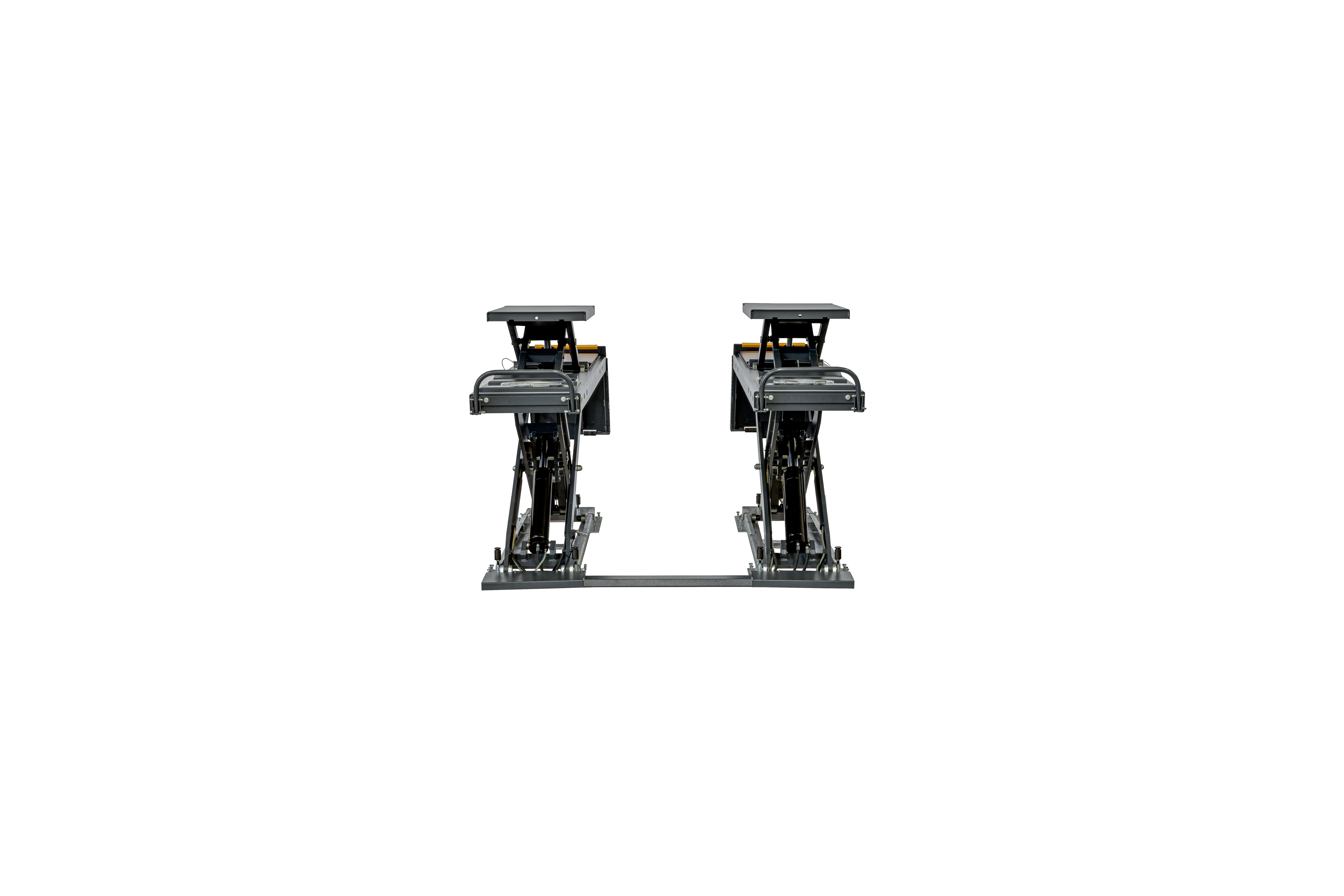

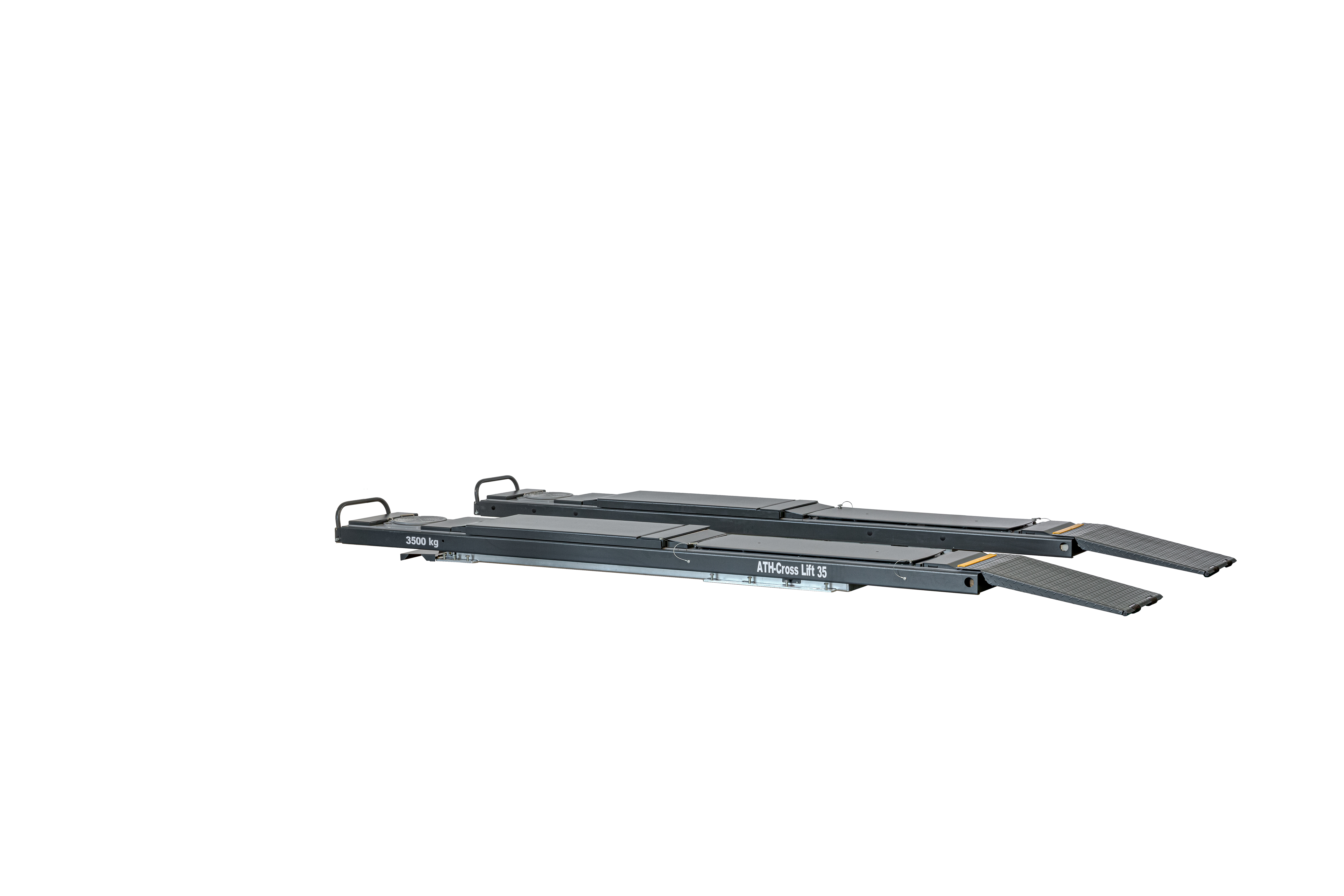

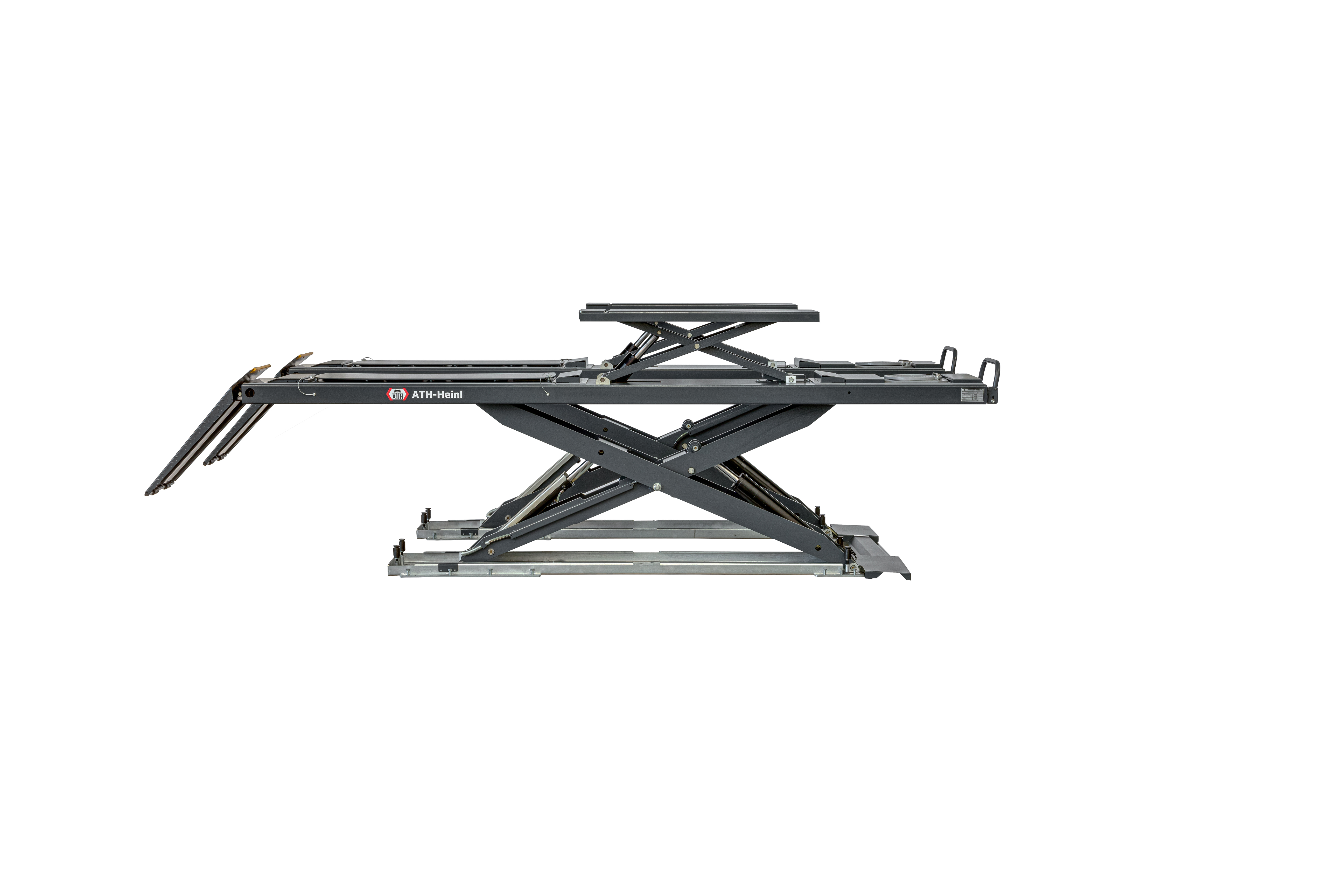

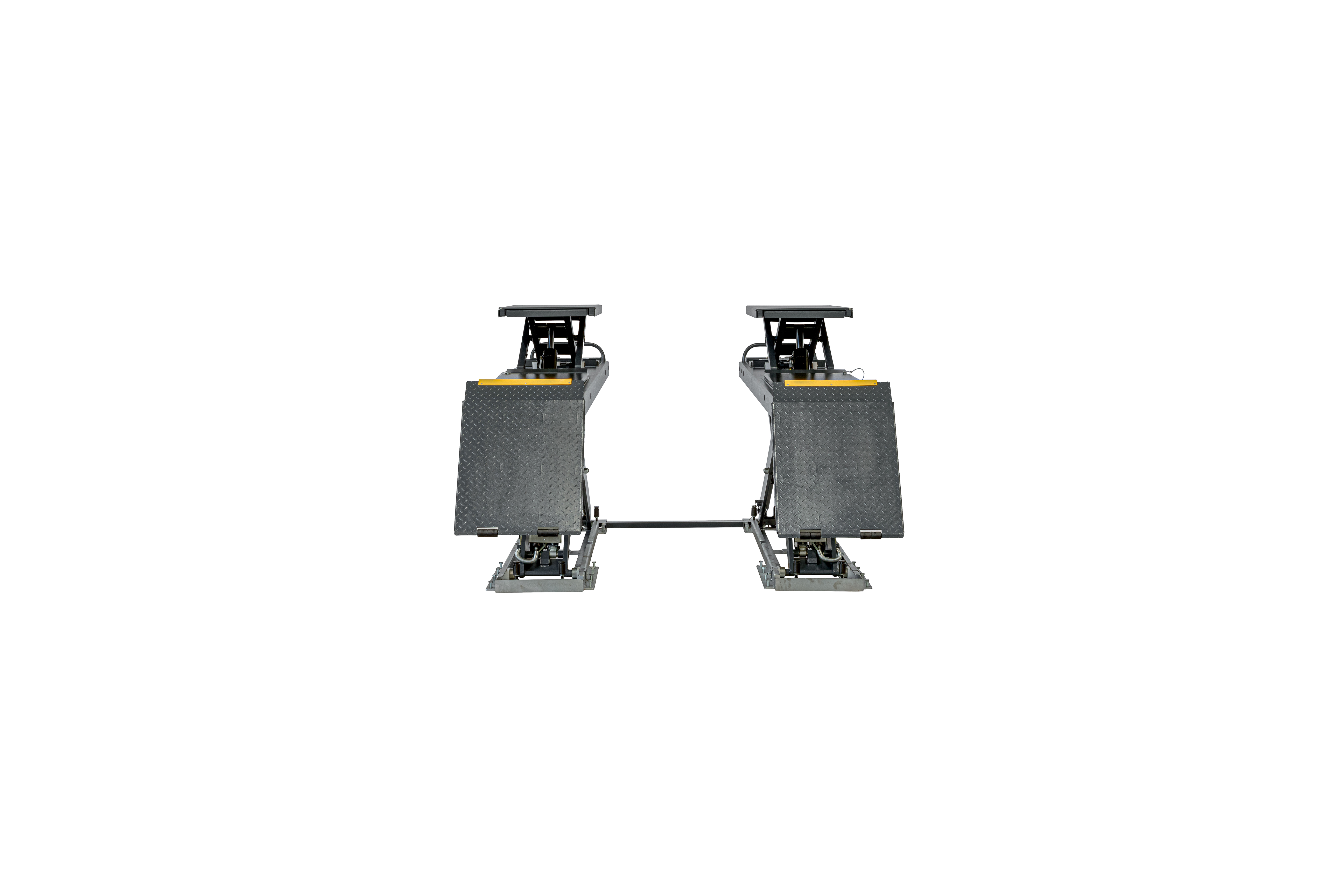

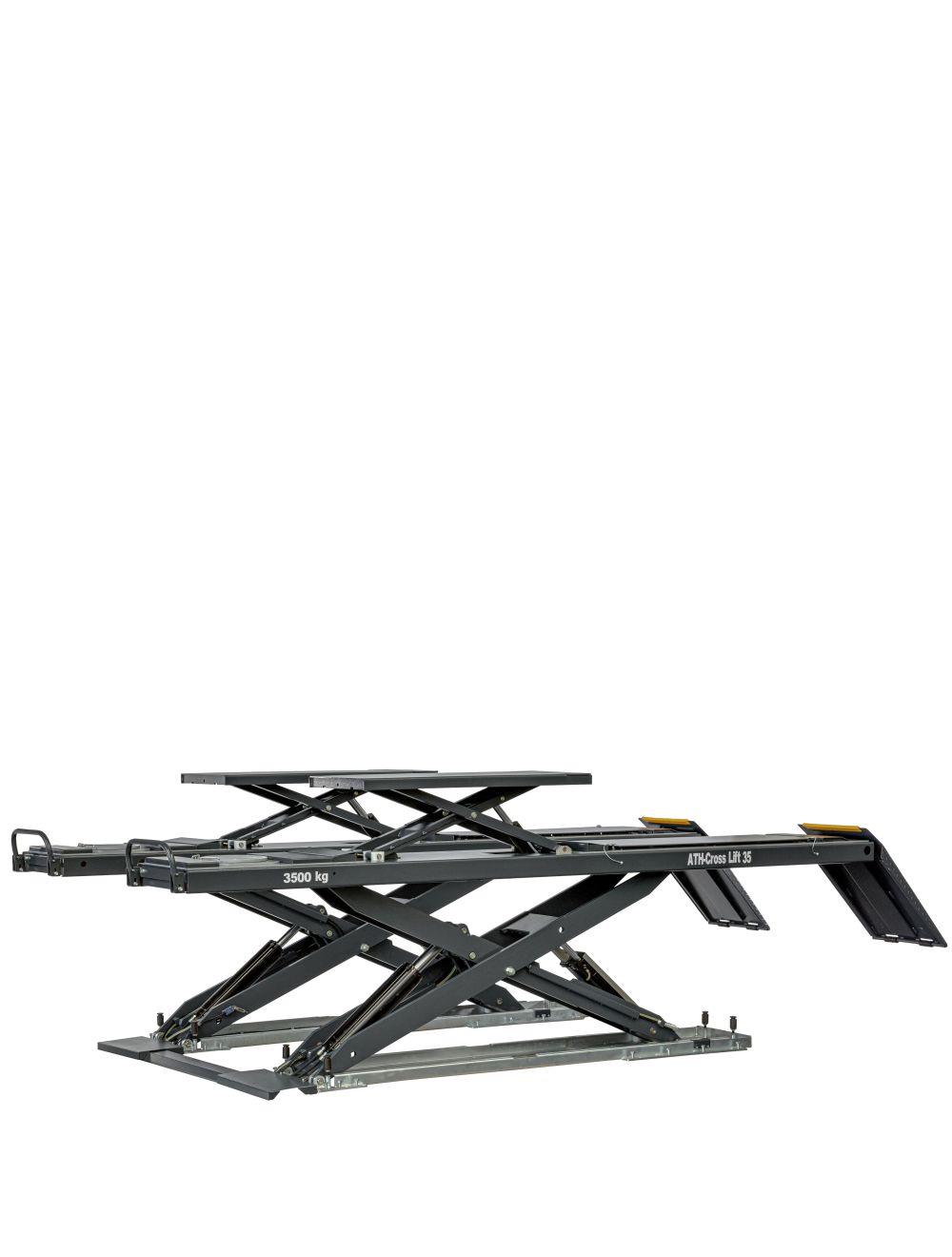

ATH Cross Lift 35 OGA
€12,936.97
plus assembly and freight
€15,394.99
Availability:
In stock
SKU
631020
- High quality and robust scissor lift with hydraulic drive, almost maintenance-free
- Powerful hydraulic unit with load-dependent lowering speed controller
- With wheel-free jack (load capacity: 3.5 t, lifting height: 430 mm), optional wheel alignment kit with cut outs for swivel plates at the front and mechanically lockable swing plates at the rear (incl. at ATH-Cross Lift 35 OGA / UGA)
- Pneumatic unlocking of the safety locks, CE-Stop and lowering acoustic signal
- Emergency lowering system for lowering in the event of a power failure, safety synchronization monitoring via light barrier
- Ideally suited for inspection, repair and test stations for driver assistance systems, optionally for wheel alignment

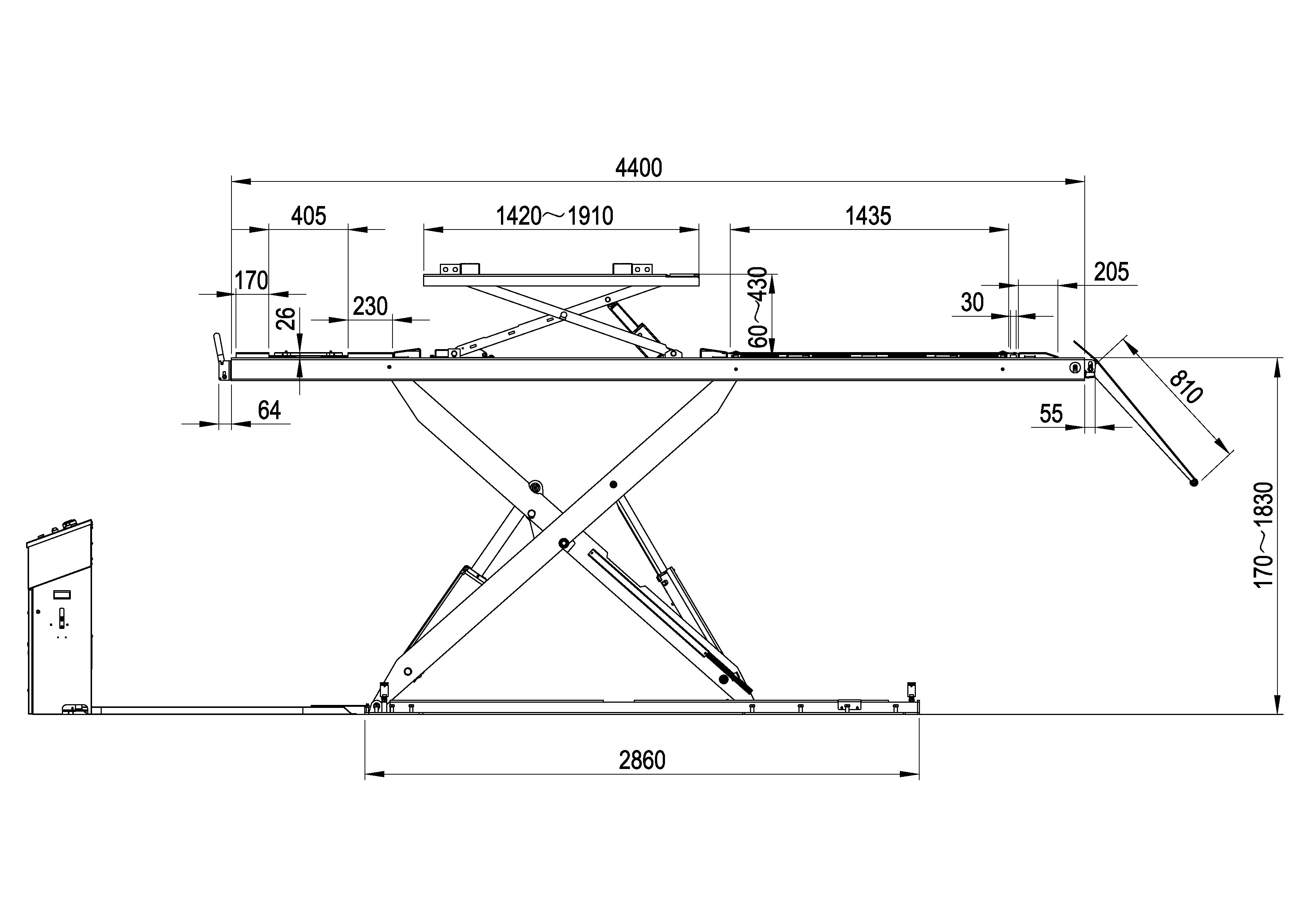

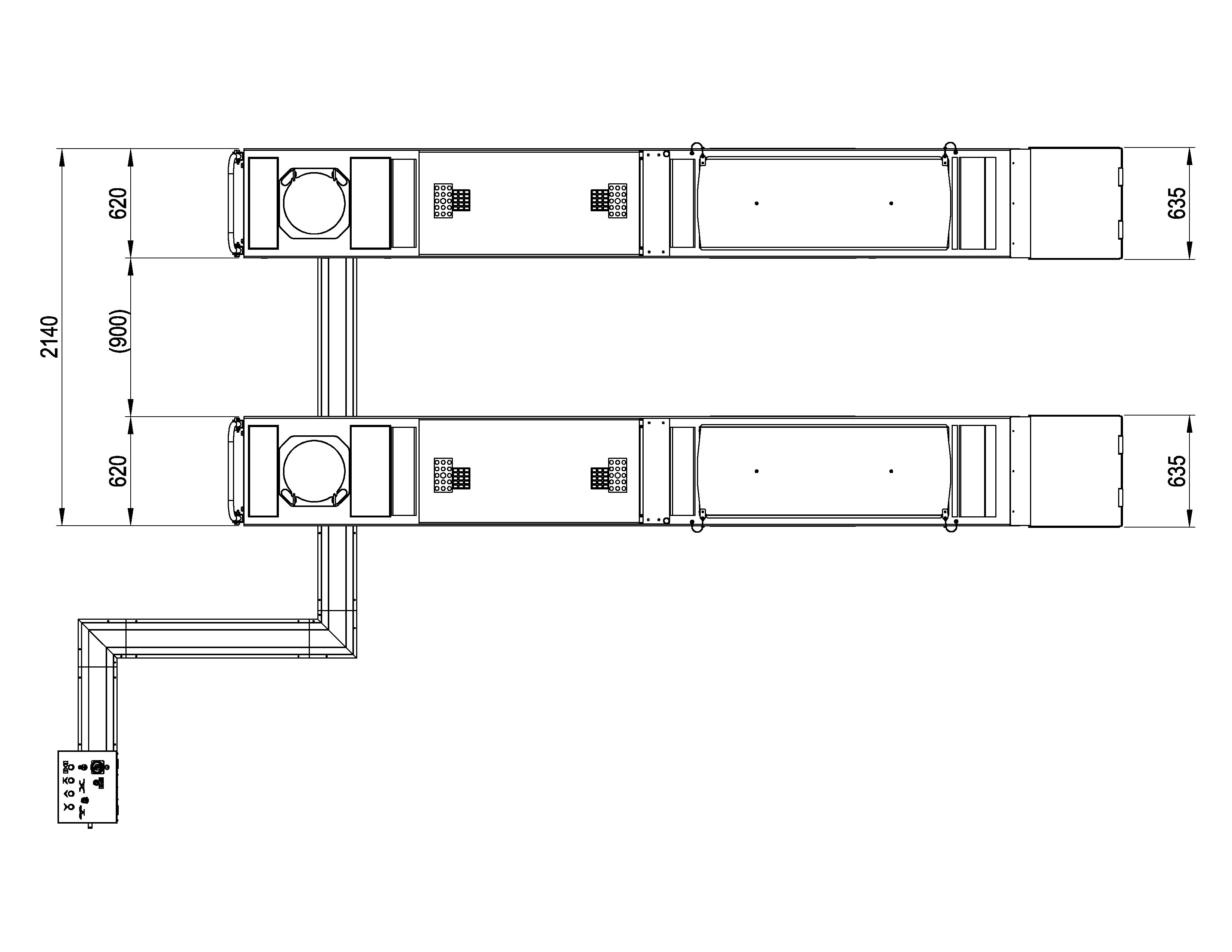

| Color | Anthrazitgrau |
|---|---|
| Rated load capacity | 3.500 kg |
| Lifting height max. | 1.830 mm |
| Drive-on-height | 195 mm |
| Total platform length | 4.400 mm |
| Total platform width | 620 mm |
| Driving power | 5,5 kW |
| Lifting/Lowering time | ca. 40 s / 35 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 6.100 x 3.000 x 200 mm |
