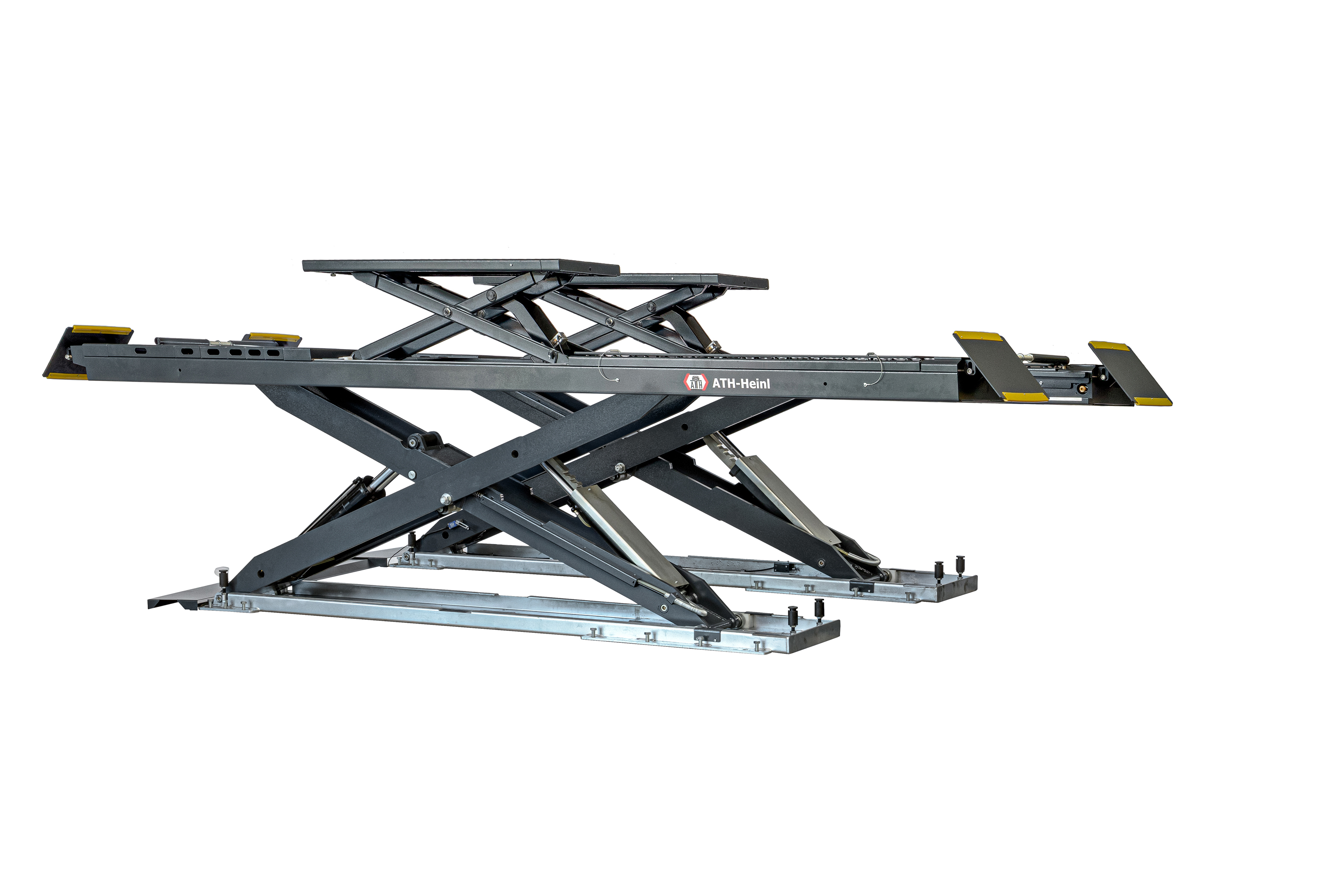

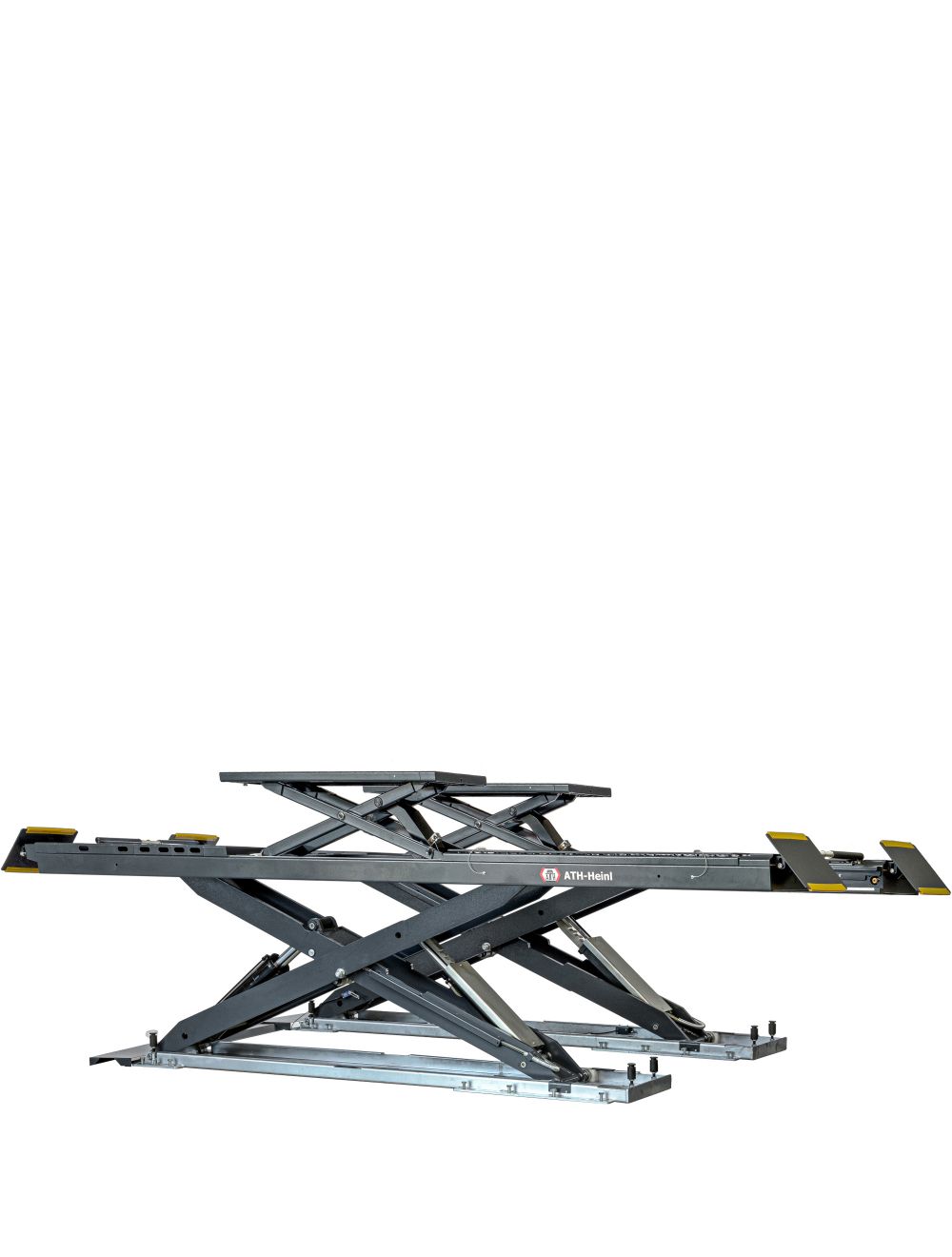

ATH Cross Lift 35 UGA
Underfloor, integrated wheel-free lift,
active platform and wheel alignment kit included
active platform and wheel alignment kit included
€13,777.31
plus assembly and freight
€16,395.00
Availability:
In stock
SKU
631021
- High quality and robust scissor lift with hydraulic drive, almost maintenance-free
- Powerful hydraulic unit with load-dependent lowering speed controller
- With wheel-free jack (load capacity: 3.5 t, lifting height: 430 mm), optional wheel alignment kit with cut outs for swivel plates at the front and mechanically lockable swing plates at the rear (incl. at ATH-Cross Lift 35 OGA / UGA)
- Pneumatic unlocking of the safety locks, CE-Stop and lowering acoustic signal
- Emergency lowering system for lowering in the event of a power failure, safety synchronization monitoring via light barrier
- Ideally suited for inspection, repair and test stations for driver assistance systems, optionally for wheel alignment
| Rated load capacity | 3.500 kg |
|---|---|

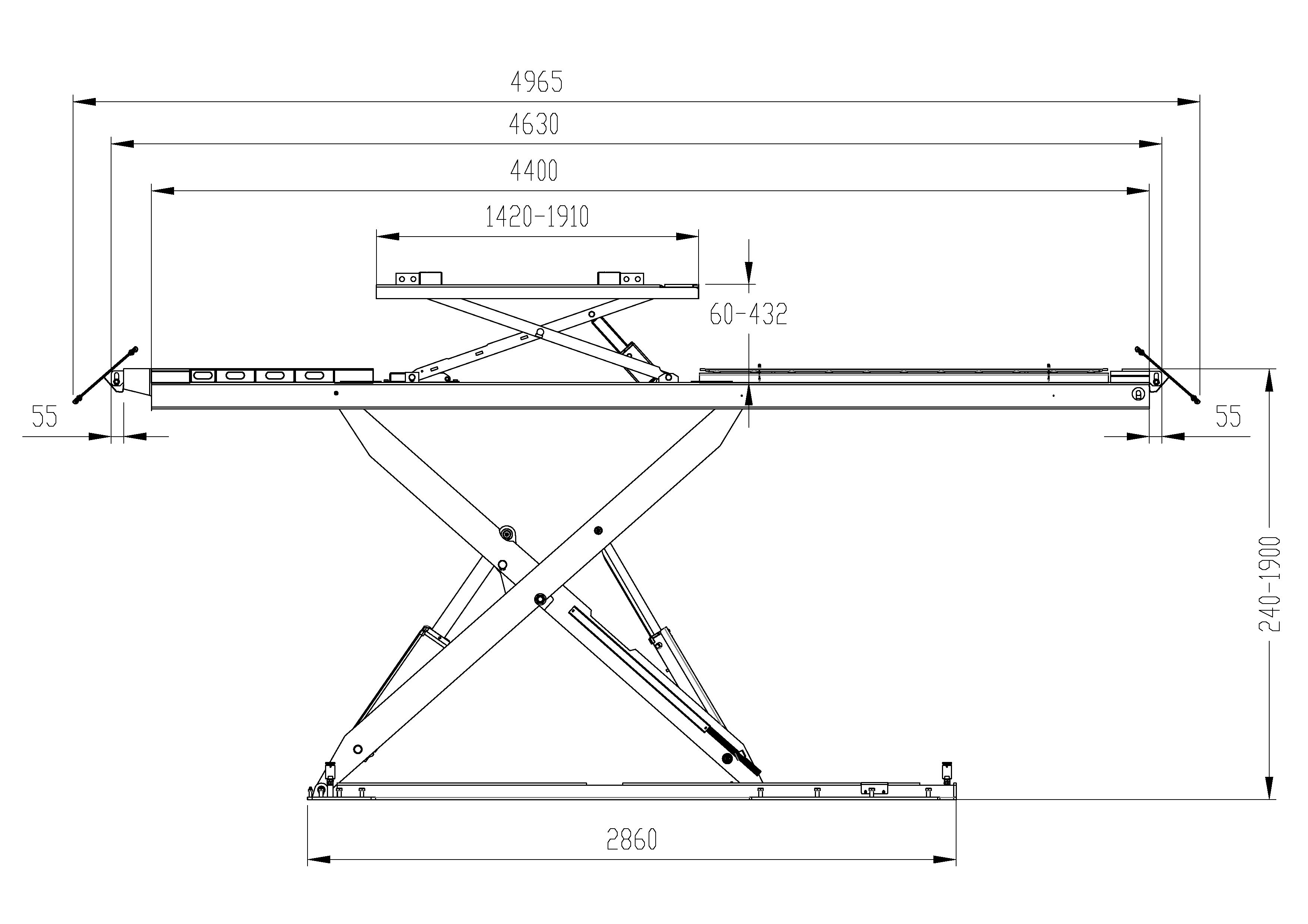

| Lifting height max. | 1.830 mm |

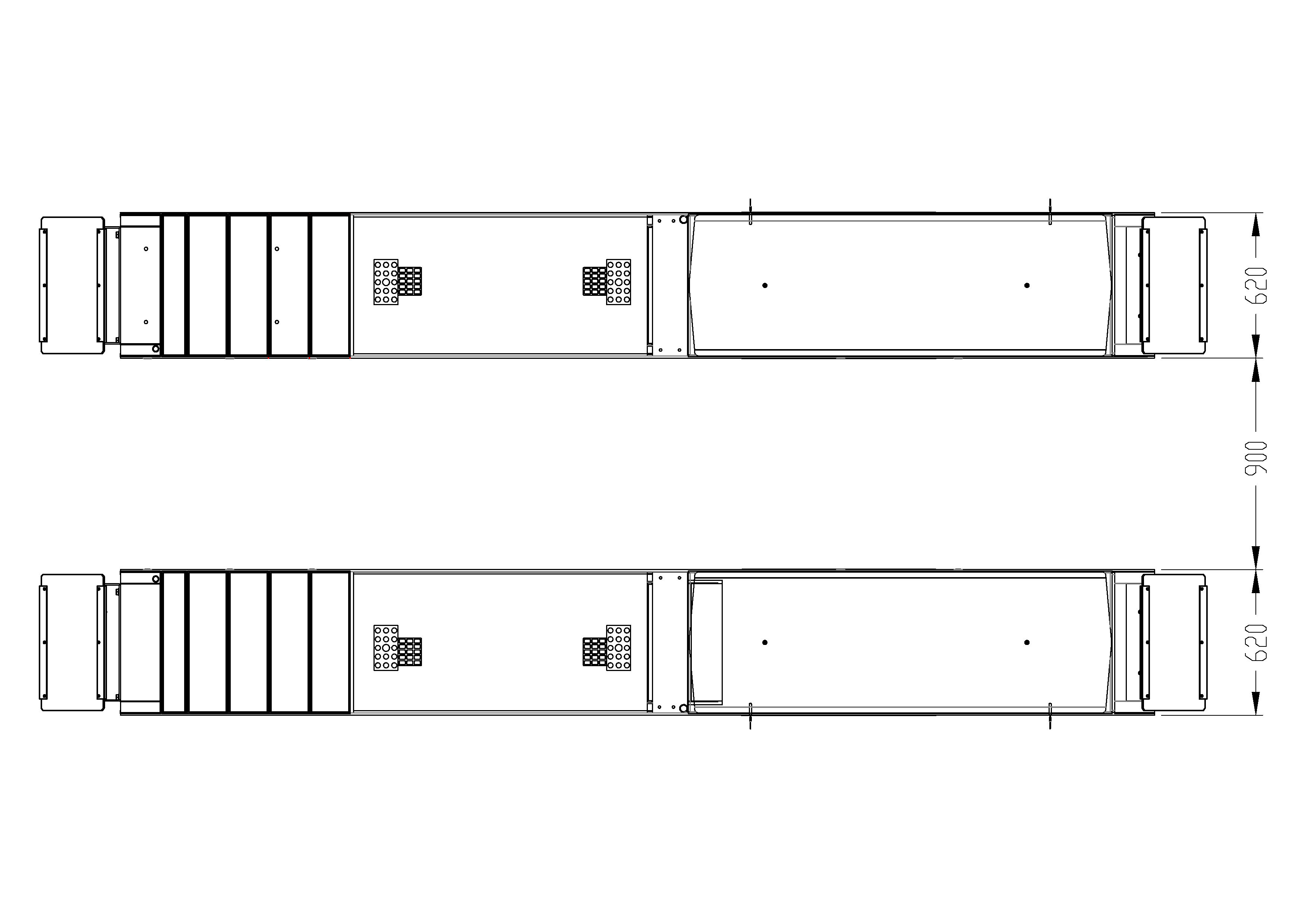

| Total platform length | 4.400 mm |
| Total platform width | 620 mm |
| Driving power | 2,6 kW |
| Lifting/Lowering time | ca. 60 s |
| Power supply voltage | 3x 400V / C16A |
| Concrete strength | min. C20/25 6.100 x 3.000 x 200 mm |
| Installation depth | 245 mm |
